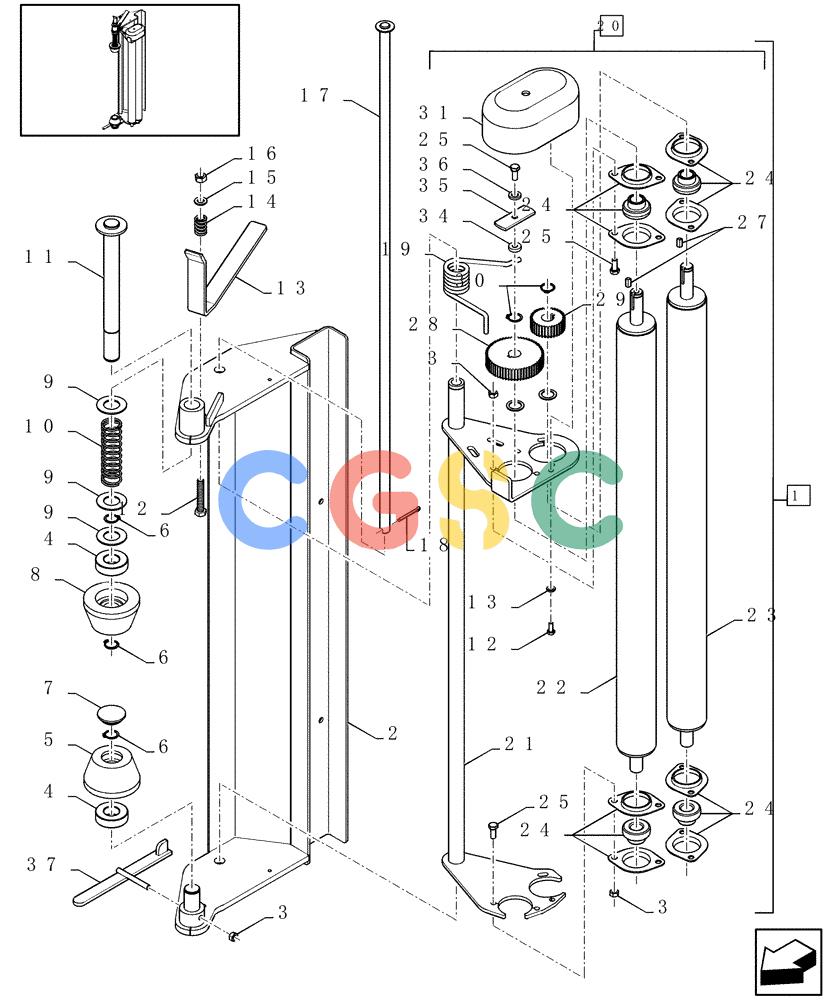

凯斯零件查询(RBX341) - SILAGE PACK ROUND BALER (3/03-12/05) (15.27A[01]) - PRE-STRETCHERS - D652 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
887 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84800215
|
[1] |
KIT
|
PLO
, Serial Range: (2-37)
|
| 2. |
84821227
|
[1] |
FRAME
|
PLO
|
| 3. |
80043442
|
[9] |
NUT,M8 x 1.25, Cl 8
|
ZED
Superseded by part number: 82034883
|
| 4. |
80034439
|
[2] |
BALL BEARING
|
ZED
Superseded by part number: 84188095
|
| 5. |
84821231
|
[1] |
GUIDE
|
PLO
|
| 6. |
80370002
|
[3] |
CIRCLIP
|
ZED
Superseded by part number: 370002
|
| 7. |
84821233
|
[1] |
CAP
|
PLO
|
| 8. |
84821234
|
[1] |
GUIDE
|
PLO
|
| 9. |
86511328
|
[2] |
WASHER,25mm ID x 44mm OD x 4mm Thk
|
NH
|
| 10. |
84821236
|
[1] |
SPRING
|
PLO
|
| 11. |
84821237
|
[1] |
SHAFT
|
PLO
|
| 12. |
80120070
|
[1] |
SCREW
|
ZED
M10x60 Superseded by part number: 120070
|
| 13. |
84821239
|
[1] |
LOCK
|
PLO
|
| 14. |
84821240
|
[1] |
SPRING
|
PLO
|
| 15. |
86511323
|
[2] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 16. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
Superseded by part number: 100037
|
| 17. |
84821243
|
[1] |
PIN
|
PLO
|
| 18. |
80300595
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 10733901
|
| 19. |
84821245
|
[1] |
SPRING
|
PLO
|
| 20. |
84821246
|
[1] |
KIT
|
PLO
(3, 12, 13, Serial Range: 21-36)
|
| 21. |
84823227
|
[1] |
FRAME
|
PLO
|
| 22. |
84823228
|
[1] |
ROLLER
|
PLO
|
| 23. |
84823229
|
[1] |
ROLLER
|
PLO
|
| 24. |
84823230
|
[4] |
FLANGED BEARING
|
PLO
|
| 25. |
120104
|
[8] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 27. |
80038502
|
[2] |
KEY
|
ZED
Superseded by part number: 385002
|
| 28. |
84823234
|
[1] |
GEAR
|
PLO
Z=60
|
| 28. |
84823235
|
[1] |
GEAR
|
PLO
Z=54
|
| 29. |
84823236
|
[1] |
GEAR
|
PLO
Z=35
|
| 29. |
84823237
|
[1] |
GEAR
|
PLO
Z=41
|
| 29. |
84823238
|
[1] |
GEAR
|
PLO
Z=39
|
| 30. |
80370024
|
[2] |
CIRCLIP
|
ZED
Superseded by part number: 370024
|
| 31. |
84823240
|
[1] |
COVER
|
PLO
|
| 32. |
86508568
|
[2] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 33. |
80322357
|
[2] |
LOCK WASHER,Belleville, M6
|
ZED
6MM Superseded by part number: 322357
|
| 34. |
84823243
|
[1] |
BUSHING
|
PLO
|
| 35. |
84823244
|
[1] |
BREAKER
|
PLO
|
| 36. |
80322358
|
[1] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 37. |
84821228
|
[1] |
LOCK
|
PLO
|
