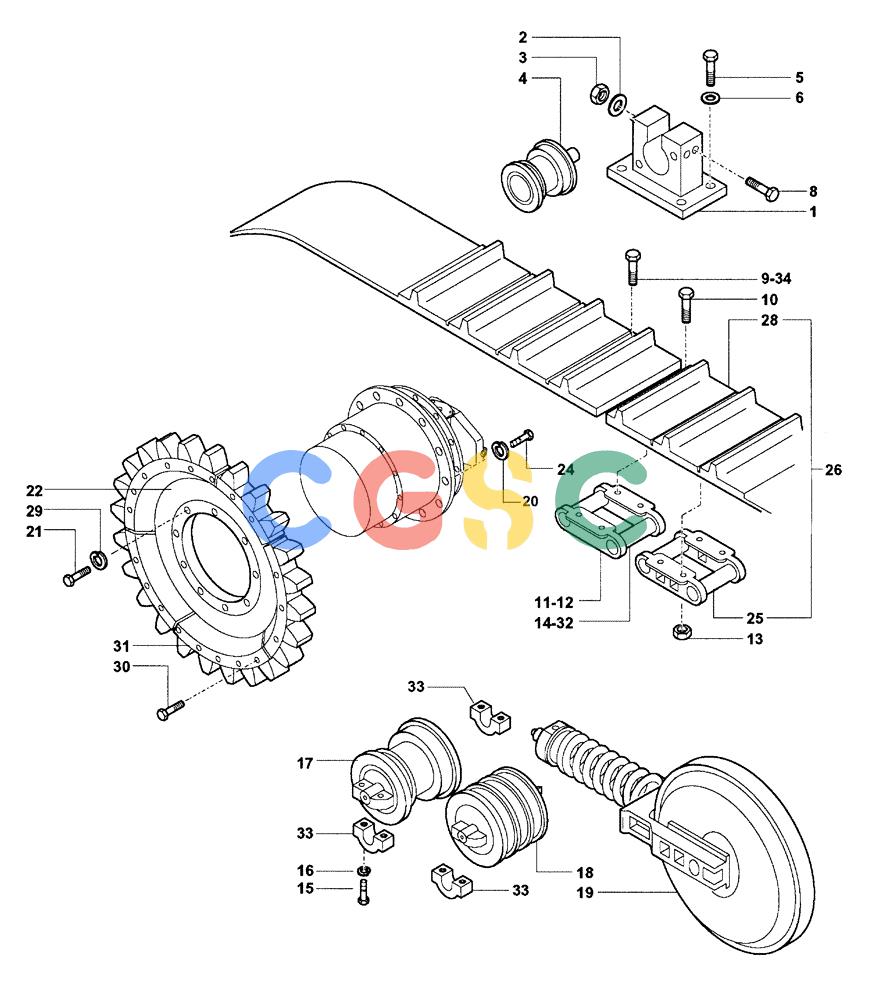

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (4.340[01C]) - SALT CHAIN - SHOES (L=508 MM) DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
134 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76605986 | [2] | SUPPORT | MAC |
| 2. | 76590724 | [4] | WASHER | MAC Superseded by part number: |
| 3. | 76591294 | [4] | NUT | MAC Superseded by part number: 12577411 |
| 4. | 76606043 | [2] | TRACK ROLLER | MAC- SEE FIG. 4.347 (01) FOR PARTS |
| 5. | 76592993 | [8] | SCREW | MAC Superseded by part number: 86509867 |
| 6. | 76598266 | [8] | LOCK WASHER | MAC Superseded by part number: 11194274 |
| 8. | 76605984 | [4] | SCREW | MAC Superseded by part number: 374889 |
| 9. | 76605992 | [2] | SCREW | MAC |
| 10. | 76605993 | [160] | SCREW | MAC |
| 11. | 76606009 | [2] | TRACK LINK | MACMaster; One Side Of Link Only; Use With 76606010 |
| 12. | 76606010 | [2] | TRACK LINK | MACMaster; One Side Of Link Only; Use With 76606009 |
| 13. | 76606011 | [160] | NUT | MAC Superseded by part number: 79004490 |
| 14. | 76606012 | [1] | BUSHING | MAC Superseded by part number: 79082287, 75128977, 75128975, 75128976, 75128974 |
| 15. | 76606939 | [56] | SCREW | MAC Superseded by part number: 86577946 |
| 17. | 76606014 | [8] | TRACK ROLLER | MAC- SEE FIG. 4.345 (01) FOR PARTS |
| 18. | 76606015 | [6] | TRACK ROLLER | MAC- SEE FIG. 4.345 (02) FOR PARTS |
| 19. | 76606016 | [2] | IDLER WHEEL | MAC- SEE FIG. 4.346 (01) FOR PARTS |
| 20. | 76598272 | [44] | LOCK WASHER | MAC |
| 21. | 76606017 | [48] | SCREW | MAC Superseded by part number: 862-20070 |
| 22. | 76606018 | [2] | DRIVING SPROCKET | MAC |
| 24. | 76606019 | [44] | SCREW | MAC |
| 25. | 76606020 | [1] | CHAIN | MAC |
| 26. | 76606021 | [2] | TRACK ASSY | MAC Superseded by part number: 76605992, 76606020, 76606011, 76605993, 76606022, 76606027 |
| 28. | 76606022 | [41] | TRACK SHOE | MAC |
| 29. | 76592916 | [48] | LOCK WASHER | MACLOCK |
| 30. | 76606023 | [40] | SCREW | MAC Superseded by part number: 86508624 |
| 31. | 76606024 | [2] | DRIVING SPROCKET | MACKIT, LH AND RH; (1) KIT INCLUDES 5 SEGMENTS |
| 32. | 76606025 | [41] | PLUG | MAC Superseded by part number: 79082287 |
| 33. | 76606026 | [28] | SUPPORT | MAC |
| 34. | 76606027 | [2] | SCREW | MAC Superseded by part number: 152006025 |
