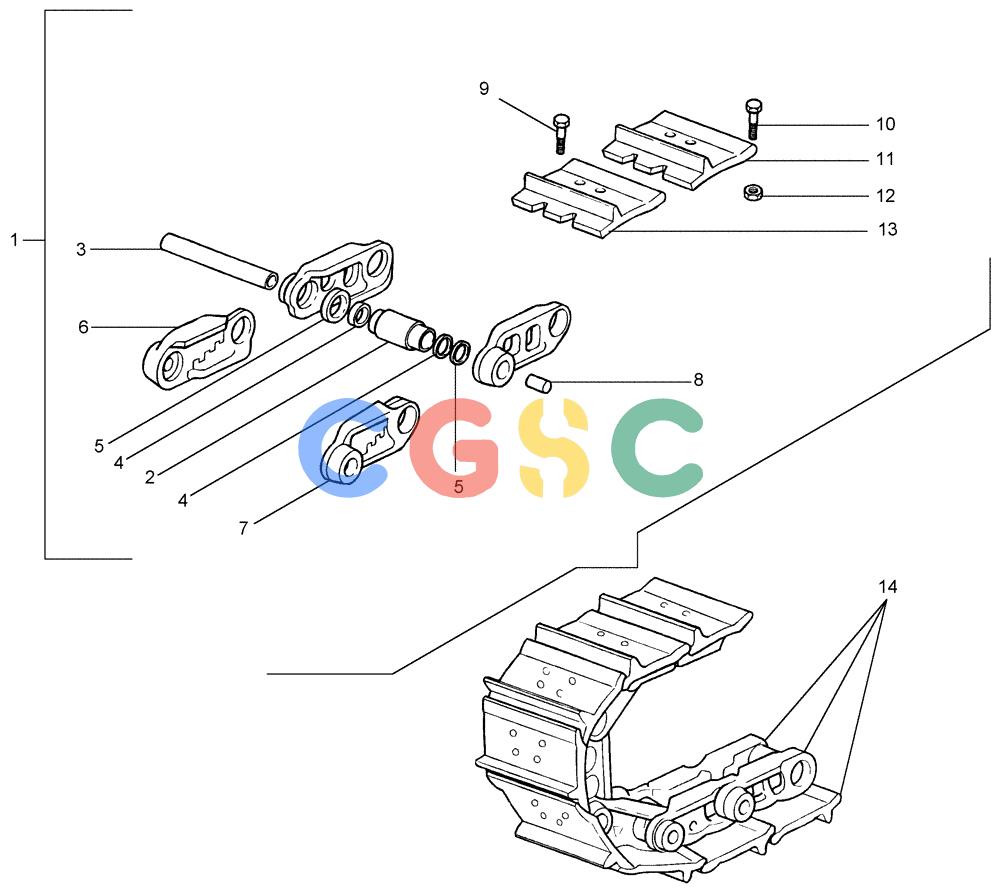

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (4.340[02]) - SALT CHAIN - SHOES (L=508MM) DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
139 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76606020 | [1] | CHAIN | MAC |
| 2. | 75128975 | [1] | BUSHING | NH |
| 3. | 75128974 | [1] | PIN | NH |
| 4. | 75128976 | [1] | SEAL | NH |
| 5. | 75128977 | [1] | SPACER | NH |
| 6. | 76606009 | [1] | TRACK LINK | MAC |
| 7. | 76606010 | [1] | TRACK LINK | MAC |
| 8. | 79082287 | [41] | PLUG | LEC |
| 9. | 76605992 | [2] | SCREW | MACMASTER SHOE |
| 9. | 76606027 | [2] | SCREW | MACMASTER SHOE Superseded by part number: 152006025 |
| 10. | 76605993 | [160] | SCREW | MAC |
| 11. | 76606011 | [160] | NUT | MAC Superseded by part number: 79004490 |
| 13. | 76606022 | [41] | TRACK SHOE | MAC |
| 14. | 76606021 | [1] | TRACK ASSY | MAC Superseded by part number: 76605992, 76606020, 76606011, 76605993, 76606022, 76606027 |
