纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (4.346[01C]) - TRACK IDLER DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
934 次

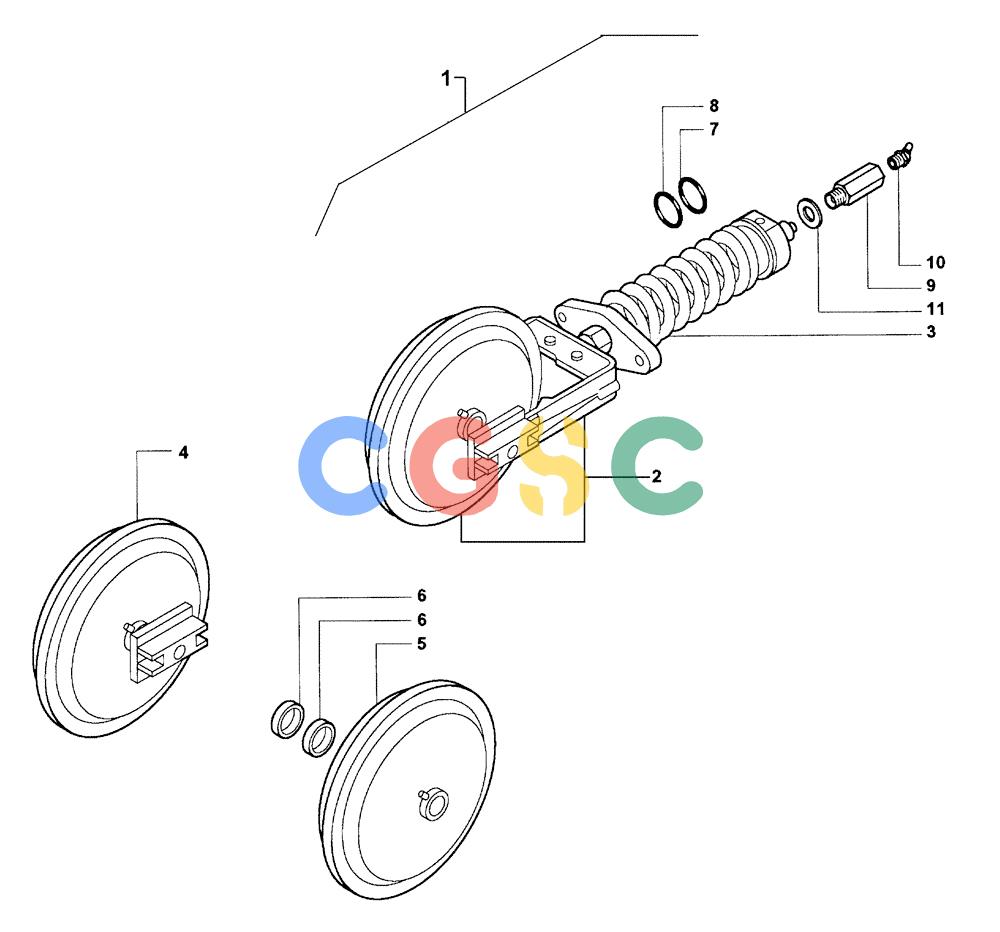

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76606016 | [2] | IDLER WHEEL | MACASSY. - INCLUDES REFS. 2 - 11 EXCEPT 4 & 5. |
| 2. | 76606838 | [1] | IDLER WHEEL | MAC- COMPLETE WITH THE "U" BRACKET |
| 3. | SI300A | [1] | SHOCK ABSORBER | SM |
| 4. | 76606840 | [1] | IDLER WHEEL | MACW/ MOUNTING BRACKET - FOR SERVICING THE WHEEL ONLY |
| 5. | 76606846 | [1] | IDLER WHEEL | MACW/O MOUNTING BRACKET - FOR SERVICING THE WHEEL ONLY |
| 6. | 76590818 | [2] | SEAL KIT | MAC- BUSHING Superseded by part number: 71401161 |
| 7. | 152206016 | [1] | SEAL | BEN Superseded by part number: 151205307 |
| 8. | 45482628 | [1] | SEAL | TOR Superseded by part number: 75224585, 152206015 |
| 9. | 76594911 | [1] | HYDRAULIC VALVE | MAC |
| 10. | 76591112 | [1] | LUBE NIPPLE | MAC |
| 11. | 76593605 | [1] | WASHER | MAC |
