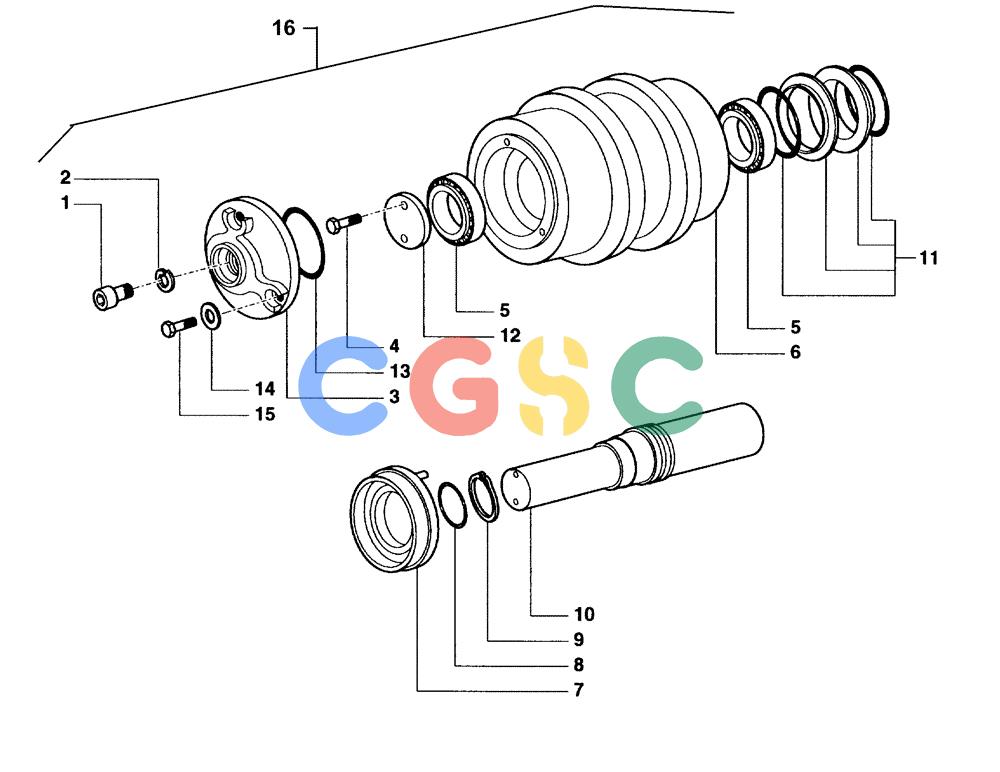

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (4.347[01C]) - TRACK CARRIER ROLLER DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
560 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046539 | [1] | PLUG | LEC Superseded by part number: 70689291 |
| 2. | 76046540 | [1] | SEAL | LEC Superseded by part number: 70923847 |
| 3. | 76606855 | [1] | COVER | MACCOVER |
| 4. | 152106005 | [2] | SCREW | BEN Superseded by part number: 73170095 |
| 5. | 76606857 | [2] | BEARING ASSY | MAC |
| 6. | 76606858 | [1] | ROLLER | MAC |
| 7. | 76606859 | [1] | SUPPORT | MAC |
| 8. | 76596081 | [1] | GASKET | MAC |
| 9. | 152106012 | [1] | RING | BEN |
| 10. | 76606852 | [1] | SHAFT | MAC |
| 11. | 12960695 | [1] | TRACK SHOE | BRE Superseded by part number: 76590811 |
| 12. | 152106007 | [1] | SEALING WASHER | BEN |
| 14. | 76606854 | [3] | LOCK WASHER | MACLOCKWASHER Superseded by part number: 10571873 |
| 15. | 76046533 | [3] | SCREW | LEC Superseded by part number: 76590946 |
| 16. | 76606043 | [2] | TRACK ROLLER | MACASSY. - INCLUDES REFS. 1 - 15 |
| 13. | 14464980 | [1] | O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro | BAS Superseded by part number: 86977781 |
