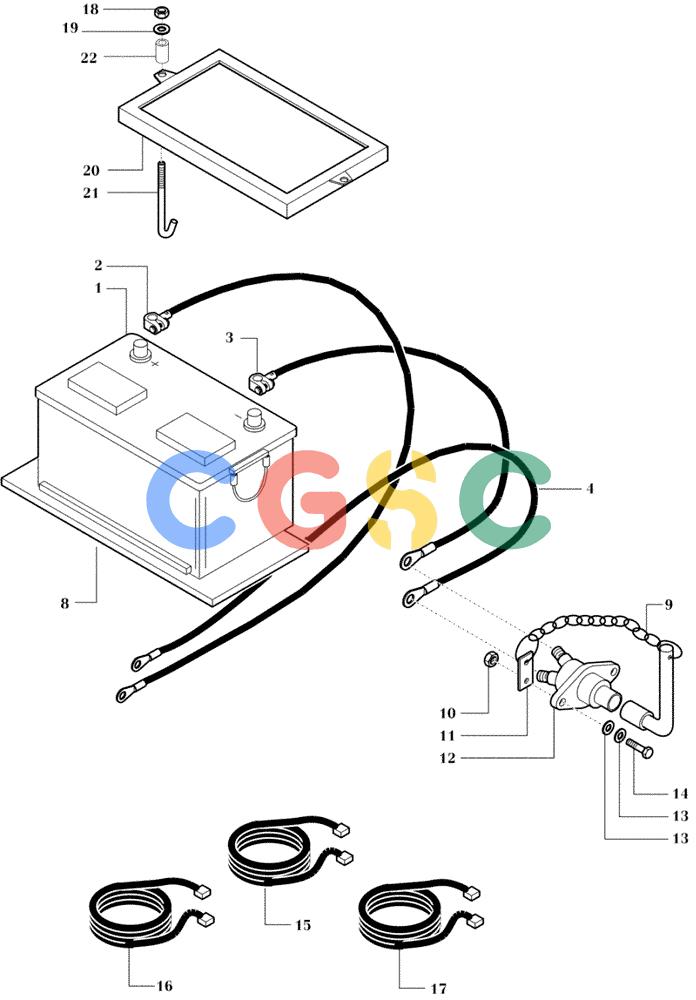

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (6.701[01G]) - BATTERY - SEAT AND SUPPORT (DC100 STD. S/N 13110034 TO 13111229; LGP S/N 13115007 TO 13115068) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
373 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76593320 | [1] | DRY BATTERY | MAC Superseded by part number: F925DSW |
| 2. | 76593321 | [1] | CABLE | MACELECTRIC |
| 3. | 76593322 | [1] | CABLE | MACELECTRIC Superseded by part number: 5111023 |
| 4. | 76593323 | [1] | CABLE | MACELECTRIC |
| 8. | 76593324 | [1] | SEAL | MAC |
| 9. | 76593325 | [1] | LINK CHAIN | MAC |
| 10. | 76590934 | [2] | NUT | MACLOCK Superseded by part number: 12574221 |
| 11. | 76593326 | [1] | BRACKET | MAC |
| 12. | 76593327 | [1] | FAN SWITCH | MAC- MASTER DISCONNECT |
| 13. | 76590873 | [4] | WASHER | MAC Superseded by part number: 10519404 |
| 14. | 76593328 | [2] | SCREW | MAC Superseded by part number: 86977786 |
| 15. | 76593329 | [1] | WIRE HARNESS | MACWIRING HARNESS |
| 16. | 76598296 | [1] | CABLE | MACWIRING HARNESS |
| 17. | 76606038 | [1] | CABLE | MACWIRING HARNESS |
| 17. | 76609704 | [1] | CABLE | MAC; WIRING HARNESS |
| 18. | 76590848 | [2] | NUT | MAC Superseded by part number: 15503611 |
| 19. | 76590713 | [2] | WASHER | MAC Superseded by part number: 14496621 |
| 20. | 76593053 | [1] | FRAME | MAC |
| 21. | 76593332 | [2] | TIE-ROD | MAC |
| 22. | 76609703 | [2] | SPACER | MAC |
