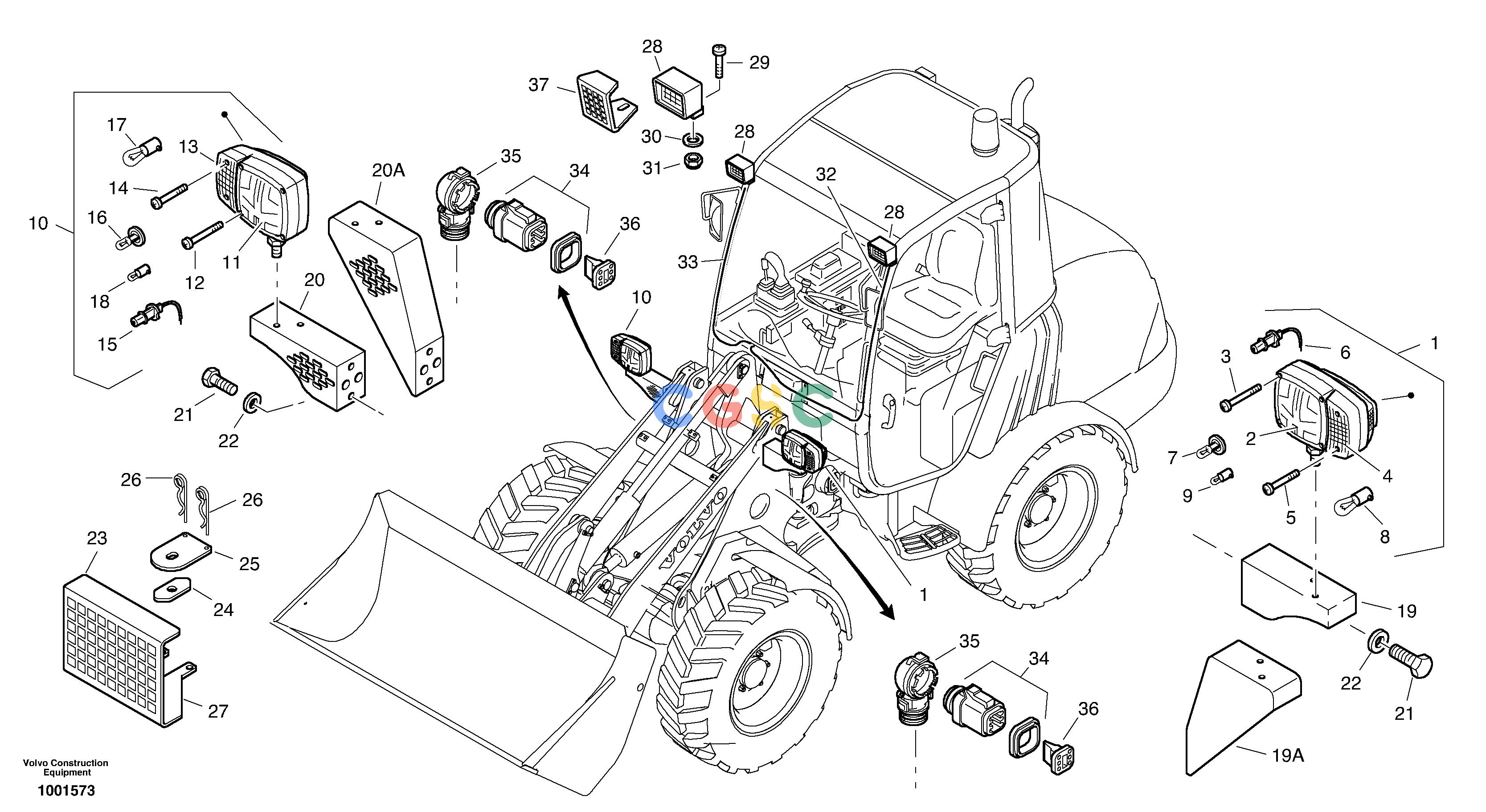

沃尔沃零件查询L25B Lighting, frontTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
766 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11881088
|
[1] |
Headlamp
|
|
| 2. |
ZM2907234
|
[1] |
Scattering disc
|
|
| 3. |
ZM2907236
|
[4] |
Screw
|
|
| 4. |
ZM2907237
|
[1] |
Direction indicator, glas
|
|
| 5. |
VOE11988201
|
[2] |
Screw
|
|
| 6. |
ZM2907240
|
[1] |
Bulb
|
H7 12V 55W
|
| 7. |
ZM7050432
|
[1] |
Bulb
|
H3 12V 55W
|
| 8. |
ZM7057477
|
[1] |
Bulb
|
P21W 12V
|
| 9. |
ZM7057461
|
[1] |
Bulb
|
T4W 12V
|
| 10. |
VOE11882263
|
[1] |
Headlamp
|
|
| 11. |
ZM2907234
|
[1] |
Scattering disc
|
|
| 12. |
ZM2907234
|
[4] |
Scattering disc
|
|
| 13. |
ZM2907237
|
[1] |
Direction indicator, glas
|
|
| 14. |
VOE11988201
|
[2] |
Screw
|
|
| 15. |
ZM2907240
|
[1] |
Bulb
|
H7 12V 55W
|
| 16. |
ZM7050432
|
[1] |
Bulb
|
H3 12V 55W
|
| 17. |
ZM7057477
|
[1] |
Bulb
|
P21W 12V
|
| 18. |
ZM7057461
|
[1] |
Bulb
|
T4W 12V
|
| 19. |
VOE15209714
|
[1] |
Lantern bracket
|
|
| 19A. |
VOE11306325
|
[1] |
Lantern bracket
|
|
| 20. |
VOE15209711
|
[1] |
Lantern bracket
|
|
| 20A. |
VOE11306326
|
[1] |
Lantern bracket
|
|
| 21. |
VOE997434
|
[4] |
Hexagon screw
|
|
| 22. |
VOE976945
|
[4] |
Washer
|
|
| 23. |
ZM2815904
|
[2] |
Protective grill
|
|
| 24. |
ZM2815905
|
[2] |
Centering washer
|
|
| 25. |
ZM2815906
|
[2] |
Top plate
|
|
| 26. |
VOE11305165
|
[4] |
Retaining pin
|
|
| 27. |
VOE11305166
|
[REQ] |
Velcro fastener
|
|
| 28. |
VOE11039847
|
[2] |
Work lamp
|
|
| 29. |
ZM8096530
|
[2] |
Screw
|
|
| 30. |
VOE13955894
|
[2] |
Washer
|
|
| 31. |
ZM5241125
|
[2] |
Nut
|
|
| 32. |
VOE11305444
|
[1] |
Wiring harness
|
|
| 33. |
VOE11305445
|
[1] |
Electrical Cable
|
|
| 34. |
VOE11305819
|
[2] |
Connector
|
|
| 35. |
VOE11305820
|
[2] |
Adapter
|
|
| 36. |
VOE11305821
|
[2] |
Wedge
|
|
| 37. |
VOE11305758
|
[2] |
Ptct Grating
|
|
