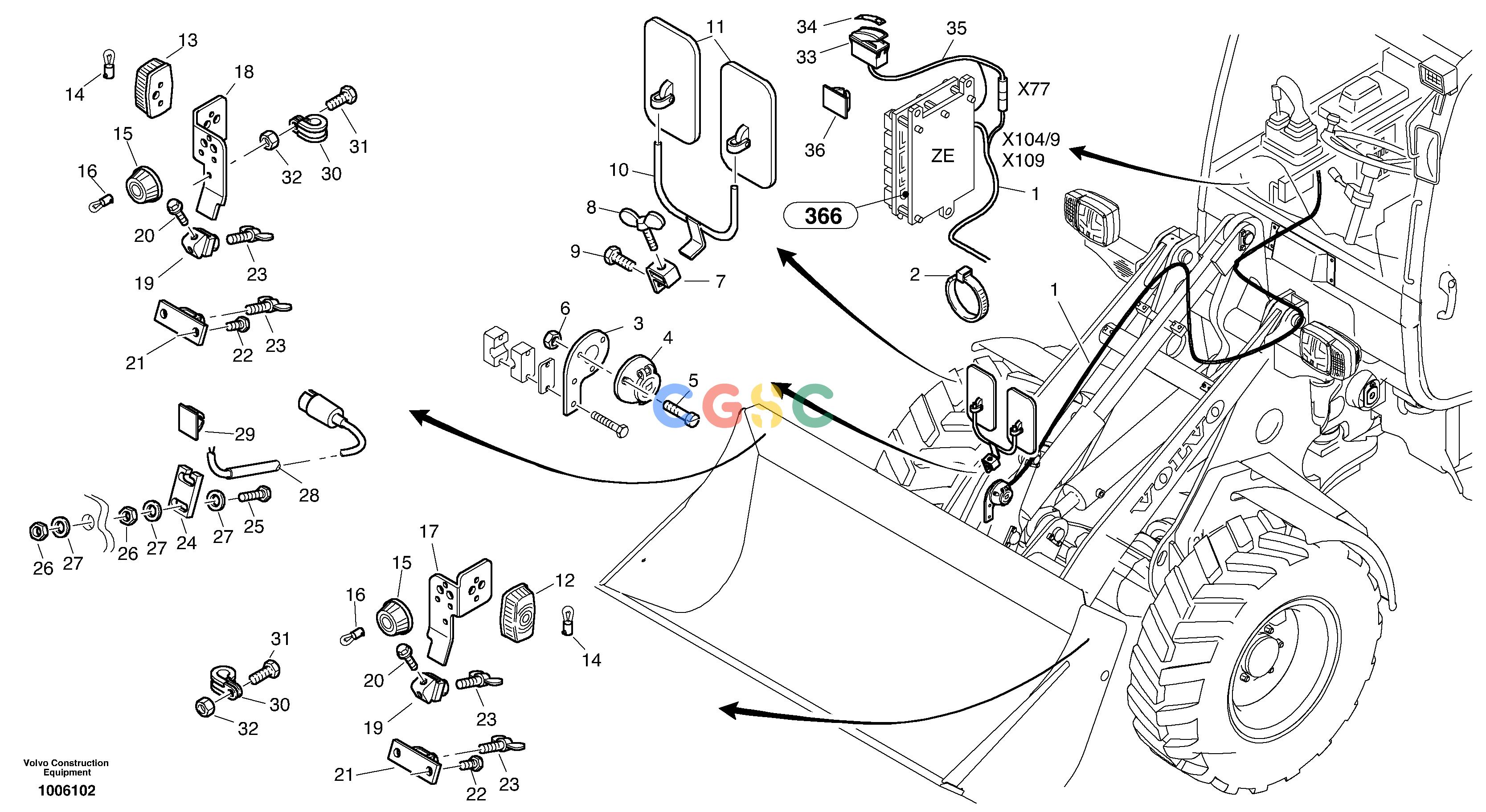

沃尔沃零件查询L25B Additional lighting - SwissTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
524 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11306181
|
[1] |
Electrical cable
|
|
| 2. |
VOE14016673
|
[20] |
Strip clamp
|
|
| 3. |
VOE11305855
|
[1] |
Retainer
|
|
| 4. |
VOE11305874
|
[1] |
Socket
|
|
| 5. |
VOE969410
|
[3] |
Six point socket screw
|
|
| 6. |
VOE955780
|
[3] |
Hexagon nut
|
|
| 7. |
ZM2800978
|
[1] |
Retainer
|
|
| 8. |
VOE11305892
|
[1] |
Wing screw
|
M10x25
|
| 9. |
VOE983251
|
[1] |
Hexagon screw
|
M10x25
|
| 10. |
VOE11305893
|
[1] |
Mirror arm
|
|
| 11. |
VOE11305894
|
[2] |
Mirror
|
|
| 12. |
VOE11305937
|
[1] |
Flash light, left-hand
|
|
| 13. |
VOE11305938
|
[1] |
Flash light, right-hand
|
|
| 14. |
VOE965826
|
[2] |
Bulb
|
|
| 15. |
VOE11305939
|
[2] |
Side marker lamp
|
|
| 16. |
VOE965831
|
[2] |
Bulb
|
|
| 17. |
ZM2805168
|
[1] |
Holder, left
|
|
| 18. |
ZM2805167
|
[1] |
Holder, right
|
|
| 19. |
VOE11305924
|
[2] |
Retainer
|
|
| 20. |
VOE946471
|
[4] |
Flange screw
|
|
| 21. |
ZM2815671
|
[2] |
Holder
|
|
| 22. |
VOE983251
|
[4] |
Hexagon screw
|
M10x25
|
| 23. |
VOE11305892
|
[2] |
Wing screw
|
M10x25
|
| 24. |
ZM2805175
|
[1] |
Holder
|
|
| 25. |
VOE983244
|
[1] |
Hexagon screw
|
M8x30
|
| 26. |
VOE955782
|
[2] |
Hexagon nut
|
|
| 27. |
VOE13955894
|
[3] |
Washer
|
|
| 28. |
ZM2815668
|
[1] |
Electric wire
|
|
| 29. |
VOE11305436
|
[7] |
Clip
|
|
| 30. |
VOE952626
|
[4] |
Clamp
|
|
| 31. |
VOE955246
|
[2] |
Hexagon screw
|
M5x16
|
| 32. |
VOE955780
|
[2] |
Hexagon nut
|
|
| 33. |
VOE11882865
|
[1] |
Rocker Switch
|
|
| 34. |
VOE11306192
|
[1] |
Symbol
|
|
| 35. |
VOE11306177
|
[1] |
Electric cable
|
|
| 36. |
VOE14016673
|
[1] |
Strip clamp
|
|
