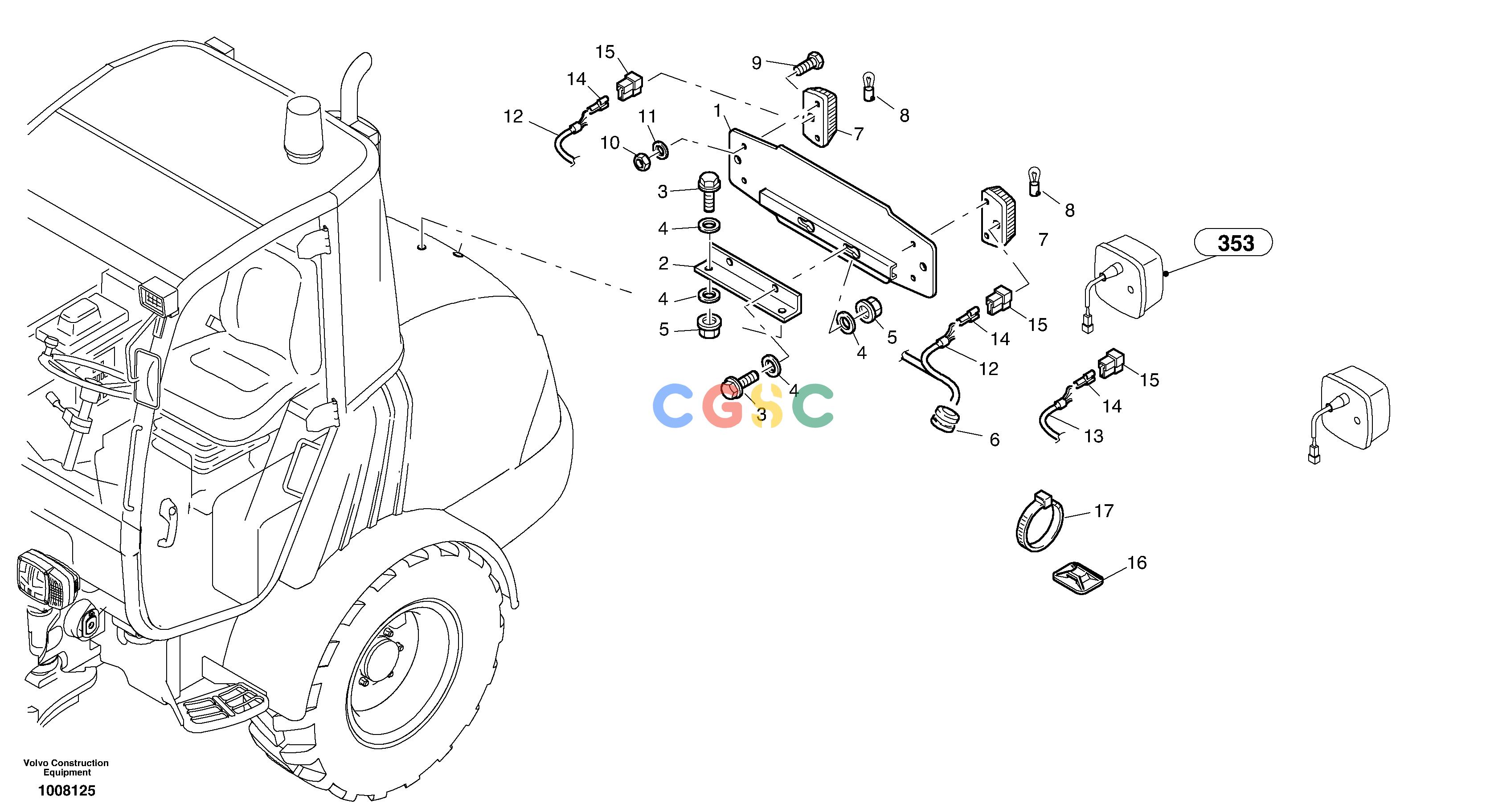

沃尔沃零件查询L25B Number plate illuminationTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813307
|
[1] |
Holder
|
|
| 2. |
VOE11306465
|
[1] |
Angle Iron
|
|
| 3. |
VOE13946173
|
[4] |
Screw
|
M8x20
|
| 4. |
VOE13955894
|
[8] |
Washer
|
|
| 5. |
VOE948645
|
[4] |
Flange lock nut
|
M8
|
| 6. |
VOE961955
|
[1] |
Grommet
|
|
| 7. |
VOE11147756
|
[2] |
Sign lamp
|
|
| 8. |
VOE946777
|
[2] |
Bulb
|
|
| 9. |
VOE955228
|
[4] |
Hexagon screw
|
M4x16
|
| 10. |
VOE955779
|
[4] |
Hexagon nut
|
M4
|
| 11. |
VOE955891
|
[4] |
Plain washer
|
|
| 12. |
ZM2813310
|
[1] |
Electric wire
|
|
| 13. |
VOE11306466
|
[1] |
Electric cable
|
|
| 14. |
VOE11306164
|
[6] |
Cable terminal
|
|
| 15. |
VOE943511
|
[2] |
Housing
|
|
| 16. |
VOE11305436
|
[6] |
Clip
|
|
| 17. |
VOE14016673
|
[4] |
Strip clamp
|
|
