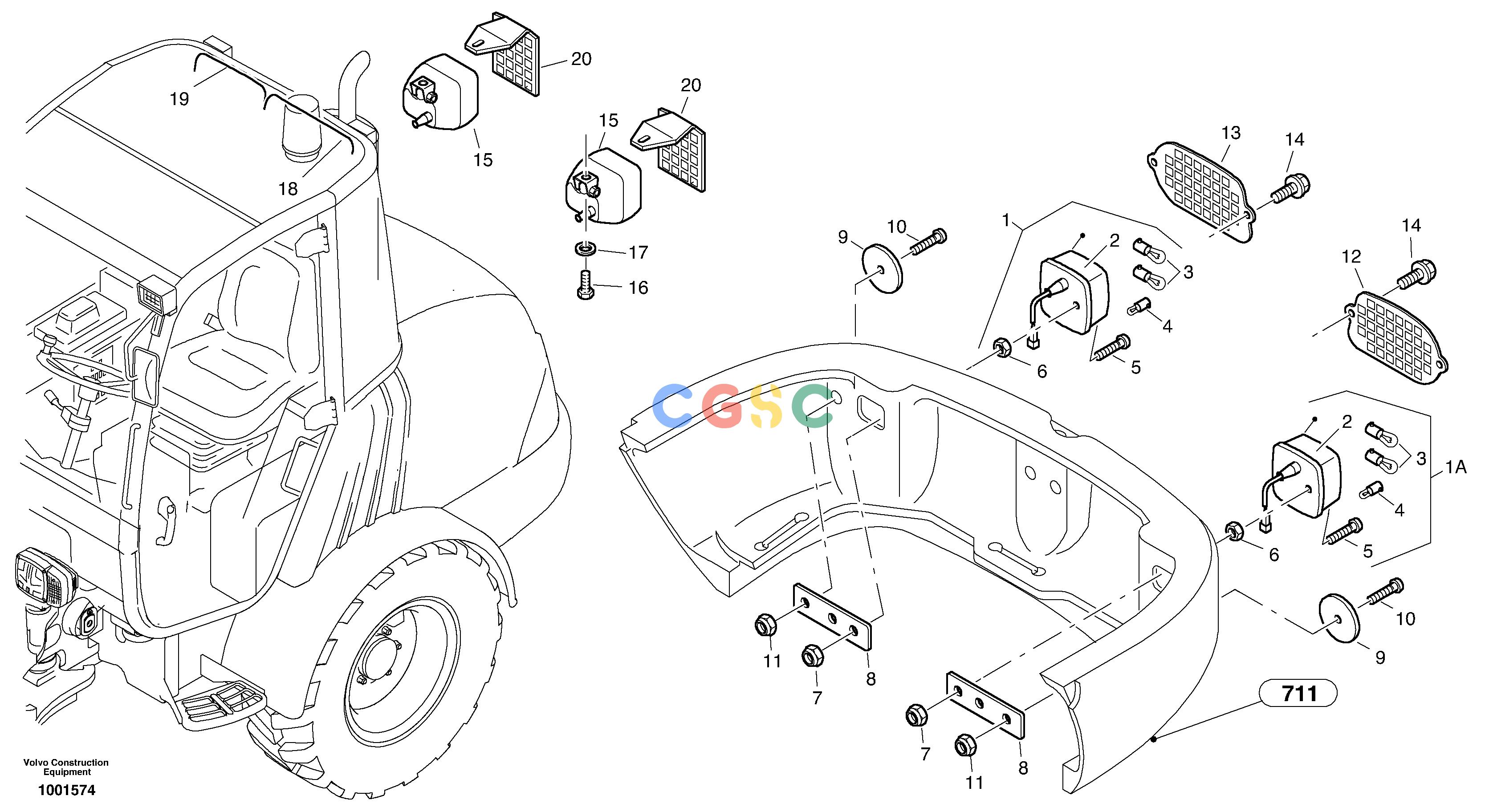

沃尔沃零件查询L25B Lighting, rearTYPE 175 SER NO - 0499 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
223 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11305071
|
[1] |
Tail lamp
|
|
| 1A. |
VOE11305586
|
[1] |
Tail lamp
|
|
| 2. |
ZM2289665
|
[1] |
Lens
|
|
| 3. |
ZM7057477
|
[2] |
Bulb
|
|
| 4. |
VOE946777
|
[1] |
Bulb
|
|
| 5. |
VOE969589
|
[2] |
Six point socket screw
|
|
| 6. |
VOE993868
|
[2] |
Hexagon nut
|
|
| 7. |
VOE13963105
|
[4] |
Lock nut
|
|
| 8. |
VOE11305110
|
[2] |
Clamping plate
|
|
| 9. |
VOE11305064
|
[2] |
Reflector
|
|
| 10. |
VOE13965178
|
[2] |
Screw
|
|
| 11. |
VOE13963105
|
[2] |
Lock nut
|
|
| 12. |
VOE11305179
|
[1] |
Ptct Grating
|
|
| 13. |
VOE11305180
|
[1] |
Ptct Grating
|
|
| 14. |
VOE946440
|
[4] |
Flange screw
|
|
| 15. |
VOE11039856
|
[2] |
Work lamp
|
|
| 16. |
ZM8096530
|
[2] |
Screw
|
|
| 17. |
VOE13955894
|
[2] |
Washer
|
|
| 18. |
VOE11305441
|
[1] |
Electrical Cable
|
|
| 19. |
VOE11305442
|
[1] |
Electrical Cable
|
|
| 20. |
ZM2816861
|
[2] |
Protection
|
|
