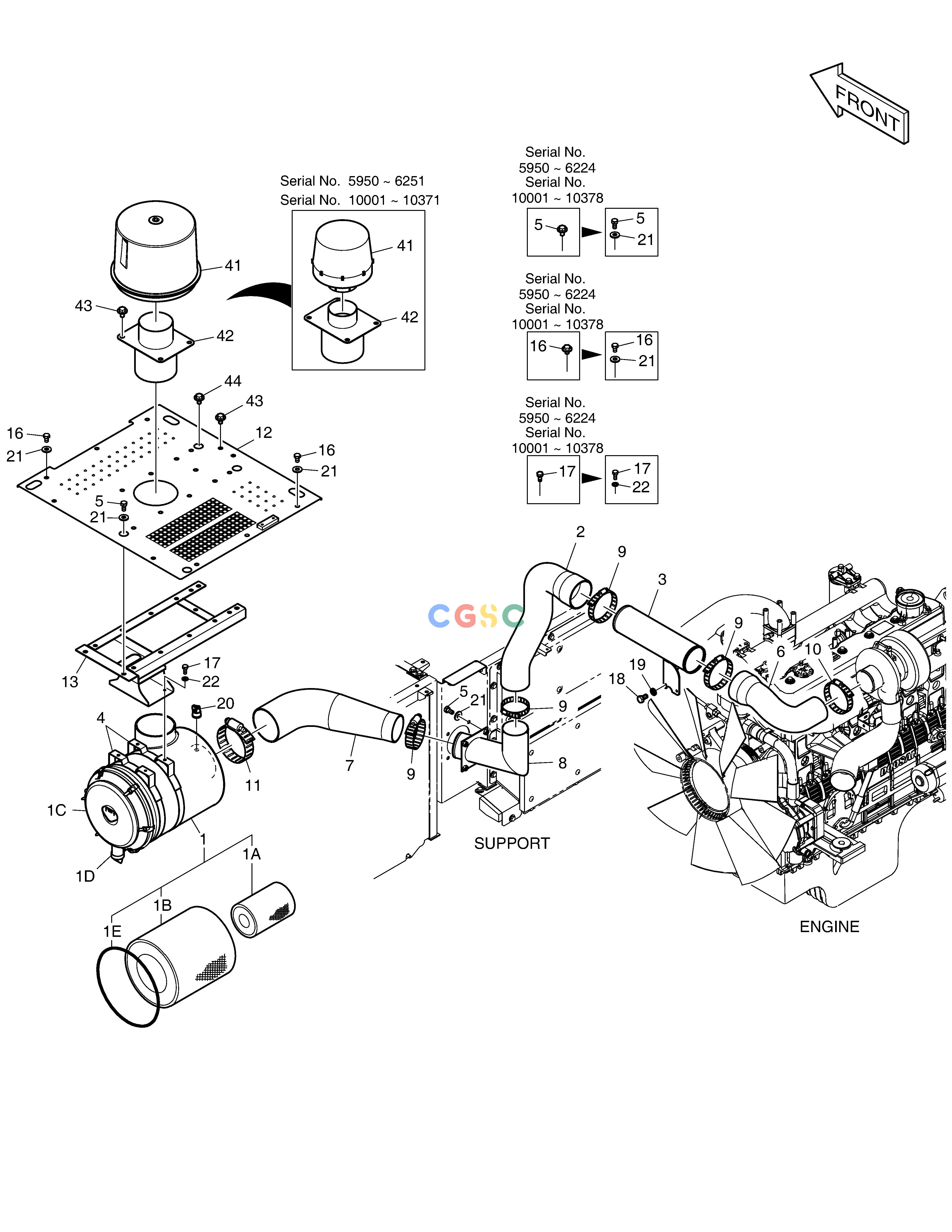

斗山零件查询AIR CLEANER DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
901 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400414-00131
|
[-] |
|
|
| 1. |
204-00066
|
[1] |
AIR CLEANER
|
|
| 10. |
S8510118
|
[1] |
CLAMP
|
|
| 11. |
S8510168
|
[1] |
CLAMP;HOSE
|
|
| 12. |
110508-00219A
|
[1] |
|
|
| 13. |
110958-00780
|
[1] |
|
|
| 16. |
S0514866
|
[10] |
BOLT
|
|
| 16. |
DS0025022
|
[10] |
BOLT
|
|
| 17. |
S0512066
|
[4] |
. BOLT
|
|
| 17. |
DS0025024
|
[4] |
BOLT
|
|
| 18. |
S0511866
|
[2] |
BOLT
|
|
| 19. |
S5102603
|
[2] |
. WASHER
|
|
| 1A. |
474-00037
|
[1] |
ELEMENT;INNER
|
|
| 1B. |
474-00038
|
[1] |
ELEMENT;OUTER
|
|
| 1C. |
204-00069
|
[1] |
COVER
|
|
| 1D. |
204-00070
|
[1] |
VALVE
|
|
| 1E. |
204-00071
|
[1] |
RING,O
|
|
| 2. |
420101-00343
|
[1] |
|
|
| 20. |
800217-00100
|
[1] |
INDICATOR,DUST
|
|
| 21. |
120804-00079
|
[18] |
WASHER
|
|
| 22. |
120804-00076
|
[4] |
WASHER
|
|
| 3. |
420202-00166
|
[1] |
|
|
| 4. |
124-00297A
|
[2] |
BAND
|
|
| 41. |
400415-00043
|
[1] |
|
|
| 41. |
K1043471
|
[1] |
PRE CLEANER
|
|
| 42. |
420202-00449
|
[1] |
|
|
| 42. |
K1006040A
|
[1] |
PIPE
|
|
| 43. |
DS0025025
|
[9] |
BOLT
|
|
| 44. |
DS0025022
|
[2] |
BOLT
|
|
| 5. |
DS0025015
|
[8] |
BOLT
|
|
| 5. |
S0515066
|
[8] |
BOLT
|
|
| 6. |
185-00249
|
[1] |
HOSE;AIR
|
|
| 7. |
K1005119
|
[1] |
HOSE;AIR
|
|
| 8. |
420202-00186
|
[1] |
|
|
| 9. |
S8510143
|
[4] |
CLAMP
|
|
