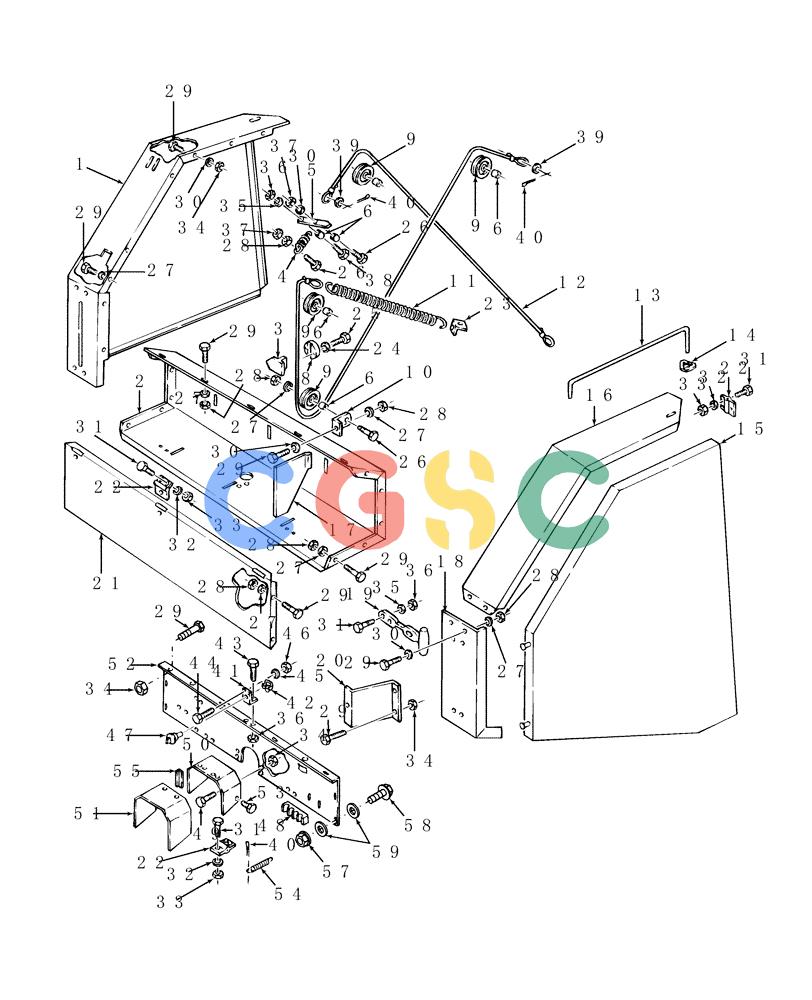

| 1. |
86618988
|
[1] |
SHIELD
|
NH
RH Superseded by part number: 87030662
|
| 2. |
86618990
|
[1] |
GUARD ASSY.
|
NH
|
| 3. |
9612212
|
[1] |
INDICATOR
|
NH
|
| 4. |
86509849
|
[1] |
SPRING
|
NH
Superseded by part number: 18
|
| 5. |
86628104
|
[1] |
PLATE
|
NH
Indicator
|
| 6. |
696365
|
[6] |
SPACER
|
NH
|
| 7. |
9612213
|
[1] |
CABLE
|
NH
|
| 8. |
9619090
|
[1] |
CAP COVER
|
NH
|
| 9. |
510932
|
[4] |
PULLEY,50.01mm OD
|
NH
|
| 10. |
689986
|
[8] |
ANGLE
|
NH
|
| 11. |
86509848
|
[1] |
SPRING
|
NH
Extension Superseded by part number: 217208
|
| 12. |
9603744
|
[1] |
ROPE
|
NH
Wire
|
| 13. |
9600279
|
[1] |
ROD
|
NH
|
| 14. |
782687
|
[1] |
NUT
|
NH
Push, 5/16" Superseded by part number: 87534717
|
| 15. |
86628304
|
[1] |
DOOR ASSY.
|
NH
|
| 16. |
86635346
|
[1] |
FILLER
|
NH
Top
|
| 17. |
86551339
|
[3] |
DIVIDER
|
NH
|
| 18. |
86635374
|
[1] |
FILLER
|
NH
LH
|
| 19. |
86000448
|
[3] |
LATCH
|
NH
|
| 20. |
86618989
|
[1] |
SHIELD
|
NH
Roll, Floor
|
| 21. |
86635376
|
[1] |
DOOR
|
NH
|
| 22. |
43290
|
[6] |
HINGE
|
NH
|
| 23. |
645970
|
[1] |
BRACKET
|
NH
Support
|
| 24. |
495-21019
|
[1] |
WASHER,#8
|
CAS
Superseded by part number: 280299, 72187261
|
| 25. |
281020
|
[1] |
SELF-TAP SCREW,Pan HD, #8 - 18 x 3/4"
|
NH
|
| 26. |
614-8030
|
[6] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43128
|
| 27. |
322358
|
[38] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 28. |
825-1408
|
[32] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
| 29. |
614-8016
|
[53] |
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 16043224
|
| 30. |
495-21038
|
[14] |
WASHER,5/16"
|
CAS
Superseded by part number: 80664, 72187263
|
| 31. |
614-6016
|
[24] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86508568
|
| 32. |
322357
|
[11] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 33. |
825-1406
|
[20] |
NUT,M6, Cl 8
|
CAS
Superseded by part number: 86500688
|
| 34. |
825-5148
|
[24] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 35. |
495-21031
|
[7] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 36. |
832-46406
|
[7] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 37. |
832-46408
|
[2] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 38. |
814-6030
|
[1] |
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 87317695
|
| 39. |
495-21044
|
[5] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 40. |
432-812
|
[4] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 41. |
86504907
|
[1] |
BRACKET
|
NH
|
| 42. |
9840986
|
[1] |
CLIP
|
NH
|
| 43. |
811-6016
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 86512439
|
| 44. |
84821
|
[2] |
SCREW,Truss HD, #10 - 24 x 1/2"
|
NH
|
| 45. |
492-11010
|
[2] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| 46. |
225-14110
|
[2] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 47. |
E9NN16N738AB
|
[1] |
LATCH
|
NH
1/4" Turn Superseded by part number: 81866169
|
| 48. |
52367
|
[1] |
HOLDER
|
NH
Shear Bolt, Refer to Fig.001 for Shear Bolt & Nut
|
| 50. |
86635341
|
[1] |
YOKE
|
NH
|
| 51. |
86635340
|
[1] |
SHIELD
|
NH
|
| 52. |
86635339
|
[1] |
PANEL
|
NH
|
| 53. |
380426
|
[1] |
SCREW,Flng, M6 x 10mm
|
NH
Self-Tapping, HWH, M6 x 1 x 10
|
| 54. |
18
|
[1] |
SPRING
|
NH
|
| 55. |
86516805
|
[1] |
SOFT TRIM,31-3/4" L
|
NH
31-3/4" Long
|
| 57. |
825-51410
|
[4] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 58. |
844-10025
|
[4] |
BOLT,Hex, M10 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9804261
|
| 59. |
86511323
|
[16] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
