纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (3.444[02A]) - HYDRAULIC TILT CYLINDER DC80 - DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
872 次

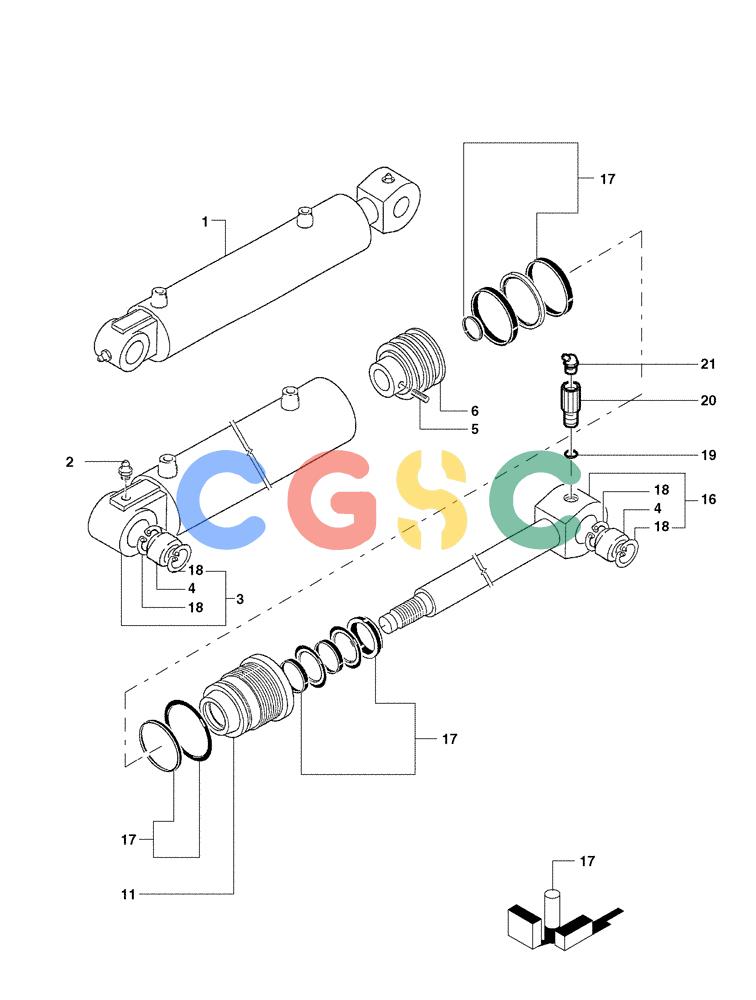

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76591255 | [1] | HYDRAULIC CYLINDER | MACASSY- TILT |
| 2. | 76591112 | [2] | LUBE NIPPLE | MAC |
| 3. | 76591257 | [1] | BARREL | MACTUBE |
| 4. | 76591124 | [2] | ARTICULATION | MACSPHERICAL BUSHING Superseded by part number: 79037239 |
| 5. | 76591222 | [1] | SCREW | MAC |
| 6. | 76591223 | [1] | PISTON | MACPISTON |
| 11. | 76591228 | [1] | BASE PLATE | MACHEAD |
| 16. | 76591270 | [1] | ROD | MAC |
| 17. | 76591234 | [1] | SEAL KIT | MAC Superseded by part number: V282183, U282182, 8210196, 8207696, 8207016, 8204583, 8204581, 1422270 |
| 18. | 76591125 | [4] | LOCKING RING | MAC Superseded by part number: 11061376 |
| 19. | 76605326 | [1] | SEALING WASHER | MAC |
| 20. | 76605327 | [1] | HYD CONNECTOR | MAC |
| 21. | 76598253 | [1] | LUBE NIPPLE | MAC Superseded by part number: 13408411 |
