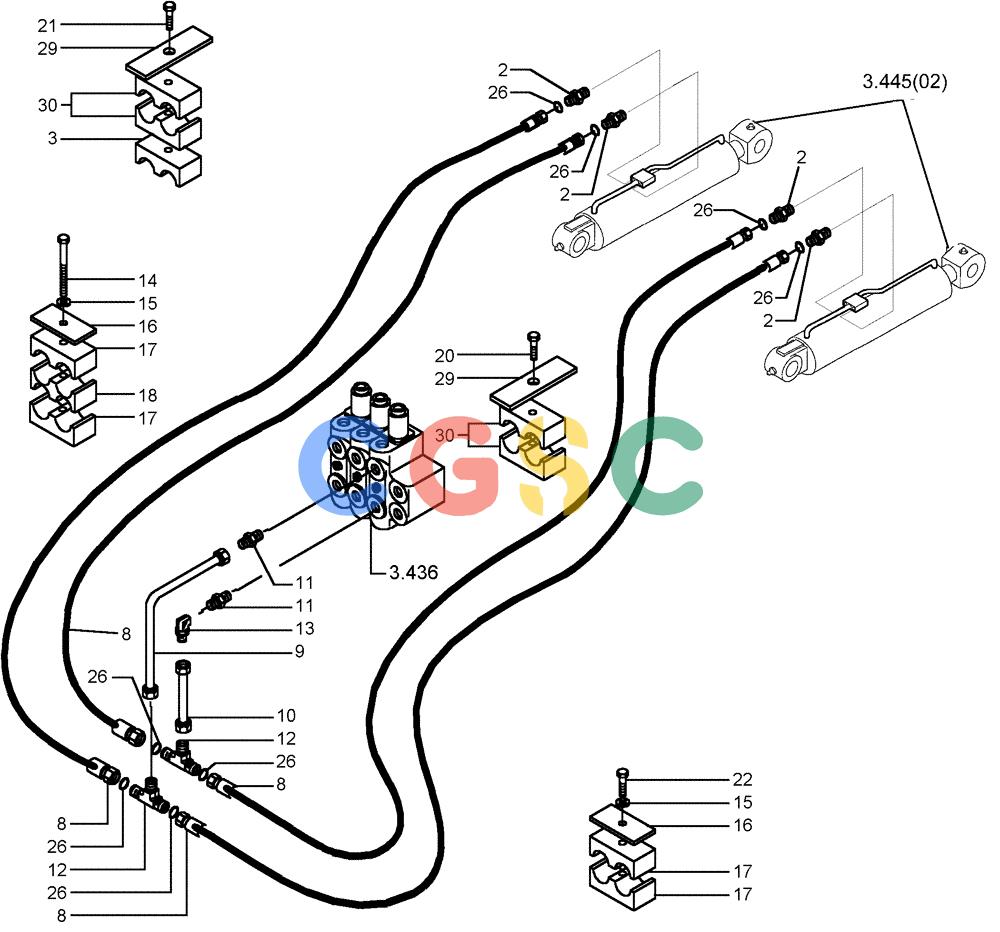

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (3.445[01C]) - ANGLE CYLINDERS PIPES DC70 - STD S/N 13041097 & UP, LGP S/N 13045022 & UP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
280 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 76590982 | [4] | HYD CONNECTOR | MAC |
| 3. | 76591174 | [1] | CLAMP | MAC |
| 8. | 76607055 | [4] | FLEXIBLE HOSE | MAC |
| 9. | 76591203 | [1] | HYD. TUBE | MAC |
| 10. | 76591204 | [1] | HYD. TUBE | MAC |
| 11. | 76591181 | [2] | HYD CONNECTOR | MAC |
| 12. | 76593251 | [2] | HYD CONNECTOR | MAC |
| 13. | 76591193 | [1] | HYD CONNECTOR | MAC |
| 14. | 76592877 | [1] | SCREW | MAC Superseded by part number: 412215 |
| 15. | 76590847 | [2] | WASHER | MAC Superseded by part number: 10519624 |
| 16. | 76598244 | [2] | COVER PLATE | MAC |
| 17. | 76598245 | [4] | COLLAR CLAMP | MAC |
| 18. | 76598246 | [1] | COLLAR CLAMP | MAC |
| 20. | 76605920 | [1] | SCREW | MAC |
| 21. | 76592909 | [1] | SCREW | MAC |
| 22. | 76591176 | [1] | SCREW | MAC Superseded by part number: 7120024 |
| 25. | 76590848 | [2] | NUT | MAC Superseded by part number: 15503611 |
| 26. | 76596045 | [8] | SEAL | MAC |
| 29. | 76605907 | [2] | COVER PLATE | MAC |
| 30. | 76605871 | [2] | COLLAR | MAC |
