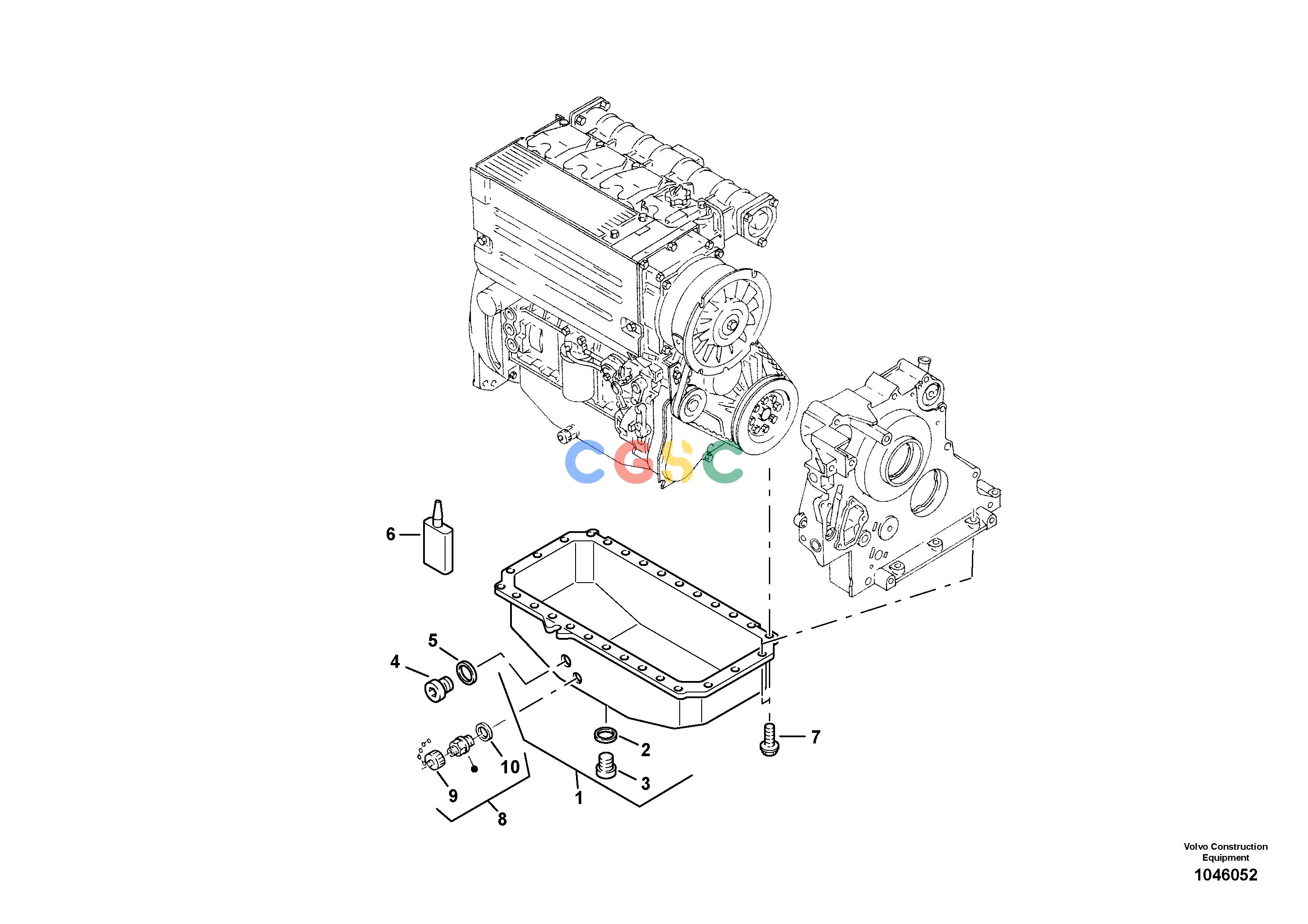

沃尔沃零件查询L25B Oil sumpTYPE 175, S/N 0500 - TYPE 176, S/N 0001 -ENGINE 11306226-ENGINE 11308622NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
220 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11370134
|
[1] |
Oil pan
|
|
| 2. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 3. |
VOE20450891
|
[1] |
Plug
|
M18X1,5
|
| 4. |
VOE20460024
|
[1] |
Plug
|
|
| 5. |
VOE20460026
|
[1] |
Sealing ring
|
|
| 6. |
VOE11712439
|
[REQ] |
Sealing compound
|
|
| 7. |
ZM2292234
|
[26] |
Screw
|
|
| 8. |
ZM4384256
|
[1] |
Valve
|
|
| 8. |
VOE22879098
|
|
Drain valve
|
|
| 9. |
ZM2285689
|
[1] |
Chain with cap
|
|
| 10. |
ZM7099518
|
[1] |
Seal
|
C18X24
|
| 10. |
VOE20450890
|
|
Sealing ring
|
|
