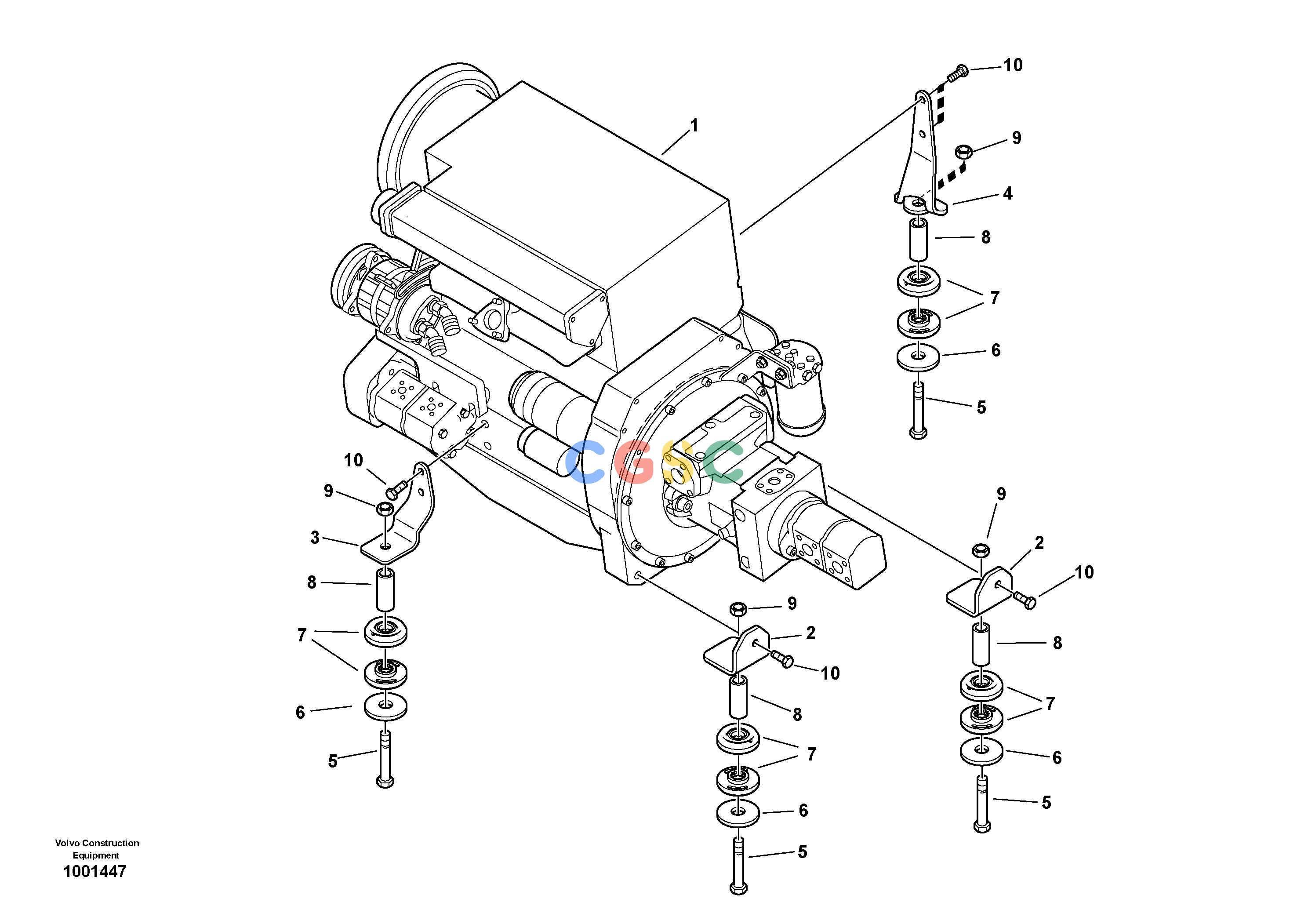

沃尔沃零件查询L25B Engine assyTYPE 175, S/N 0500 - TYPE 176, S/N 0001 -ENGINE 11306226-ENGINE 11308622NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
673 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11306226
|
[1] |
Diesel engine
|
SER - 1753000
|
| 1. |
VOE11308622
|
|
Engine
|
SER NO 1753001 -
|
| 1. |
VOE15216362
|
|
Engine
|
|
| 2. |
ZM2817050
|
[2] |
Retainer
|
-1750864
|
| 2. |
VOE11306348
|
[2] |
Retainer
|
1750865-
|
| 3. |
ZM2817052
|
[1] |
Retainer
|
-1750864
|
| 3. |
VOE11306347
|
[1] |
Retainer
|
1750865-
|
| 4. |
ZM2817239
|
[1] |
Retainer
|
-1750864
|
| 4. |
VOE11306346
|
[1] |
Retainer
|
1750865-
|
| 5. |
VOE997478
|
[4] |
Hexagon screw
|
M20x110, S/N - 1750864
|
| 5. |
VOE997477
|
[4] |
Hexagon screw
|
M20x100
S/N 1750865 - 1753779
|
| 5. |
VOE997478
|
[4] |
Hexagon screw
|
M20x100
11390001 S/N 1753780 -
|
| 6. |
ZM2812435
|
[4] |
Washer
|
-1750864
|
| 6. |
VOE11307333
|
[4] |
Washer
|
1750865-
|
| 7. |
ZM2811225
|
[8] |
Buffer
|
|
| 8. |
ZM2812436
|
[4] |
Tube
|
|
| 9. |
VOE982489
|
[4] |
Lock nut
|
|
| 10. |
VOE980056
|
[6] |
Flange screw
|
|
