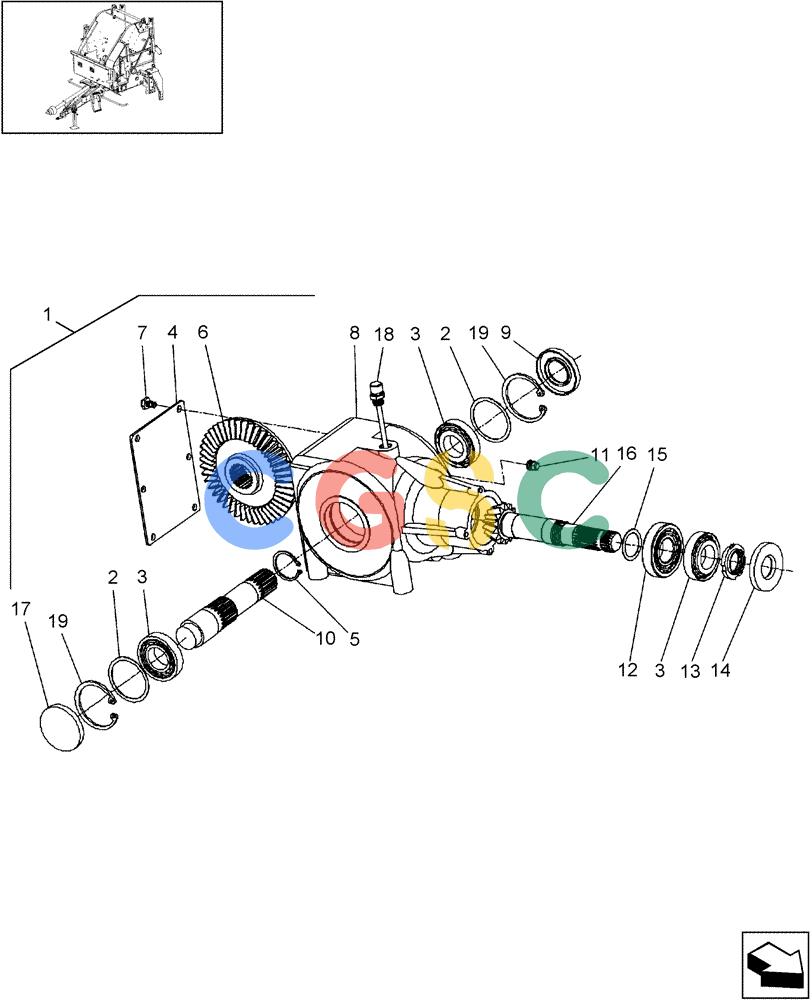

凯斯零件查询(RBX442) - CASE IH ROUND BALER (9/02-7/05) (03.15) - GEARBOX, 540 RPM Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
882 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87025454
|
[1] |
GEARBOX
|
PA
Main Drive, 540 RPM Superseded by part number: 87391830
|
| . . |
87391830R
|
[1] |
REMAN-GEARBOX
|
PA
RBX562, Reman For New P/N's 87025454 & 87391830,
|
| . . |
87391830C
|
[1] |
CORE-GEARBOX
|
PA
Return Number
|
| 2. |
86539214
|
[3] |
SHIM
|
NH
Shim
|
| 3. |
3142394R91
|
[3] |
TAPERED BEARING
|
IH
Superseded by part number: 87668909
|
| 4. |
87016408
|
[1] |
COVER
|
PA
|
| 5. |
86559213
|
[1] |
SNAP RING
|
NH
Superseded by part number: 84437572
|
| 6. |
87016409
|
[1] |
BEVEL GEAR
|
PA
27T
|
| 7. |
614-10020
|
[6] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 8. |
87016410
|
[1] |
HOUSING
|
PA
|
| 9. |
86539153
|
[1] |
SEAL,40mm ID x 80mm OD x 10mm Thk
|
NH
|
| 10. |
87016406
|
[1] |
GEAR SHAFT
|
PA
|
| 11. |
86557412
|
[2] |
PLUG,3/8" - 19 NPT
|
NH
|
| 12. |
86557433
|
[1] |
TAPERED BEARING,40mm ID x 80mm OD x 24.75mm W
|
NH
|
| 13. |
87016415
|
[1] |
NUT
|
PA
M40 x 1.5
|
| 14. |
87016412
|
[1] |
SEAL
|
PA
35 x 80 x 10
|
| 15. |
86539215
|
[1] |
KIT
|
NH
Shim
|
| 16. |
87016411
|
[1] |
SHAFT
|
PA
15T
|
| 17. |
86539148
|
[1] |
CAP
|
NH
|
| 18. |
86626270
|
[1] |
DIPSTICK,129mm L
|
NH
|
| 19. |
87016402
|
[2] |
SNAP RING,80mm x 4.15mm Thk
|
PA
Superseded by part number: 84446717
|
