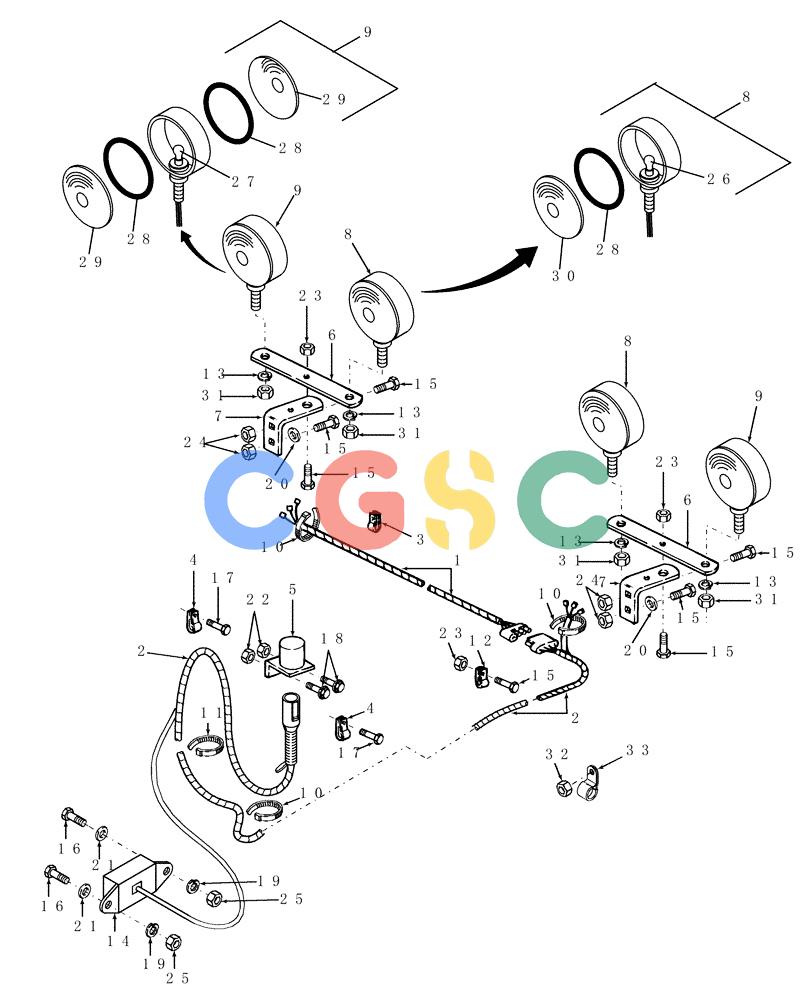

| 1. |
86559103
|
[1] |
WIRE HARNESS
|
NH
Harness, Lighting
|
| 2. |
86559102
|
[1] |
WIRE HARNESS
|
NH
Harness, Lighting
|
| 3. |
577927
|
[1] |
CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type
|
NH
3/4", 13/32" Bolt
|
| 4. |
237980
|
[7] |
WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type
|
NH
7/16" x 1/4" Bolt
|
| 5. |
9611467
|
[1] |
HOLDER
|
NH
Plug
|
| 6. |
9611465
|
[2] |
BRACKET
|
NH
|
| 7. |
9611464
|
[2] |
BRACKET
|
NH
Lamp
|
| 8. |
86621619
|
[2] |
WARNING LIGHT
|
NH
Stop, Includes: Ref. 31
|
| 9. |
86621618
|
[2] |
WARNING LIGHT
|
NH
Amber, Includes: Ref. 31
|
| 10. |
263117
|
[8] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
CABLE STRAP
|
| 11. |
529070
|
[2] |
CABLE TIE,368.3mm L
|
NH
CABLE STRAP
|
| 12. |
515-23127
|
[4] |
CLAMP,1/2", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86010402
|
| 13. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 14. |
86561136
|
[1] |
MODULE
|
NH
Lighting
|
| 15. |
844-8020
|
[8] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 16. |
413-416
|
[2] |
BOLT,Hex, 1/4" - 20 x 1", Gr 5
|
CAS
Superseded by part number: 86505867
|
| 17. |
677808
|
[3] |
SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"
|
NH
HWH, 1/4"-20 x 5/8"
|
| 18. |
844-6016
|
[2] |
BOLT,Hvy Hex, M6 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 9804255
|
| 19. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 20. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 21. |
495-21031
|
[2] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 22. |
825-5146
|
[2] |
SERRATED NUT,M6, Flg Ser
|
CAS
Superseded by part number: 86511444
|
| 23. |
825-5148
|
[12] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 24. |
825-1408
|
[5] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
| 25. |
425-104
|
[2] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
| 26. |
T34857
|
[2] |
BULB,C6, #1157, 12.8V
|
CAS
Superseded by part number: 86537133
|
| 27. |
A41264
|
[2] |
BULB,#1156, 12V
|
CAS
Superseded by part number: 87774955, 529068
|
| 28. |
86627435
|
[6] |
O-RING,3.484" ID x 0.139" Width
|
NH
|
| 29. |
86622240
|
[4] |
LENS
|
NH
Amber
|
| 30. |
86622241
|
[2] |
LENS
|
NH
Red
|
| 31. |
NSS
|
[4] |
NOT SOLD SEPARAT
|
CON
Nut
|
| 32. |
825-1410
|
[2] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
