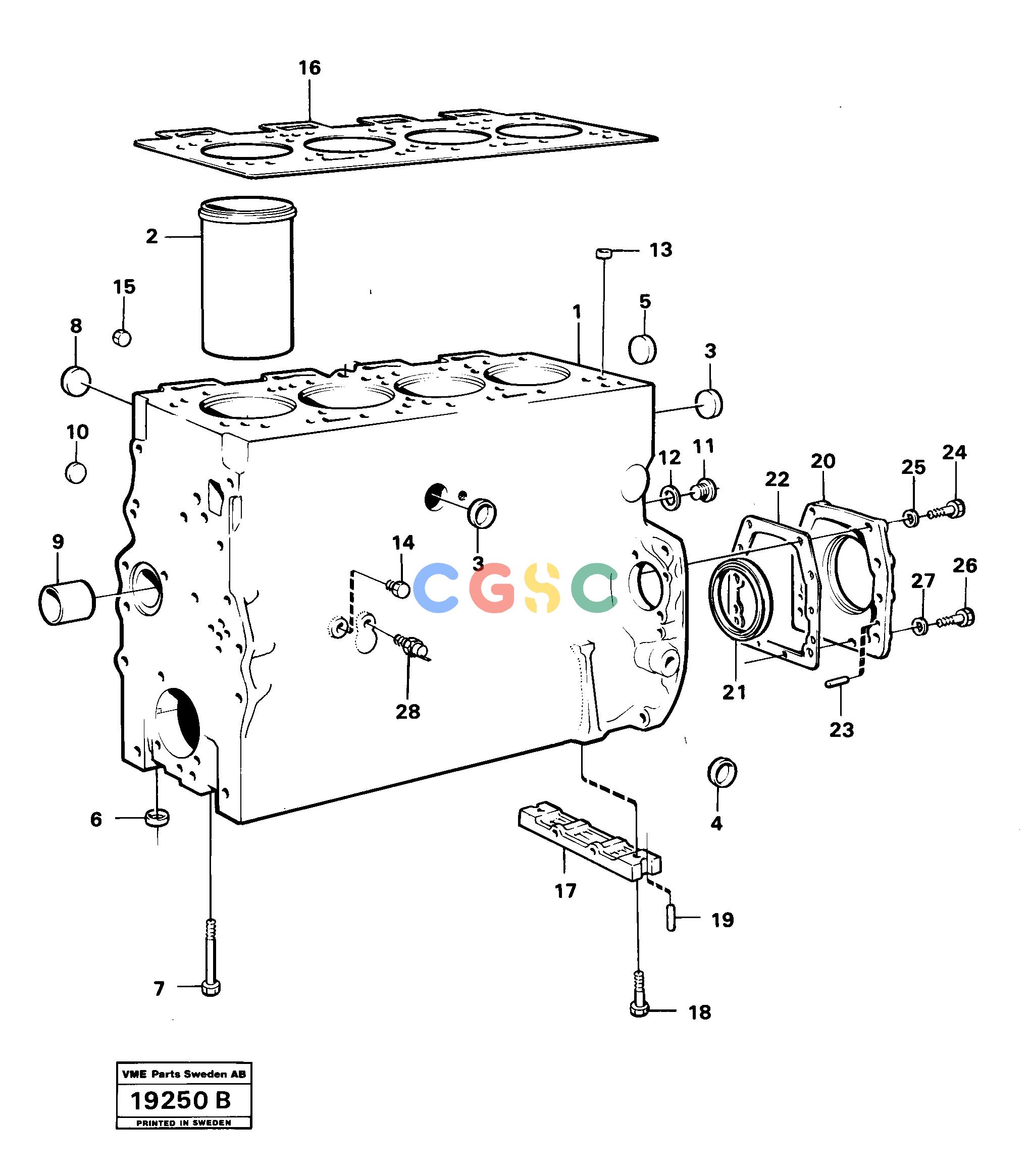

沃尔沃零件查询L30 Cylinder blockL30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
233 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE7483463
|
[1] |
Plug
|
|
| 6. |
VOE483302
|
[10] |
Guide sleeve
|
|
| 7. |
VOE6210370
|
[10] |
Screw
|
|
| 8. |
VOE6212771
|
[4] |
Plug
|
|
| 9. |
VOE11991686
|
[1] |
Bushing
|
SER NO - 71114
|
| |
VOE3976506
|
[1] |
Bushing
|
SER NO 71115 -
|
| 1. |
VOE11993541
|
[1] |
Cylinder block
|
|
| 10. |
VOE483462
|
[4] |
Plug
|
|
| 11. |
VOE483445
|
[1] |
Plug
|
|
| 12. |
VOE957185
|
[1] |
Gasket
|
|
| 13. |
VOE483645
|
[1] |
Plug
|
|
| 14. |
VOE482291
|
[2] |
Plug
|
|
| 15. |
VOE11996102
|
[1] |
Plug
|
|
| 16. |
VOE11703158
|
[1] |
Gasket
|
SER NO - 71114
|
| |
VOE11996123
|
[1] |
Gasket
|
SER NO 71115 -
|
| 17. |
VOE11991684
|
[1] |
Bridge
|
SER NO - 71114
|
| |
VOE11706332
|
[1] |
Bridge
|
SER NO 71115 -
|
| 18. |
VOE11992049
|
[2] |
Screw
|
|
| 19. |
VOE11706038
|
[2] |
Seal
|
|
| 2. |
VOE6212032
|
[4] |
Cylinder liner
|
|
| 20. |
VOE11991727
|
[1] |
Seal
|
|
| 21. |
VOE6212971
|
[1] |
Sealing ring
|
|
| 22. |
VOE11706327
|
[1] |
Gasket
|
|
| 23. |
VOE480219
|
[2] |
Pin
|
|
| 24. |
VOE955658
|
[10] |
Hexagon screw
|
|
| 25. |
VOE13955894
|
[10] |
Washer
|
|
| 26. |
VOE6646879
|
[2] |
Screw
|
|
| 27. |
VOE11991729
|
[2] |
Washer
|
|
| 28. |
VOE1606877
|
[1] |
Switch
|
OLJETRYCK/OIL PRESSURE
SE 16
|
| 3. |
VOE483460
|
[8] |
Cap plug
|
|
| 4. |
VOE6613795
|
[1] |
Plug
|
|
