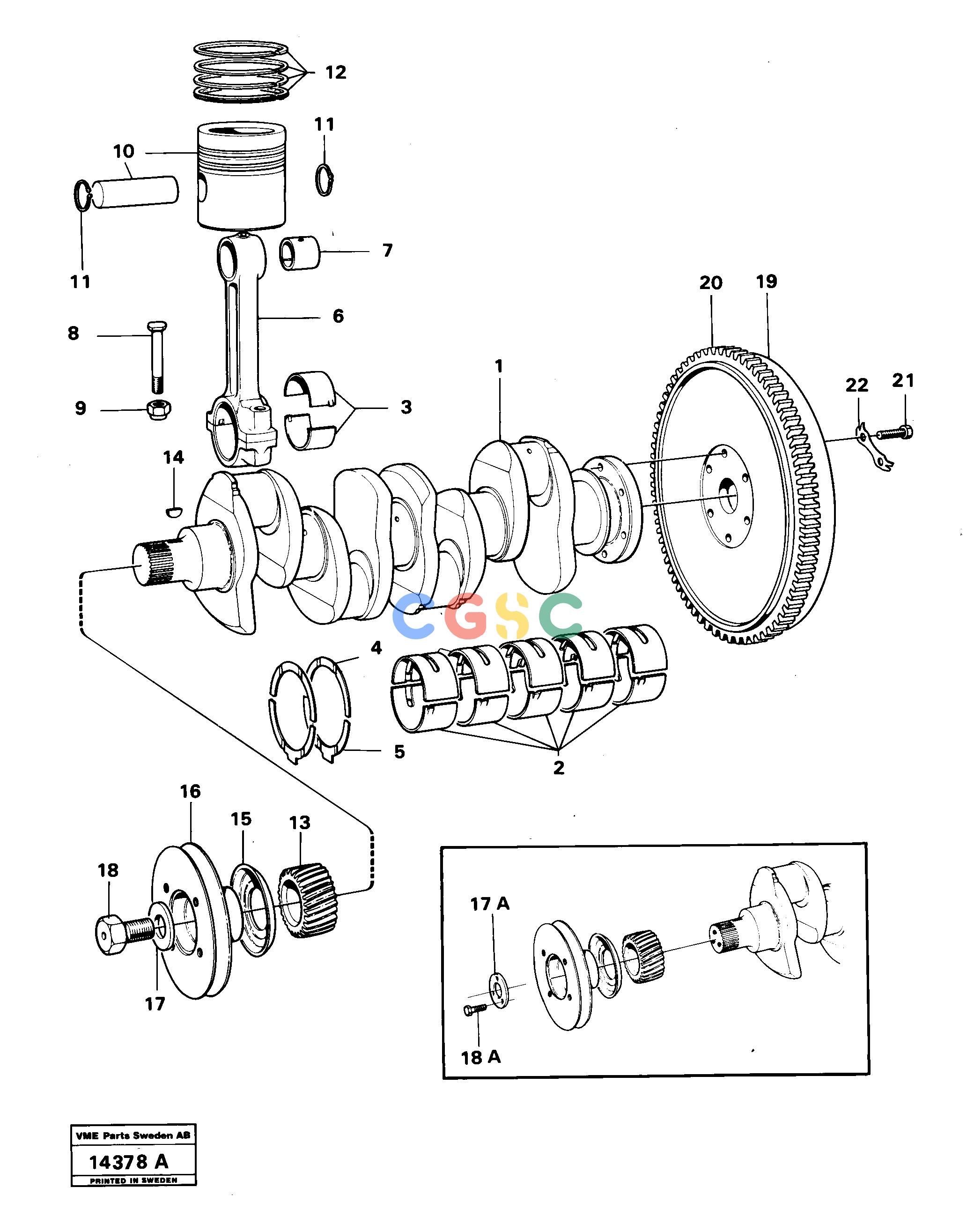

沃尔沃零件查询L30 Crankshaft and related partsL30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
334 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE484115
|
[1] |
Crankshaft
|
SER NO - 71114
|
| |
VOE11994596
|
[1] |
Crankshaft
|
SER NO 71115 -
|
| 2. |
VOE483350
|
[1] |
Main bearing kit
|
STD SZ
|
| |
VOE483351
|
|
Main bearing kit
|
0,010" U SZ,
SER NO - 71114
|
| |
VOE483351
|
|
Main bearing kit
|
0,010" U SZ,
SER NO 71115 -
|
| |
VOE483352
|
|
Main bearing kit
|
0,020" U SZ
|
| |
VOE483353
|
|
Main bearing kit
|
0,030" U SZ
|
| 3. |
VOE483354
|
[1] |
Big End Brg Kit
|
STD SZ
|
| |
VOE483355
|
|
Big End Brg Kit
|
0,010" U SZ
|
| |
VOE483356
|
|
Big End Brg Kit
|
0,020" U SZ
|
| |
VOE483357
|
|
Big End Brg Kit
|
0,030" U SZ
|
| |
|
|
None
|
|
| 4. |
VOE483336
|
[2] |
Thrust washer
|
STD SZ
|
| |
VOE483338
|
[2] |
Thrust washer
|
0,19 O SZ
|
| 5. |
VOE483337
|
[2] |
Thrust washer
|
STD
|
| |
VOE483339
|
[2] |
Thrust washer
|
0,19 O SZ
|
| 6. |
VOE11701691
|
[4] |
Connecting rod
|
SER NO - 71114
|
| |
VOE11701691
|
[4] |
Connecting rod
|
SER NO 71115 -
|
| 7. |
VOE483348
|
[4] |
Bushing
|
|
| 8. |
VOE11705494
|
[8] |
Screw
|
|
| 9. |
VOE6212806
|
[8] |
Nut
|
|
| 10. |
VOE11991700
|
[4] |
Piston
|
STD SZ, SER NO - 71114
|
| 11. |
VOE914519
|
[8] |
Retaining ring
|
SER NO - 71114
|
| 12. |
VOE11991702
|
[4] |
Piston ring kit
|
STD SZ, SER NO - 71114
|
| |
|
|
None
|
|
| 10. |
VOE11994594
|
[4] |
Piston
|
STD SZ, SER NO 71115 -
|
| 11. |
VOE914519
|
[8] |
Retaining ring
|
SER NO 71115 -
|
| 12. |
VOE11996003
|
[4] |
Piston ring kit
|
STD SZ, SER NO 71115 -
|
| |
|
|
None
|
|
| 13. |
VOE483340
|
[1] |
Crankshaft gear
|
|
| 14. |
VOE483448
|
[1] |
Key
|
|
| 15. |
VOE6212465
|
[1] |
Spacer ring
|
|
| 16. |
VOE11993586
|
[1] |
Pulley
|
|
| 17. |
VOE11988396
|
[1] |
Washer
|
|
| 17A. |
VOE11994470
|
[1] |
Washer
|
ALT
|
| 18. |
VOE11703453
|
[1] |
Screw
|
|
| 18A. |
VOE11994471
|
[3] |
Screw
|
ALT
|
| 19. |
VOE11001827
|
[1] |
Flywheel
|
|
| 20. |
VOE11001830
|
[1] |
Drive gear ring
|
|
| 21. |
VOE11991809
|
[6] |
Screw
|
|
| 22. |
VOE7483786
|
[6] |
Lock washer
|
|
