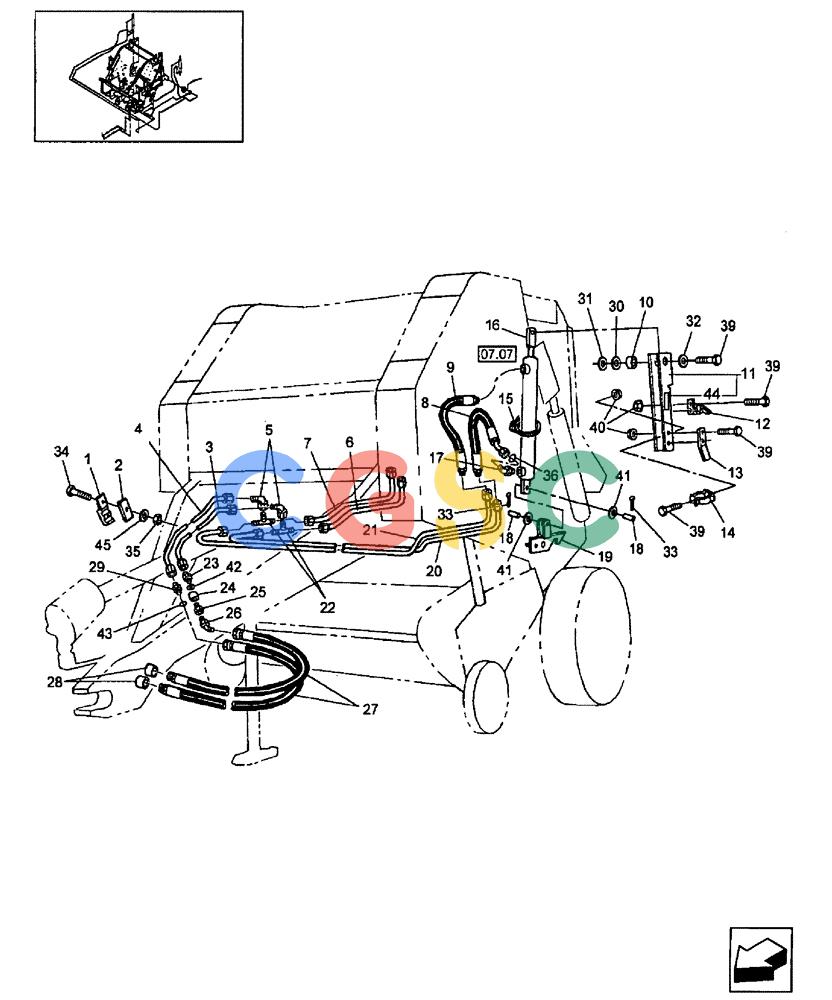

| 1. |
604896
|
[8] |
CLAMP,Dual, 3/8" Hose, 6mm Bolt
|
NH
Double, 3/8" Tubing Superseded by part number: 183825C1
|
| 2. |
86509354
|
[8] |
PLATE
|
NH
Tab
|
| 3. |
9616739
|
[1] |
HYD TUBE
|
PA
|
| 4. |
9616738
|
[1] |
HYD TUBE
|
PA
|
| 5. |
592984
|
[2] |
NUT
|
NH
Swivel Nut
|
| 6. |
9616737
|
[1] |
HYD TUBE
|
PA
|
| 7. |
9619096
|
[1] |
HYD TUBE
|
PA
|
| 8. |
698307
|
[2] |
FLEXIBLE HOSE,9.53mm ID x 381mm L, SAE 100R1
|
NH
Hydraulic
|
| 9. |
86503170
|
[2] |
FLEXIBLE HOSE
|
NH
Hydraulic
|
| 10. |
86635142
|
[2] |
SPACER
|
NH
|
| 11. |
86635348
|
[2] |
LATCH ASSY.
|
NH
Includes: Ref. 44 Superseded by part number: 87036485
|
| 12. |
699386
|
[2] |
SPRING
|
NH
|
| 13. |
698306
|
[2] |
ANGLE
|
NH
|
| 14. |
640576
|
[2] |
CLIP
|
NH
|
| 15. |
86050202
|
[2] |
HOSE CLAMP,1.56" - 2.5", Worm
|
NH
|
| 16. |
86635365
|
[2] |
CYLINDER ASSY.
|
NH
Tailgate Lift Superseded by part number: 87019610
|
| 16. |
87019610
|
[2] |
HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 381mm Stroke
|
PA
Tailgate Lift
|
| 17. |
76344
|
[2] |
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB
|
NH
Incl. Ref. 36
|
| 18. |
166065
|
[2] |
PIN,25.4mm OD x 66.5mm L
|
NH
Clevis, 1" x 2-5/8"
|
| 19. |
86635252
|
[1] |
LATCH
|
NH
Tailgate, RH
|
| 19. |
86635332
|
[1] |
LATCH
|
NH
Tailgate, LH
|
| 20. |
9616736
|
[1] |
HYD TUBE
|
PA
|
| 21. |
9619095
|
[1] |
HYD TUBE
|
PA
|
| 22. |
86628549
|
[2] |
3 WAY CONNECTION
|
NH
Connector, Male Tee, 9/16"-18 SAE
|
| 23. |
517310
|
[1] |
HYD CONNECTOR
|
NH
Rigid, Male, 9/16"-18 SAE to 3/4"-16 SAE, Includes: Ref. 46
|
| 24. |
86635143
|
[1] |
COUPLING,3/4" - 16, 1-9/64" L
|
NH
3/4"-16 SAE
|
| 25. |
195492
|
[1] |
ADAPTER,3/4" - 16 ORB x 9/16" - 18
|
NH
Includes: Ref. 43
|
| 26. |
595744
|
[1] |
ELBOW,45 Degree, 9/16" - 18 x 9/16" - 18
|
NH
90°
|
| 27. |
698314
|
[2] |
HOSE,9.53mm ID x 1879.6mm L, SAE 100R1
|
NH
Hydraulic, 74"
|
| 28. |
116070
|
[2] |
CAP
|
NH
Oil Drain
|
| 29. |
322897
|
[1] |
HYD CONNECTOR,9/16" - 18 x 9/16" - 18
|
NH
(Union)
|
| 30. |
26130
|
[1] |
WASHER,26mm ID x 35mm OD x 1.7mm Thk
|
NH
.060" Thick
|
| 31. |
675657
|
[2] |
WASHER
|
NH
|
| 32. |
25769
|
[2] |
WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk
|
NH
|
| 33. |
87398
|
[6] |
COTTER PIN,3/16" OD x 1-1/4" OAL
|
NH
|
| 34. |
814-6040
|
[4] |
BOLT,Hex, M6 x 1 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 120102
|
| 35. |
832-46406
|
[4] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 36. |
9617873
|
[2] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
|
| 37. |
64972
|
[2] |
WASHER,32.54mm ID x 50.8mm OD x 3.43mm Thk
|
NH
Special, 1-9/32" ID x 2" OD x .135"
|
| 38. |
432-1624
|
[2] |
COTTER PIN,1/4" x 1 1/2"
|
CAS
Superseded by part number: 80753
|
| 39. |
905-8020
|
[4] |
BOLT,Hex Flg, M8 x 20mm
|
CAS
Superseded by part number: 86511479
|
| 40. |
825-5148
|
[6] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 41. |
495-11106
|
[1] |
WASHER,1", SAE
|
CAS
Superseded by part number: 87367
|
| 42. |
86517438
|
[1] |
ORIFICE
|
NH
|
| 43. |
237-6008
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
Superseded by part number: 128825
|
| 44. |
87015383
|
[1] |
DECAL
|
NH
DANGER
|
| 45. |
9824259
|
[8] |
WASHER,6.4mm ID x 12mm OD x 1.6mm Thk
|
NH
|
