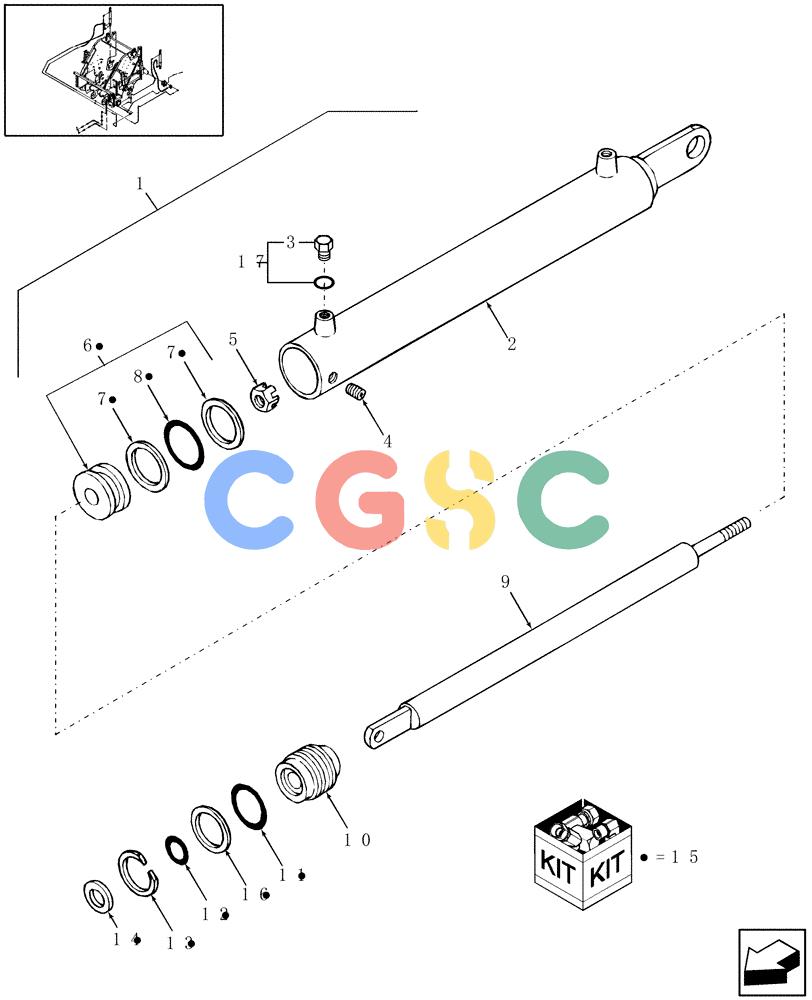

凯斯零件查询(RBX442) - CASE IH ROUND BALER (9/02-7/05) (07.07[1]) - HYDRAULIC CYLINDER, TAILGATE LIFT, 86635365 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
1004 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86635365
|
[1] |
CYLINDER ASSY.
|
NH
Tailgate Lift Superseded by part number: 87019610
|
| 2. |
86635366
|
[1] |
BARREL
|
NH
|
| 3. |
76349
|
[2] |
PLUG,9/16" - 18 ORB
|
NH
|
| 4. |
529034
|
[1] |
SET SCREW
|
NH
HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"
|
| 5. |
280724
|
[1] |
LOCK NUT,3/4" - 16
|
NH
|
| 6. |
768213
|
[1] |
PISTON
|
NH
Superseded by part number: 511953, 511297, 235759
|
| 7. |
511297
|
[2] |
SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk
|
NH
1.638" ID x .064" Thk
|
| 8. |
238-5326
|
[1] |
O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro
|
NH
Superseded by part number: 104258
|
| 9. |
9617354
|
[1] |
ROD
|
NH
Superseded by part number: 87026063
|
| 10. |
785811
|
[1] |
CYLINDER HEAD
|
NH
|
| 11. |
238-6224
|
[1] |
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
|
CAS
Superseded by part number: 235782
|
| 12. |
86513307
|
[1] |
SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk
|
NH
1.250" ID x 1.500" OD
|
| 13. |
512016
|
[1] |
SNAP RING
|
NH
Int, 2.125"
|
| 14. |
529340
|
[1] |
SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk
|
NH
Rod Wiper
|
| 15. |
785812
|
[1] |
SEAL KIT
|
NH
|
| 16. |
270103
|
[1] |
BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk
|
NH
Backup, 1.772" ID x .043" Thk
|
| 17. |
9617873
|
[1] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
|
