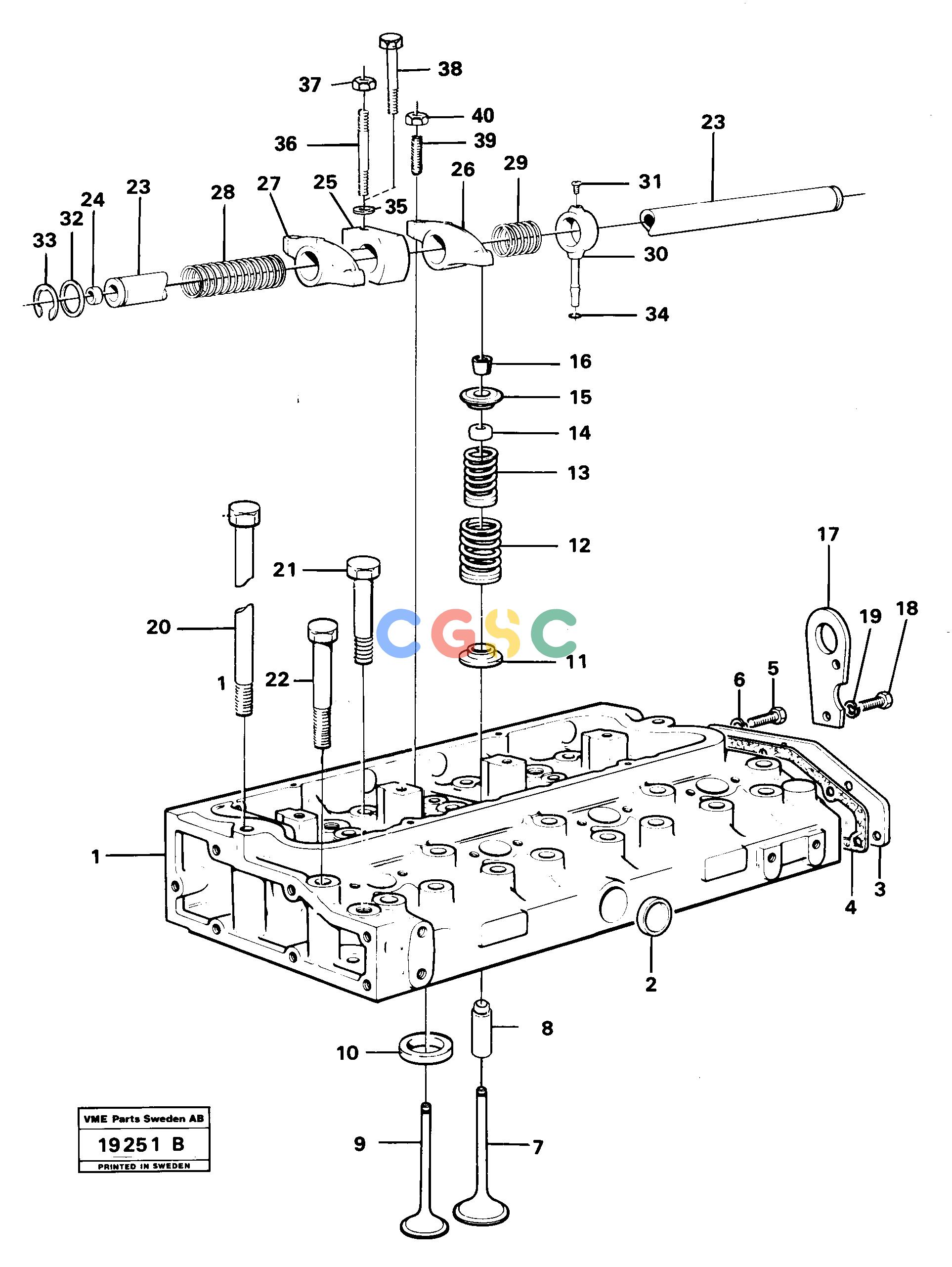

沃尔沃零件查询L30 Cylinder headL30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11993590
|
[1] |
Cylinder head
|
|
| |
VOE11996004
|
[1] |
Cylinder head
|
|
| 2. |
VOE483460
|
[1] |
Cap plug
|
|
| 3. |
VOE11996047
|
[1] |
Cap
|
|
| 4. |
VOE11993155
|
[1] |
Gasket
|
|
| 5. |
VOE955657
|
[6] |
Hexagon screw
|
|
| 6. |
VOE13941907
|
[6] |
Washer
|
|
| 7. |
VOE484070
|
[4] |
Valve
|
|
| |
VOE11996053
|
[4] |
Valve
|
|
| 8. |
VOE11705753
|
[4] |
Valve guide
|
EXHAUST / AVGAS
|
| |
VOE11996048
|
[4] |
Guide
|
EXHAUST / AVGAS
|
| |
VOE11705294
|
[4] |
Valve guide
|
INLET / INSUG
|
| 9. |
VOE11700967
|
[4] |
Exhaust valve
|
EXHAUST / AVGAS
|
| |
VOE11996054
|
[4] |
Valve
|
EXHAUST / AVGAS
|
| 10. |
VOE11993591
|
[4] |
Valve seat
|
STD, EXHAUST / AVGAS
|
| |
VOE11996059
|
|
Valve seat
|
0,010" O SZ
|
| |
VOE11996060
|
|
Valve seat
|
0,020" O SZ
|
| |
VOE11996061
|
|
Valve seat
|
0,030" O SZ
|
| |
|
|
None
|
|
| |
VOE11993592
|
[4] |
Valve seat
|
STD, INLET / INSUG
|
| |
VOE11996062
|
|
Valve seat
|
0,010" O SZ
|
| |
VOE11996063
|
|
Valve seat
|
0,020" O SZ
|
| |
VOE11996064
|
|
Valve seat
|
0,030" O SZ
|
| 11. |
VOE483327
|
[8] |
Washer
|
|
| |
VOE6642514
|
[8] |
Washer
|
|
| 12. |
VOE11991724
|
[8] |
Spring
|
|
| 13. |
VOE11991725
|
[8] |
Spring
|
|
| 14. |
VOE11991723
|
[8] |
Seal
|
|
| 15. |
VOE11991726
|
[8] |
Spring plate
|
|
| 16. |
VOE483530
|
[16] |
Valve sleeve
|
|
| |
VOE11996105
|
[16] |
Lock
|
|
| 17. |
|
[2] |
Lifting plate
|
|
| 18. |
VOE955674
|
[4] |
Hexagon screw
|
|
| 19. |
VOE13942336
|
[4] |
Spring washer
|
|
| 20. |
VOE11993593
|
[2] |
Screw
|
L = 139
|
| 21. |
VOE11993594
|
[12] |
Screw
|
L = 118
|
| 22. |
VOE11993595
|
[8] |
Screw
|
L = 103
|
| |
|
|
None
|
|
| |
VOE11994595
|
[1] |
Shaft
|
|
| 23. |
VOE483361
|
[1] |
Rocker arm shaft
|
|
| 24. |
VOE6613201
|
[2] |
Plug
|
|
| 25. |
VOE11997850
|
[4] |
Bearing bracket
|
(11996149)
|
| 26. |
VOE11996043
|
[4] |
Rocker arm
|
|
| |
VOE6642539
|
[4] |
Bushing
|
|
| 27. |
VOE11996044
|
[4] |
Rocker arm
|
(7483366)
|
| |
VOE6642539
|
[4] |
Bushing
|
|
| 28. |
VOE483363
|
[2] |
Spring
|
|
| 29. |
VOE483364
|
[2] |
Spring
|
|
| 30. |
VOE483681
|
[1] |
Tube
|
|
| 31. |
VOE192285
|
[1] |
Screw
|
|
| 32. |
VOE7483362
|
[2] |
Washer
|
|
| 33. |
VOE483470
|
[2] |
Lock ring
|
|
| 34. |
VOE483510
|
[1] |
Sealing ring
|
|
| 35. |
VOE955896
|
[4] |
Plain washer
|
|
| 36. |
VOE11993986
|
[4] |
Stud
|
|
| 37. |
VOE13955849
|
[4] |
Nut
|
|
| 38. |
VOE11996006
|
[4] |
Screw
|
|
| 39. |
VOE3976859
|
[8] |
Stud
|
|
| 40. |
VOE940175
|
[8] |
Nut
|
|
| |
VOE6212979
|
[1] |
Gasket kit
|
|
| |
VOE11996112
|
[1] |
Gasket kit
|
|
