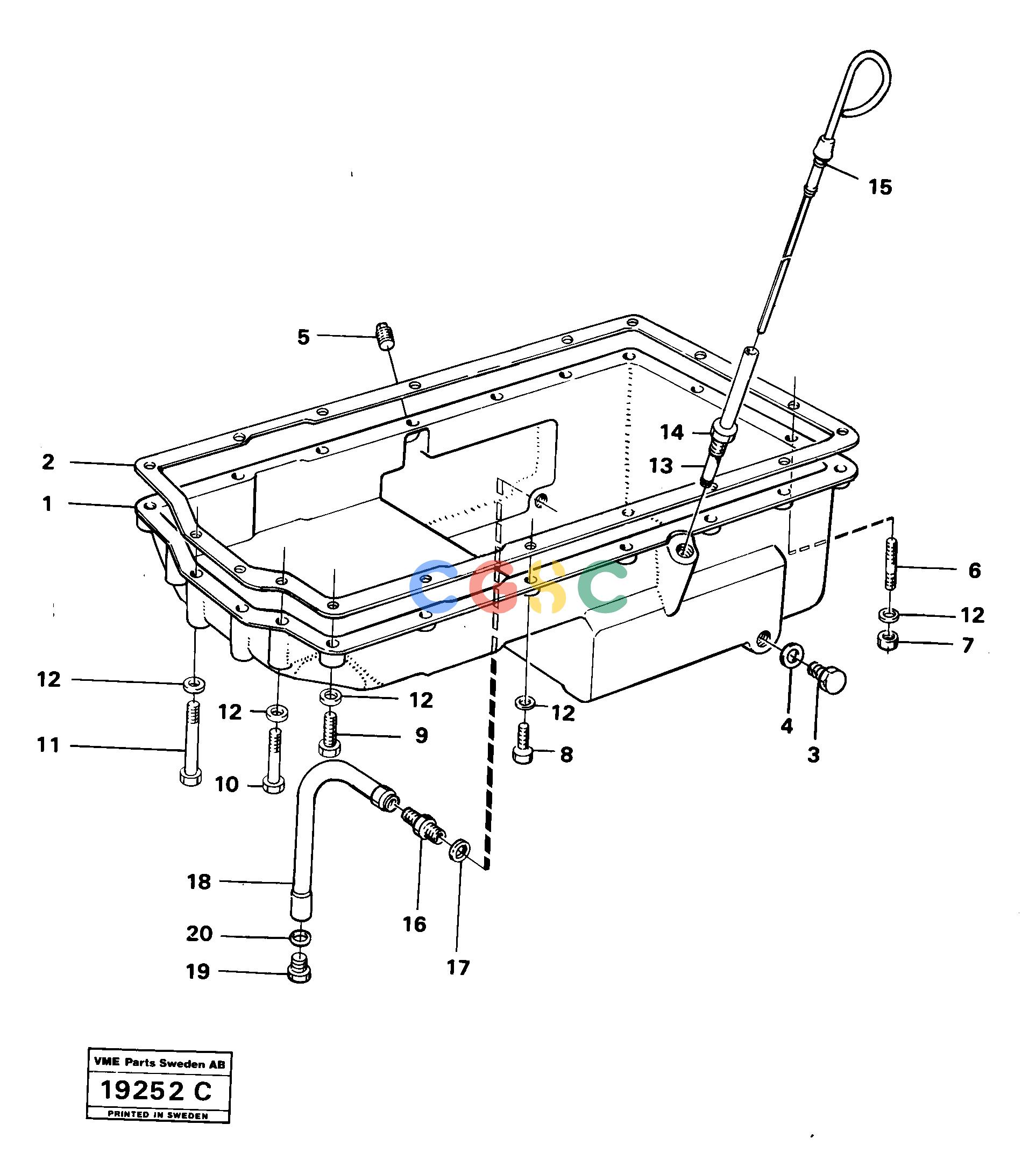

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE6637462
|
[1] |
Plug
|
|
| 6. |
VOE6613215
|
[2] |
Stud
|
|
| 7. |
VOE13955847
|
[2] |
Nut
|
|
| 8. |
VOE955658
|
[12] |
Hexagon screw
|
L = 25
|
| 1. |
VOE11991731
|
[1] |
Oil pan
|
|
| 9. |
VOE955659
|
[2] |
Hexagon screw
|
L = 32
|
| 10. |
VOE483834
|
[2] |
Screw
|
|
| 11. |
VOE955666
|
[2] |
Screw
|
L = 76
|
| 12. |
VOE13941907
|
[20] |
Washer
|
|
| 13. |
VOE11993525
|
[1] |
Tube
|
|
| 14. |
VOE483585
|
[1] |
Nut
|
|
| 15. |
VOE11993524
|
[1] |
Dipstick
|
|
| 16. |
VOE11001602
|
[1] |
Nipple
|
|
| 17. |
VOE13947625
|
[1] |
Plane gasket
|
|
| 18. |
VOE11001651
|
[1] |
Oil draining pipe
|
|
| 19. |
VOE941371
|
[1] |
Plug
|
|
| 2. |
VOE11993152
|
[1] |
Gasket
|
|
| 20. |
VOE958225
|
[1] |
O-ring
|
|
| 3. |
VOE483839
|
[1] |
Plug
|
|
| 4. |
VOE11702799
|
[1] |
Washer
|
|
