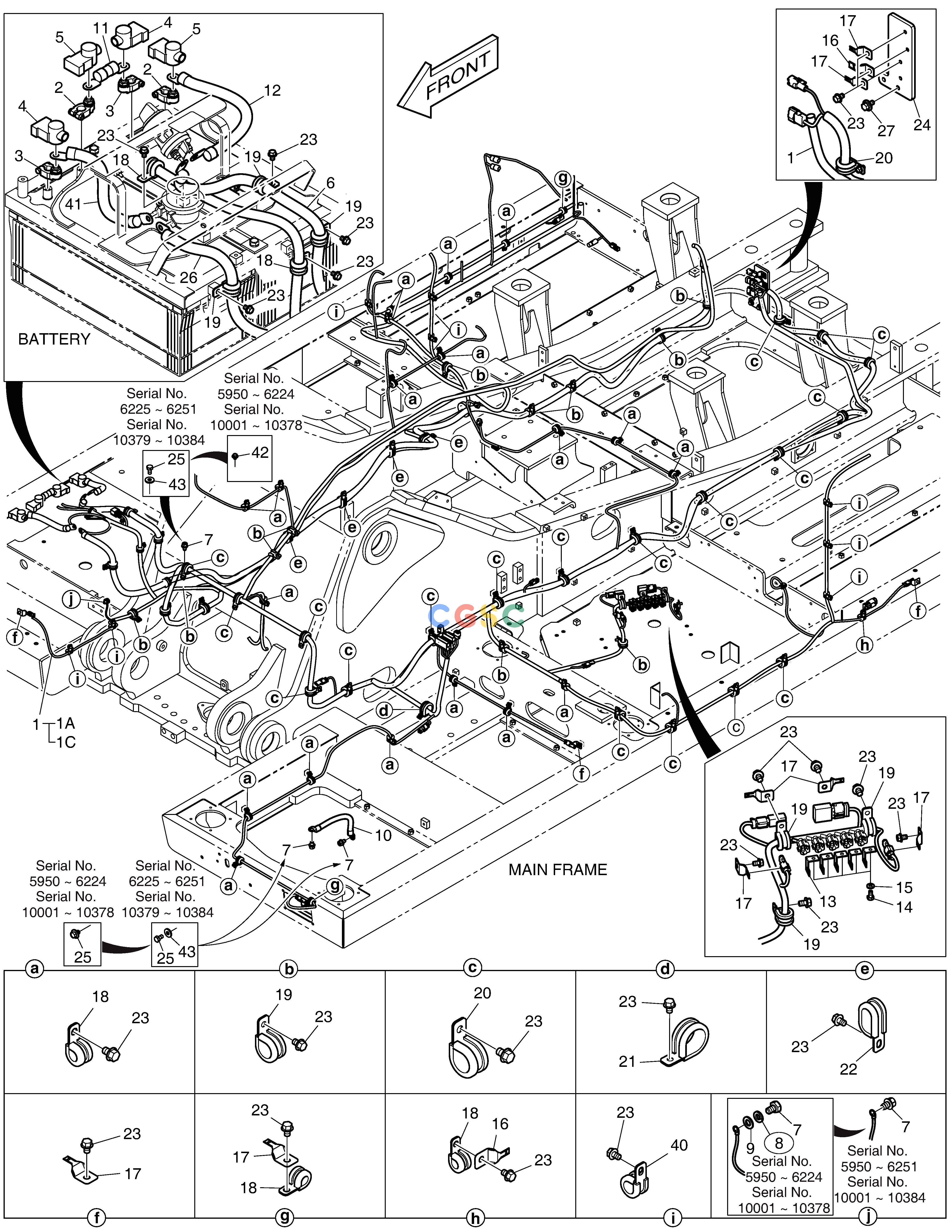

斗山零件查询ELECTRIC WIRING DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
167 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01185
|
[-] |
|
|
| 1. |
310207-01820C
|
[1] |
|
|
| 10. |
2553-1275D39
|
[1] |
CABLE,EARTH
|
|
| 11. |
310203-03207
|
[1] |
|
|
| 12. |
2553-1275D82
|
[1] |
CABLE;BATT EARTH
|
|
| 13. |
2195-3500
|
[5] |
BRACKET
|
|
| 14. |
S0504453
|
[5] |
BOLT
|
|
| 15. |
S5102303
|
[5] |
. WASHER
|
|
| 16. |
2197-1660
|
[1] |
BRACKET
|
|
| 17. |
2197-1661
|
[11] |
BRACKET
|
|
| 18. |
124-00208D2
|
[24] |
CLAMP
|
|
| 19. |
124-00208D3
|
[16] |
CLIP
|
|
| 1A. |
2548-1027
|
[2] |
DIODE
|
|
| 1C. |
300617-00044
|
[1] |
|
|
| 2. |
2550-1014D1
|
[2] |
TERMINAL,BATTERY(+)
|
|
| 20. |
124-00208D4
|
[21] |
CLIP
|
|
| 21. |
124-00208D6
|
[1] |
CLIP
|
|
| 22. |
124-00209D1
|
[4] |
CLIP
|
|
| 23. |
K1001029
|
[82] |
BOLT
|
|
| 24. |
K1001786A
|
[1] |
BRACKET;CONNECTOR
|
|
| 25. |
2120-2196D1
|
[2] |
BOLT;SET M10X1.5X20
|
|
| 25. |
S0511866
|
[3] |
BOLT
|
|
| 26. |
2553-1275D21
|
[1] |
CABLE;BATT RY-STARTER 4000L
|
|
| 27. |
DS0025033
|
[2] |
BOLT
|
|
| 3. |
2550-1014D2
|
[2] |
TERMINAL,BATTERY(-)
|
|
| 4. |
2160-1212
|
[2] |
CAP,BATT. TML(+)
|
|
| 40. |
124-00208D1
|
[8] |
CLIP
|
|
| 41. |
2553-1275D54
|
[1] |
CABLE:BATT-BATT. RELAY
|
|
| 42. |
2120-2196D1
|
[1] |
BOLT;SET M10X1.5X20
|
|
| 43. |
120804-00078
|
[3] |
WASHER
|
|
| 5. |
2160-1213
|
[2] |
CAP,BATT. TML(-)
|
|
| 6. |
2553-1275D122
|
[1] |
|
|
| 7. |
S0511653
|
[1] |
BOLT
|
|
| 7. |
120106-00701
|
[4] |
BOLT
|
|
| 8. |
S5102603
|
[1] |
. WASHER
|
|
| 9. |
S5010613
|
[1] |
WASHER
|
|
| 9. |
120804-00076
|
[1] |
WASHER
|
|
