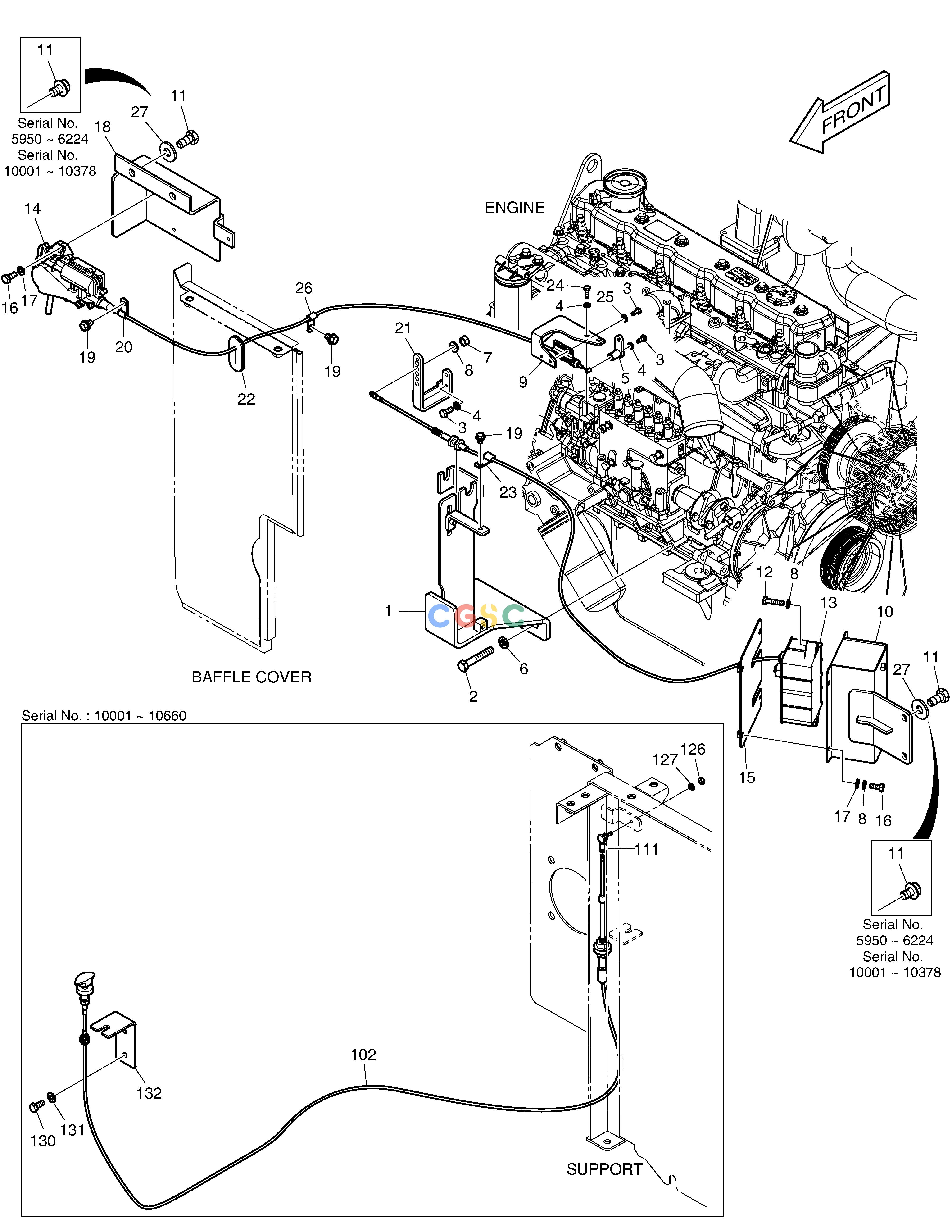

斗山零件查询ENGINE CONTROL DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
235 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150126-00028
|
[-] |
|
|
| 1. |
110406-01512A
|
[1] |
|
|
| 10. |
110406-01199
|
[1] |
|
110406-01199A
|
| 10. |
110406-01199A
|
[1] |
|
|
| 102. |
310401-00663
|
[1] |
|
|
| 11. |
DS0025019
|
[4] |
BOLT
|
|
| 11. |
S0515066
|
[4] |
BOLT
|
|
| 111. |
2138-9006B
|
[1] |
JOINT,BALL
|
|
| 12. |
S0556066
|
[4] |
BOLT
|
|
| 126. |
S4012233
|
[1] |
NUT
|
|
| 127. |
S5102203
|
[1] |
WASHER
|
|
| 13. |
300513-00008
|
[1] |
|
|
| 130. |
2120-2166D5
|
[2] |
BOLT
|
|
| 131. |
2114-1898D14
|
[2] |
WASHER
|
|
| 132. |
K1003118
|
[1] |
BRACKET
|
|
| 14. |
2523-9016
|
[1] |
MOTOR,E/G STOP
|
|
| 15. |
621-01909
|
[1] |
COVER
|
|
| 16. |
S0508866
|
[36] |
BOLT
|
|
| 17. |
S5010513
|
[36] |
WASHER
|
|
| 18. |
2197-1802A
|
[1] |
BRACKET
|
|
| 19. |
K1001029
|
[9] |
BOLT
|
|
| 2. |
2120-2231
|
[2] |
BOLT M12X1.5X75
|
|
| 20. |
2124-1509D10
|
[1] |
CLIP
|
|
| 21. |
133-00166
|
[1] |
LEVER;E/G CONTROL
|
|
| 22. |
160-00040
|
[1] |
BUSHING,RUBBER
|
|
| 23. |
2124-1509D1
|
[1] |
CLIP
|
|
| 24. |
S0504866
|
[4] |
BOLT
|
|
| 25. |
120810-00145
|
[2] |
WASHER,PLAIN
|
|
| 26. |
2124-1509D9
|
[1] |
CLIP
|
|
| 27. |
120804-00079
|
[4] |
WASHER
|
|
| 3. |
S0504566
|
[6] |
BOLT
|
|
| 4. |
S5102303
|
[6] |
. WASHER
|
|
| 5. |
120404-00198
|
[1] |
|
|
| 6. |
S5102703
|
[4] |
WASHER
|
|
| 7. |
S4012533
|
[1] |
NUT
|
|
| 8. |
S5102503
|
[49] |
. WASHER
|
|
| 9. |
110406-02306
|
[1] |
|
|
