沃尔沃零件查询L30 Engine with fitting partsL3011001232-11086018VOE11001232NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
738 次

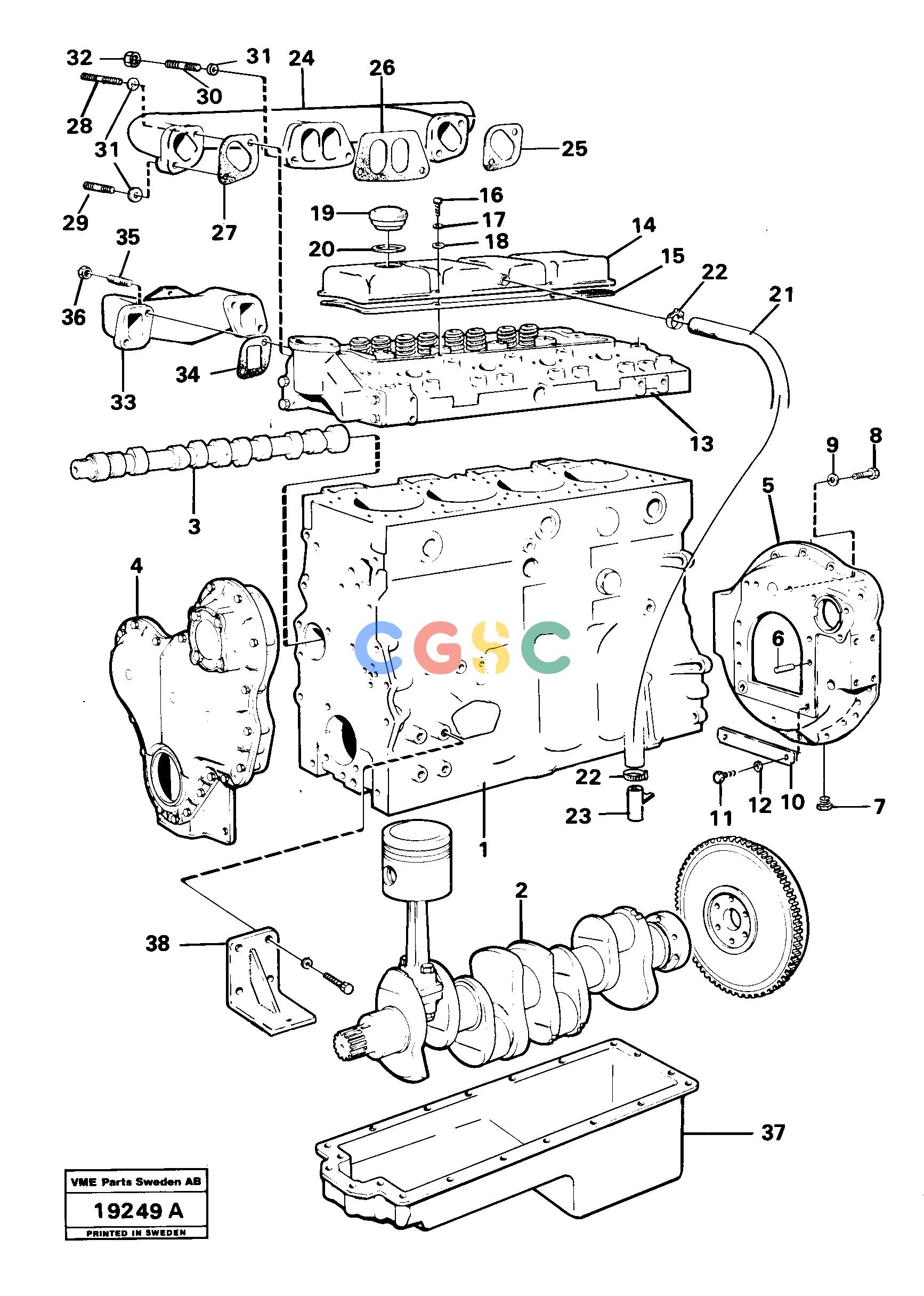

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11001232
|
[1] |
Engine
|
D39B 4.236
SER NO - 71114
|
| |
VOE11086018
|
|
Engine
|
D39C 4.236
SER NO 71115 -
|
| 1. |
|
[1] |
Cylinder block
|
|
| 2. |
|
[1] |
Crankshaft
|
|
| 3. |
|
[1] |
Camshaft
|
|
| 4. |
|
[1] |
Timing gear casing
|
|
| 5. |
VOE11991785
|
[1] |
Flywheel housing
|
|
| 6. |
VOE483449
|
[1] |
Pin
|
|
| 7. |
VOE952358
|
[1] |
Plug
|
|
| 8. |
VOE102056
|
[6] |
Screw
|
|
| 9. |
VOE13942336
|
[6] |
Spring washer
|
|
| 10. |
VOE11991786
|
[1] |
Cover
|
|
| 11. |
VOE955637
|
[2] |
Hexagon screw
|
|
| 12. |
VOE13941906
|
[2] |
Washer
|
|
| 13. |
|
[1] |
Cylinder head
|
|
| 14. |
VOE11991758
|
[1] |
Cover
|
|
| 15. |
VOE11702989
|
[1] |
Gasket
|
|
| |
VOE11702989
|
|
Gasket
|
|
| 16. |
VOE483644
|
[4] |
Screw
|
|
| 17. |
VOE13941906
|
[4] |
Washer
|
|
| 18. |
VOE955893
|
[4] |
Plain washer
|
|
| 19. |
VOE11991759
|
[1] |
Cover
|
|
| 20. |
|
[1] |
Gasket
|
|
| 21. |
VOE11991807
|
[1] |
Hose
|
|
| 22. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 23. |
VOE6646940
|
[1] |
Tube
|
|
| 24. |
VOE11991766
|
[1] |
Inlet pipe
|
|
| 25. |
VOE11993160
|
[1] |
Gasket
|
|
| 26. |
VOE11993158
|
[1] |
Gasket
|
|
| 27. |
VOE11993159
|
[1] |
Gasket
|
|
| 28. |
VOE11994089
|
[2] |
Stud
|
|
| 29. |
VOE6637411
|
[2] |
Screw
|
|
| 30. |
VOE11994091
|
[2] |
Stud
|
|
| 31. |
VOE13942336
|
[6] |
Spring washer
|
|
| 32. |
VOE13955848
|
[6] |
Nut
|
|
| 33. |
VOE483617
|
[1] |
Exhaust manifold
|
|
| 34. |
VOE11998073
|
[2] |
Gasket
|
|
| |
VOE11996037
|
|
Gasket
|
|
| 35. |
VOE6616662
|
[4] |
Stud
|
|
| 36. |
VOE11996049
|
[4] |
Nut
|
|
| 37. |
|
[1] |
Oil sump
|
|
| 38. |
|
[2] |
Engine suspension
|
|
