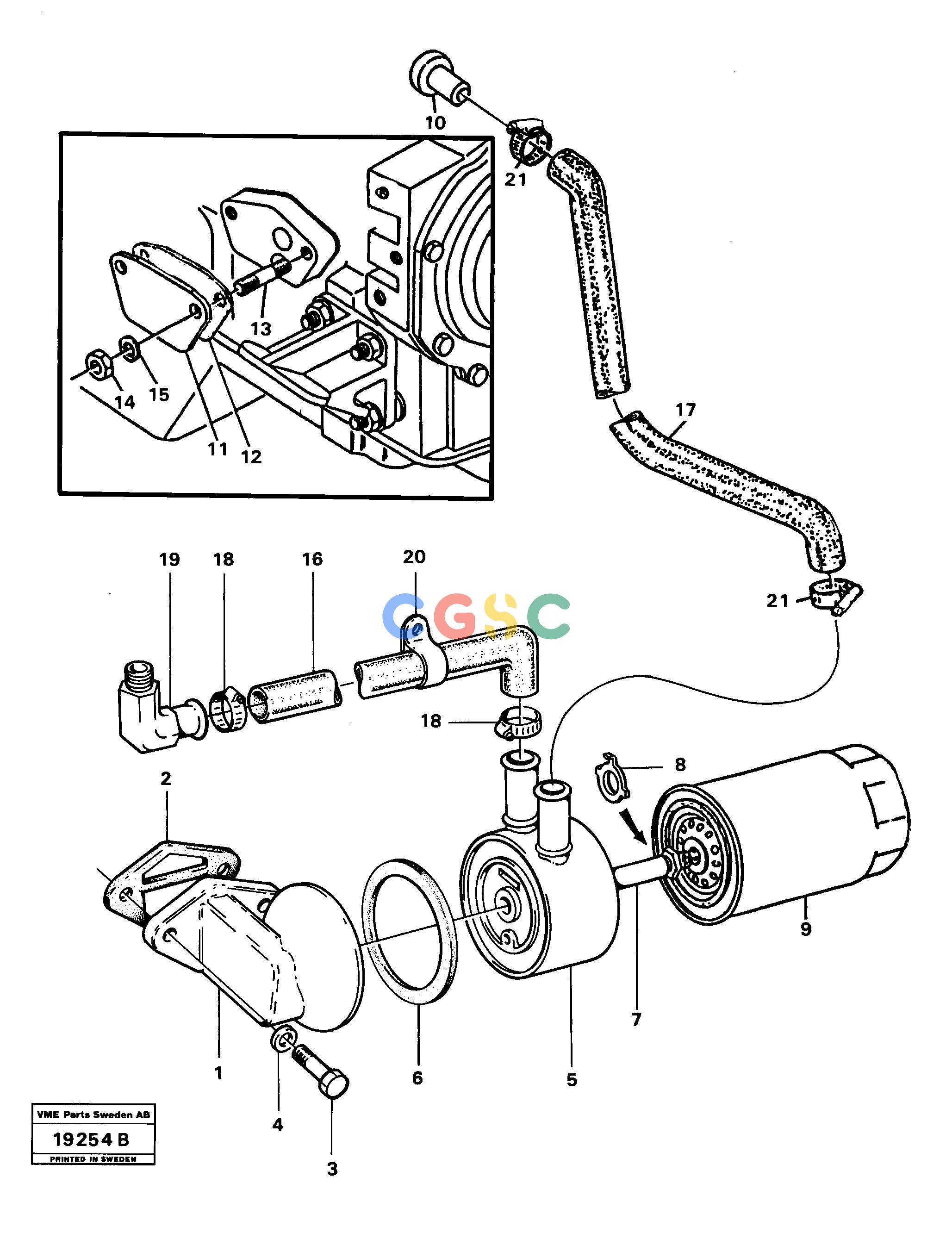

沃尔沃零件查询L30 Oilfilter and oil coolerL30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
889 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11993598
|
[1] |
Filter retainer
|
SER NO - 71114
|
| |
VOE11996055
|
[1] |
Filter retainer
|
SER NO 71115 -
|
| 2. |
VOE11993153
|
[1] |
Gasket
|
|
| 3. |
|
[2] |
Screw
|
|
| 4. |
VOE13941909
|
[2] |
Washer
|
|
| 5. |
VOE11993599
|
[1] |
Oil cooler
|
|
| 6. |
VOE11991757
|
[1] |
Seal
|
|
| 7. |
VOE11993600
|
[1] |
Connector
|
|
| 8. |
VOE11994084
|
[1] |
Lock ring
|
|
| 9. |
VOE4804651
|
[1] |
Oil filter
|
|
| 10. |
VOE11991750
|
[1] |
Adapter
|
|
| 11. |
VOE6211376
|
[1] |
Plate
|
|
| 12. |
VOE11993154
|
[1] |
Gasket
|
|
| 13. |
VOE11991745
|
[2] |
Stud
|
|
| 14. |
VOE13955849
|
[2] |
Nut
|
|
| 15. |
VOE13941909
|
[2] |
Washer
|
|
| 16. |
VOE11993576
|
[1] |
Hose
|
|
| 17. |
VOE11993608
|
[1] |
Hose
|
|
| 18. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 19. |
VOE11993609
|
[1] |
Nipple
|
|
| 20. |
VOE952634
|
[2] |
Clamp
|
|
| 21. |
VOE13943474
|
[2] |
Hose clamp
|
|
