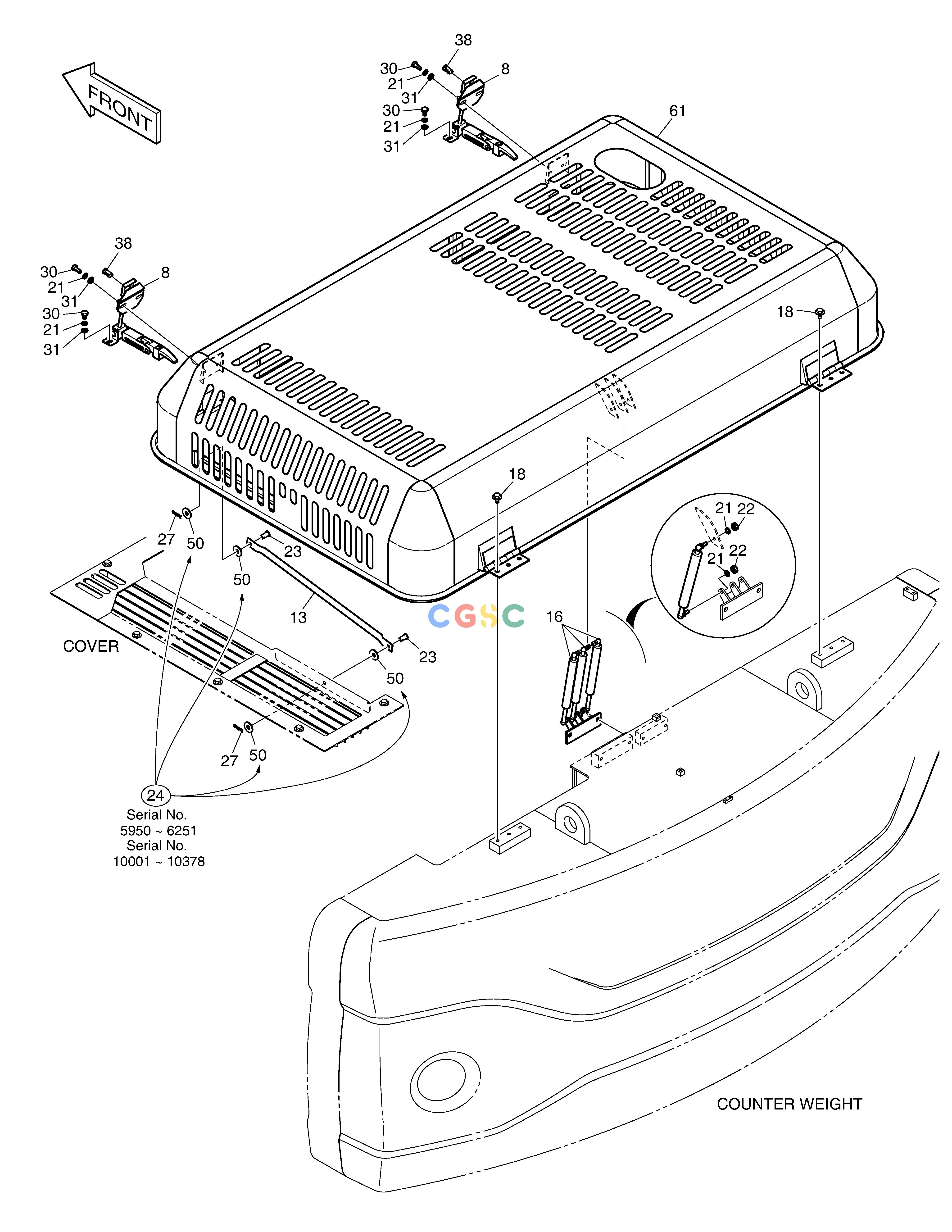

斗山零件查询ENGINE COVER DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
904 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-04345
|
[-] |
|
|
| 13. |
145-00069
|
[1] |
STAY
|
|
| 16. |
DS1001059
|
[3] |
SPRING;GAS
|
|
| 18. |
DS0025015
|
[6] |
BOLT
|
|
| 18. |
S0515066
|
[6] |
BOLT
|
|
| 21. |
S5102503
|
[14] |
. WASHER
|
|
| 22. |
S4012533
|
[6] |
NUT
|
|
| 23. |
2123-1057D47
|
[2] |
PIN
|
|
| 24. |
2114-1154
|
[4] |
WASHER
|
|
| 27. |
2705-9002
|
[2] |
PIN
|
|
| 30. |
S0508866
|
[8] |
BOLT
|
|
| 31. |
S5010513
|
[8] |
WASHER
|
|
| 38. |
K1004630
|
[2] |
CYLINDER;KEY
|
|
| 50. |
120804-00079
|
[10] |
WASHER
|
|
| 61. |
110501-00113A
|
[1] |
|
110501-00113B
|
| 61. |
110501-00113B
|
[1] |
|
|
| 8. |
125-00075A
|
[2] |
CATCH
|
|
