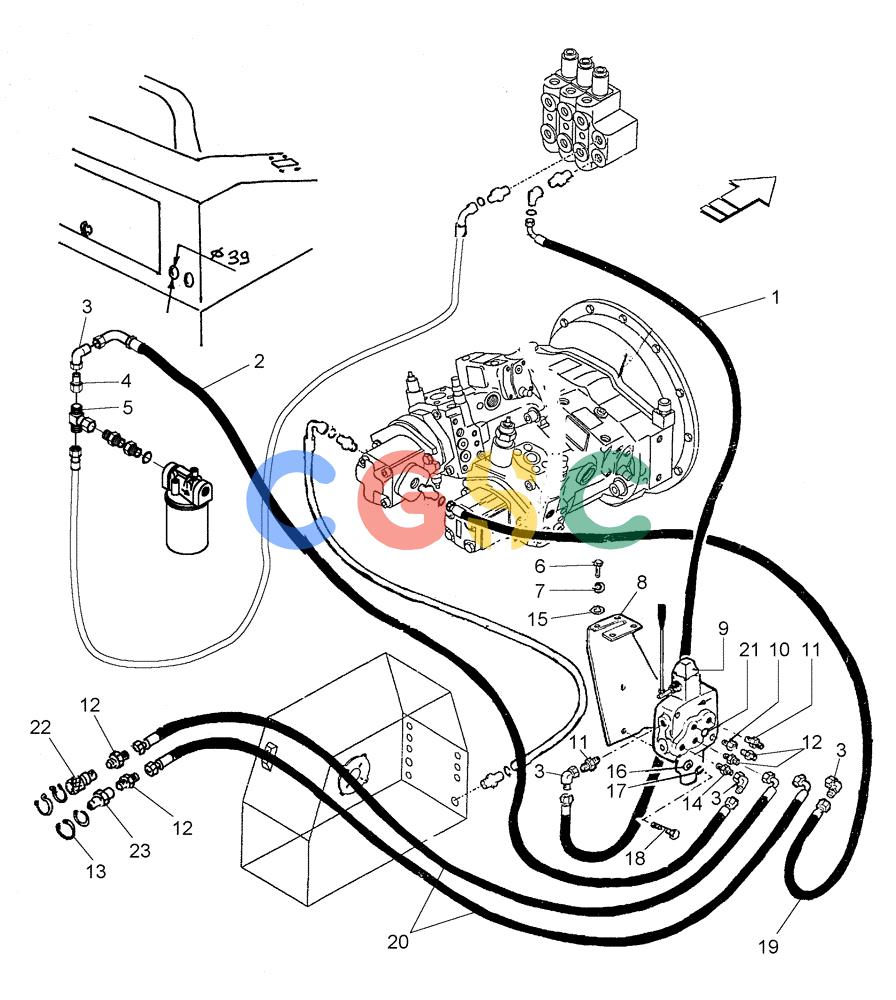

纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (9.556[01]) - REAR FOUR SPOOL FUNCTION DC70 - DC80 - DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
913 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76610278 | [1] | FLEXIBLE HOSE | MACHOSE ASSY. |
| 2. | 76610279 | [1] | FLEXIBLE HOSE | MACHOSE ASSY. |
| 3. | 76591041 | [4] | HYD CONNECTOR | MACCONNECTOR, ELBOW |
| 4. | 76610280 | [1] | HYD CONNECTOR | MACCONNECTOR |
| 5. | 76610281 | [1] | HYD CONNECTOR | MACCONNECTOR, TEE |
| 6. | 76590946 | [4] | SCREW | LEC |
| 7. | 76590721 | [4] | LOCK WASHER | MACWASHER, LOCK |
| 8. | 76610282 | [1] | SUPPORT | MACBRACKET |
| 9. | 76610286 | [1] | CONTROL VALVE | MACVAVLE, CONTROL |
| 10. | 76610287 | [1] | HYD CONNECTOR | MACCONNECTOR |
| 11. | 76590990 | [2] | HYD CONNECTOR | MACCONNECTOR |
| 12. | 76591181 | [4] | HYD CONNECTOR | MACCONNECTOR |
| 13. | 76610288 | [4] | LOCKING RING | MACLOCKRING |
| 14. | 76591151 | [1] | HYD CONNECTOR | MACCONNECTOR |
| 15. | 76590713 | [4] | WASHER | MAC Superseded by part number: 14496621 |
| 16. | 76590847 | [3] | WASHER | MAC Superseded by part number: 10519624 |
| 17. | 76591021 | [3] | LOCK WASHER | MACWASHER, LOCK |
| 18. | 76591176 | [3] | SCREW | MAC Superseded by part number: 7120024 |
| 19. | 76610289 | [1] | FLEXIBLE HOSE | MACHOSE ASSY. |
| 20. | 76595904 | [2] | FLEXIBLE HOSE | MACHOSE ASSY. |
| 21. | 76590904 | [1] | WASHER | MACSEAL |
| 22. | 76610290 | [2] | HYD CONNECTOR | MACCOUPLER, QUICK FEMALE |
| 23. | 76610291 | [2] | HYD CONNECTOR | MACCOUPLER, QUICK MALE |
