纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (9.555[02C]) - REAR HYDRAULIC FUNCTION DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
277 次

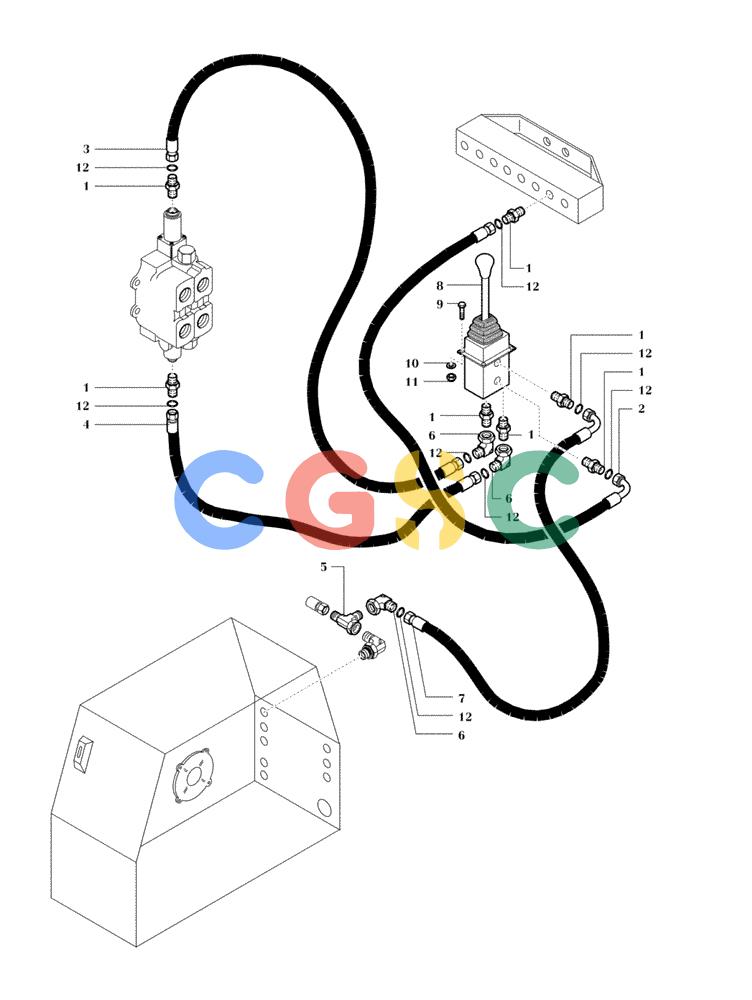

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76591032 | [7] | HYD CONNECTOR | MAC |
| 2. | 76596034 | [1] | FLEXIBLE HOSE | MAC |
| 3. | 76596035 | [1] | FLEXIBLE HOSE | MAC |
| 4. | 76596037 | [1] | FLEXIBLE HOSE | MAC |
| 5. | 76591028 | [1] | HYD CONNECTOR | MAC |
| 6. | 76591029 | [3] | HYD CONNECTOR | MAC |
| 7. | 76596038 | [1] | FLEXIBLE HOSE | MAC |
| 8. | 76596052 | [1] | MANIPULATOR | MAC |
| 9. | 76590845 | [4] | SCREW | MAC |
| 10. | 76590847 | [4] | WASHER | MAC Superseded by part number: 10519624 |
| 11. | 76590848 | [4] | NUT | MAC- SELF-LOCKING Superseded by part number: 15503611 |
| 12. | 76596047 | [8] | SEAL | MAC- O-RING |
