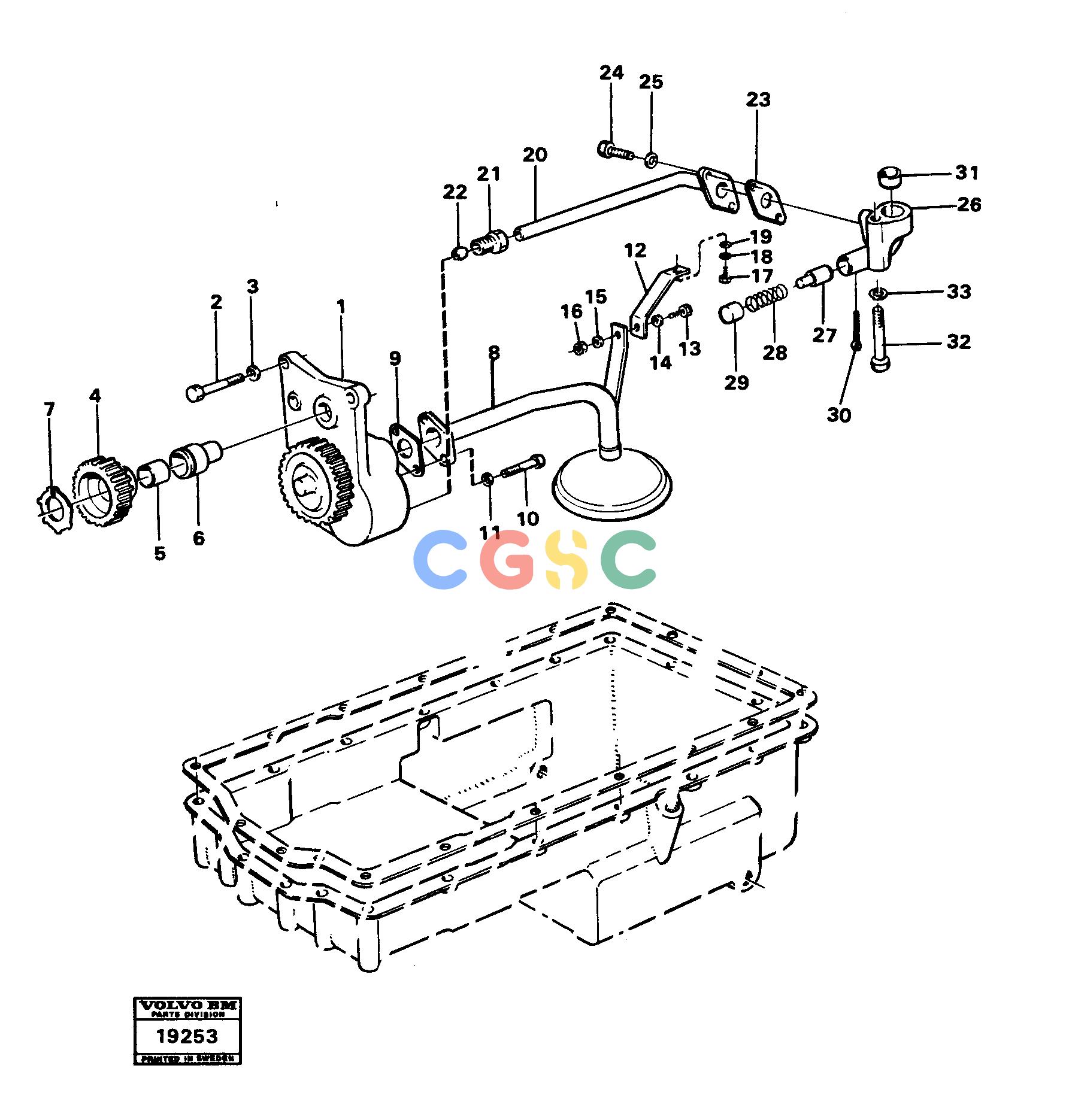

沃尔沃零件查询L30 Lubricating oil systemL30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
927 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0001] |
Bushing
|
|
| 6. |
VOE7483404
|
[0001] |
Shaft
|
|
| 7. |
VOE483469
|
[0001] |
Lock ring
|
|
| 8. |
VOE11991740
|
[0001] |
Tube
|
|
| 9. |
VOE11993150
|
[0001] |
Gasket
|
|
| 1. |
VOE11994052
|
[0001] |
Oil pump
|
|
| 10. |
VOE955656
|
[0002] |
Hexagon screw
|
|
| 11. |
VOE13941907
|
[0002] |
Washer
|
|
| 12. |
VOE11991739
|
[0001] |
Anchorage
|
|
| 13. |
VOE955638
|
[0001] |
Hexagon screw
|
|
| 14. |
VOE13941906
|
[1] |
Washer
|
|
| 15. |
VOE955893
|
[1] |
Plain washer
|
|
| 16. |
|
[1] |
Nut
|
|
| 17. |
VOE955656
|
[1] |
Hexagon screw
|
|
| 18. |
VOE13941907
|
[1] |
Washer
|
|
| 19. |
VOE13955894
|
[1] |
Washer
|
|
| 2. |
VOE955657
|
[0003] |
Hexagon screw
|
|
| 20. |
VOE483405
|
[1] |
Tube
|
SER NO - 71114
|
| |
VOE11996018
|
[1] |
Pipe
|
SER NO 71115 -
|
| 21. |
VOE6613076
|
[0001] |
Nut
|
|
| 22. |
VOE6613189
|
[0001] |
Ferrule
|
|
| 23. |
VOE11993151
|
[0001] |
Gasket
|
|
| 24. |
VOE955637
|
[0002] |
Hexagon screw
|
|
| 25. |
VOE13941906
|
[0002] |
Washer
|
|
| 26. |
VOE483407
|
[1] |
Housing
|
|
| 27. |
VOE483408
|
[1] |
Piston
|
|
| 28. |
VOE483409
|
[1] |
Spring
|
|
| 3. |
VOE13941907
|
[0003] |
Washer
|
|
| 29. |
VOE483410
|
[1] |
Cover
|
|
| 30. |
VOE13907851
|
[1] |
Cotter Pin
|
|
| 31. |
VOE6211943
|
[1] |
Sleeve
|
|
| 32. |
VOE955679
|
[1] |
Hexagon screw
|
|
| 33. |
VOE13942336
|
[1] |
Spring washer
|
|
| 4. |
VOE11991709
|
[0001] |
Gear
|
|
