纽荷兰零件查询(DC100) - CRAWLER DOZER (N.A. VERSION) (4/00-) (9.650[01]) - CAB HEATER DC70 - DC80 - DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
371 次

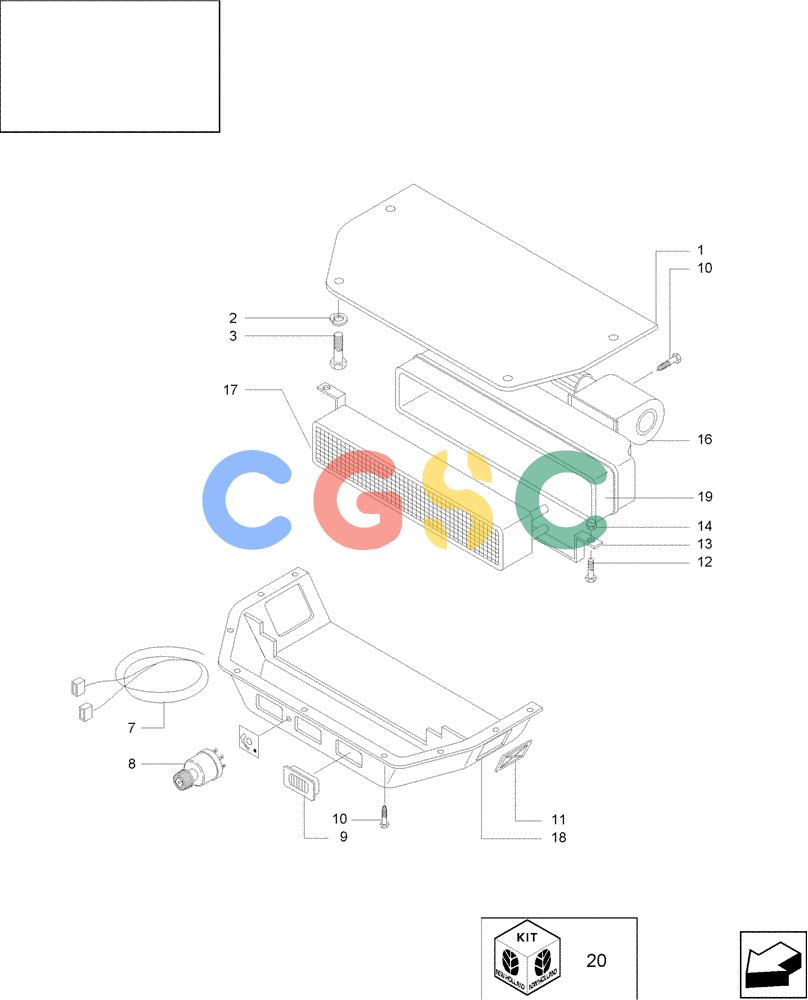

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76595915 | [1] | COVER | MAC(Not Part of Kit) |
| 2. | 76590750 | [4] | LOCK WASHER | MAC(Not Part of Kit) Superseded by part number: 86517328 |
| 3. | 76590872 | [4] | SCREW | MAC(Not Part of Kit) Superseded by part number: 120100 |
| 7. | 76595920 | [1] | WIRE HARNESS | MAC |
| 8. | 76595922 | [1] | SWITCH | MAC |
| 9. | 76595923 | [5] | CONVEYOR | MACDIFUSER |
| 10. | 76595926 | [17] | SCREW | MAC Superseded by part number: 15688104 |
| 11. | 76595927 | [2] | CAB FILTER | MAC |
| 12. | 76590749 | [2] | SCREW | MAC Superseded by part number: 86508568 |
| 13. | 76595928 | [1] | BRACKET | MAC |
| 14. | 76590934 | [2] | NUT | MAC Superseded by part number: 12574221 |
| 16. | 76595929 | [1] | ELECTRIC BLOWER | TOR |
| 17. | 76595930 | [1] | RADIATOR | TOR |
| 18. | 76595931 | [1] | COVER | MAC |
| 19. | 76606900 | [1] | CONTAINER | MAC- HEATER PLENUM (Not Part of Kit) |
| 20. | 76595932 | [1] | HEATER | MACKIT - Includes Refs. 7 - 18 |
