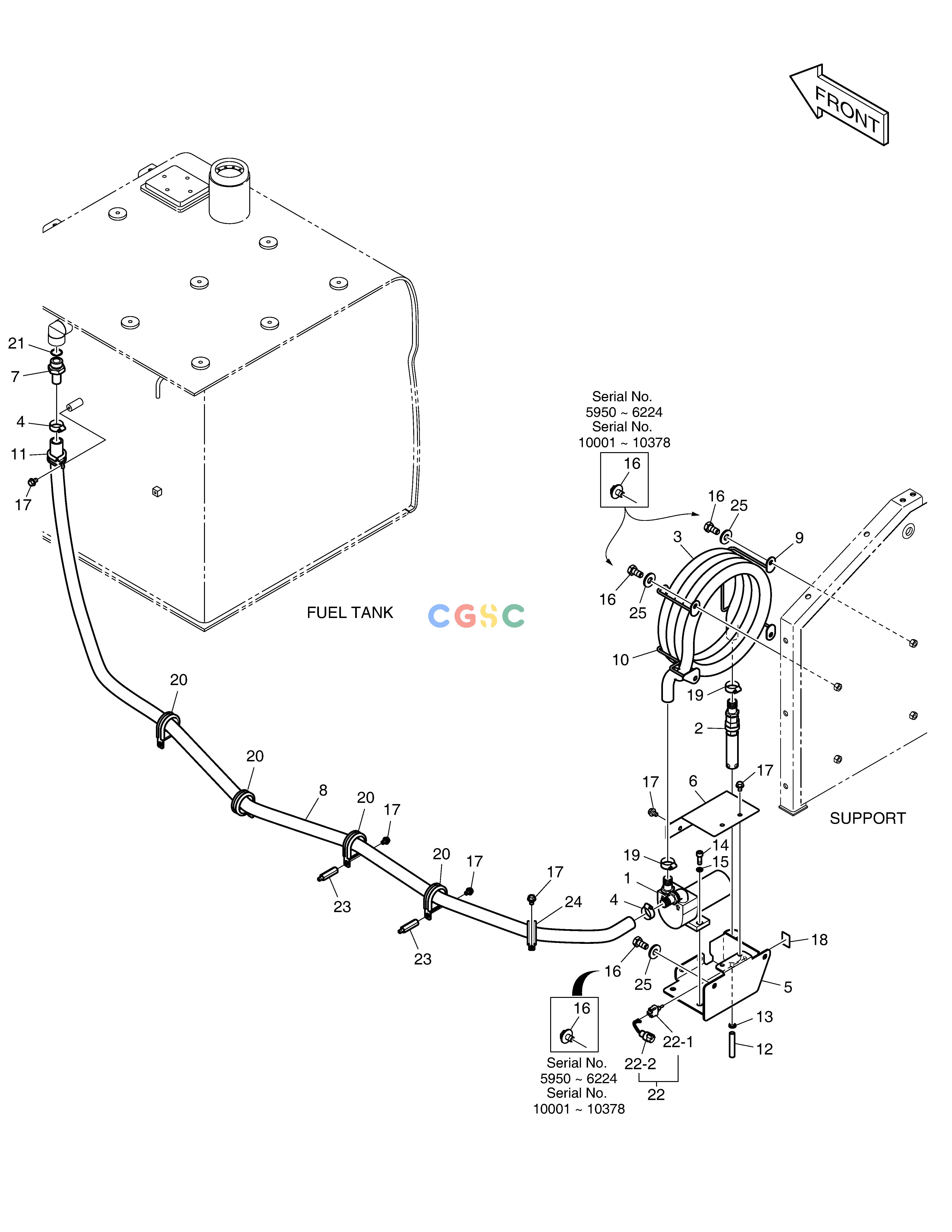

斗山零件查询FUEL FILLER PUMP DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
867 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400909-00041
|
[-] |
|
|
| 1. |
401-00527
|
[1] |
PUMP;FUEL TRANSFER
|
|
| 10. |
K1001271
|
[1] |
BRACKET
|
|
| 11. |
124-00208D6
|
[1] |
CLIP
|
|
| 12. |
DS2105146
|
[1] |
HOSE
|
|
| 13. |
S8450012
|
[1] |
CLAMP
|
|
| 14. |
S2212266
|
[2] |
BOLT
|
|
| 15. |
S5110603
|
[2] |
WASHER
|
|
| 16. |
S0515066
|
[6] |
BOLT
|
|
| 16. |
DS0025019
|
[6] |
BOLT
|
|
| 17. |
K1001029
|
[8] |
BOLT
|
|
| 18. |
190-01172
|
[1] |
PLATE,NAME
|
|
| 19. |
S8450023
|
[2] |
CLAMP
|
|
| 2. |
421-00023
|
[1] |
VALVE ASS'Y;CHECK
|
|
| 20. |
124-00208D9
|
[4] |
CLIP
|
|
| 21. |
S8000291
|
[1] |
O-RING
|
|
| 22. |
K1024144
|
[1] |
TOGGLE SWITCH ASS'Y
|
|
| 22-1. |
549-00093
|
[1] |
. SWITCH
|
|
| 22-2. |
530-00214A
|
[1] |
. HARNESS;JOINT
|
|
| 23. |
2120-2187
|
[2] |
BOLT
|
|
| 24. |
124-00208D7
|
[1] |
CLIP
|
|
| 25. |
120804-00079
|
[6] |
WASHER
|
|
| 3. |
185-00412D1
|
[1] |
HOSE;FUEL
|
|
| 4. |
S8470044
|
[2] |
CLAMP;HOSE
|
|
| 5. |
K1001300A
|
[1] |
BRACKET;FUEL PUMP
|
|
| 6. |
K1001301A
|
[1] |
COVER
|
|
| 7. |
2181-2104D8
|
[1] |
ADAPTER
|
|
| 8. |
DS2079164
|
[1] |
HOSE
|
|
| 9. |
K1001270
|
[1] |
BRACKET
|
|
