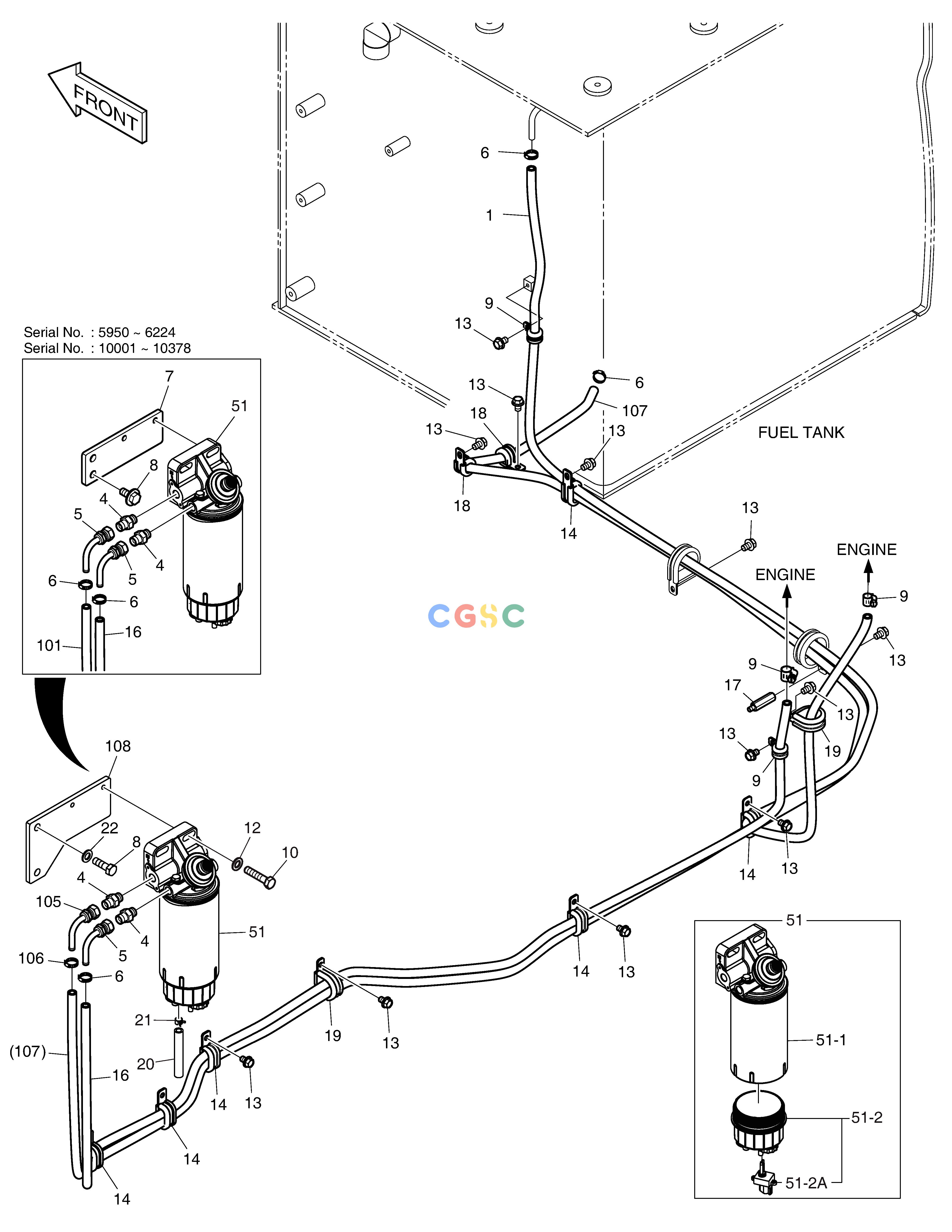

斗山零件查询FUEL PIPING DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
219 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04686
|
[-] |
|
|
| 1. |
DS2105042
|
[1] |
HOSE
|
|
| 10. |
S0561266
|
[2] |
BOLT
|
|
| 101. |
DS2105138
|
[1] |
|
|
| 105. |
K1002864
|
[1] |
ELBOW
|
|
| 106. |
S8470020
|
[1] |
CLAMP
|
|
| 107. |
DS2105138
|
[1] |
|
|
| 108. |
110413-00198
|
[1] |
|
|
| 11. |
S5102703
|
[2] |
WASHER
|
|
| 12. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 12. |
120804-00077
|
[2] |
WASHER
|
|
| 13. |
K1001029
|
[12] |
BOLT
|
|
| 14. |
124-00209D1
|
[6] |
CLIP
|
|
| 16. |
DS2105114
|
[1] |
HOSE;FUEL
|
|
| 17. |
2120-2187
|
[1] |
BOLT
|
|
| 18. |
124-00208D3
|
[2] |
CLIP
|
|
| 19. |
124-00208D6
|
[2] |
CLIP
|
|
| 20. |
DS2105131
|
[1] |
|
|
| 20. |
DS2165001
|
[1] |
|
|
| 21. |
DS2807008
|
[1] |
|
|
| 21. |
DS2809001
|
[1] |
CLIP
|
|
| 22. |
120804-00079
|
[2] |
WASHER
|
|
| 4. |
DS2479004
|
[2] |
ADAPTER
|
|
| 5. |
K1002864
|
[2] |
ELBOW
|
|
| 5. |
K1002864
|
[1] |
ELBOW
|
|
| 51. |
400403-00207
|
[1] |
|
400403-00207A
|
| 51. |
400403-00207A
|
[1] |
|
|
| 51-1. |
400508-00063
|
[1] |
PRE FILTRE A ESSENCE
|
|
| 51-2. |
110964-00022
|
[1] |
. BOWL
|
|
| 51-2A. |
301308-00562
|
[1] |
.. SENSOR,LEVEL
|
|
| 6. |
S8450012
|
[5] |
CLAMP
|
|
| 6. |
S8450012
|
[6] |
CLAMP
|
|
| 7. |
110406-02941
|
[1] |
|
|
| 8. |
DS0025025
|
[2] |
BOLT
|
|
| 8. |
S0515266
|
[2] |
BOLT
|
|
| 9. |
124-00208D2
|
[2] |
CLAMP
|
|
