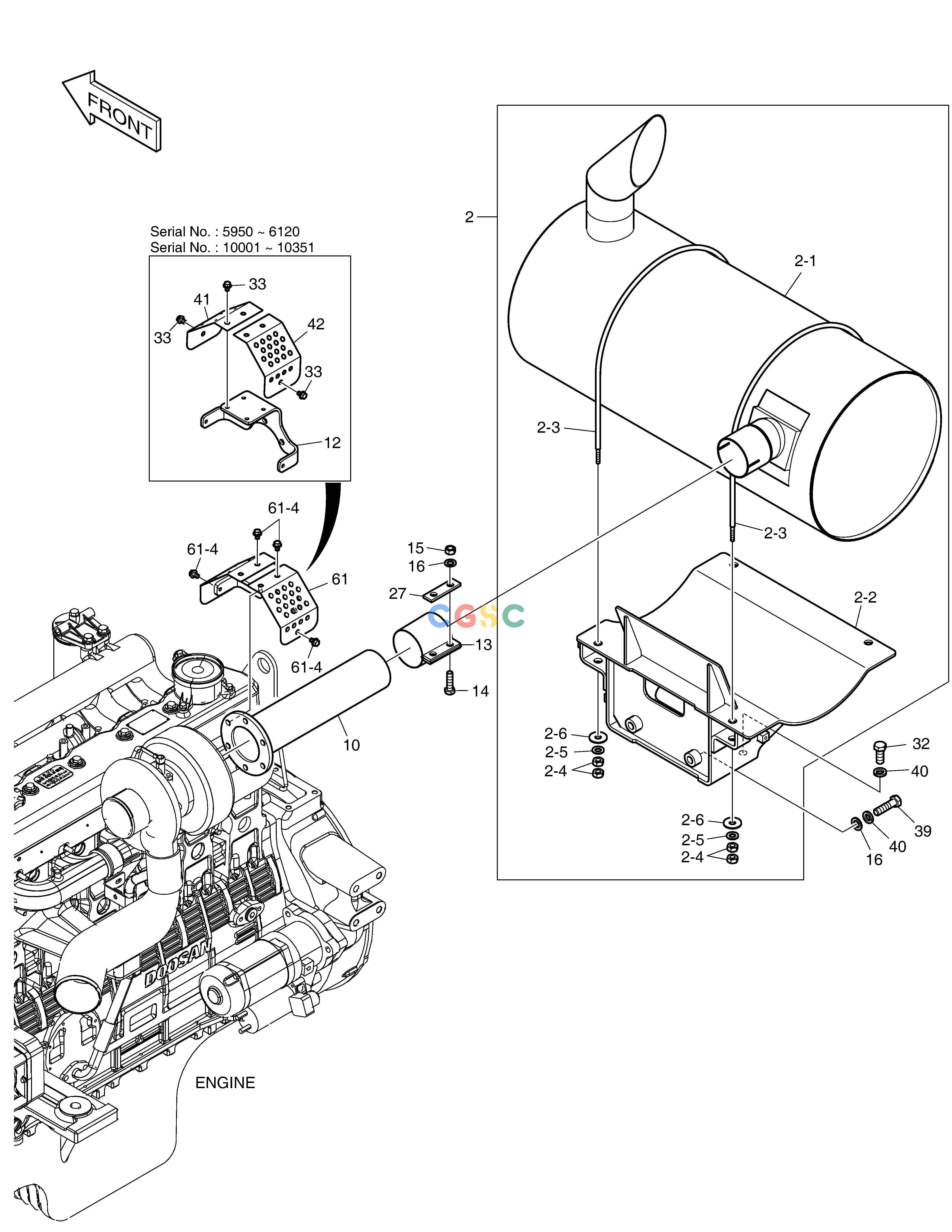

斗山零件查询MUFFLER DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
788 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00466
|
[-] |
|
|
| 10. |
2182-1697A
|
[1] |
PIPE;EXHAUST
|
|
| 12. |
195-02192A
|
[1] |
BRACKET
|
|
| 13. |
2124-1591A
|
[1] |
CLAMP
|
|
| 13. |
120203-00615
|
[1] |
|
|
| 14. |
S0515566
|
[2] |
BOLT
|
|
| 15. |
S4012733
|
[2] |
NUT
|
|
| 16. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 2. |
240103-00197B
|
[1] |
|
240103-00772
|
| 2. |
240103-00772
|
[1] |
|
|
| 2-1. |
240103-00526
|
[1] |
|
|
| 2-1. |
240103-00704A
|
[1] |
|
|
| 2-2. |
110421-00037
|
[1] |
|
|
| 2-3. |
120-00302A
|
[2] |
BOLT;U
|
|
| 2-4. |
S4012633
|
[8] |
NUT
|
|
| 2-5. |
S5010613
|
[4] |
WASHER
|
|
| 2-6. |
2114-1058D1
|
[4] |
WASHER
|
|
| 27. |
2114-1925
|
[1] |
SPACER
|
|
| 32. |
S0515266
|
[4] |
BOLT
|
|
| 33. |
120-00276
|
[6] |
BOLT M8X1.25X12
|
|
| 39. |
S0786453
|
[2] |
BOLT;HEX.
|
|
| 40. |
S5102703
|
[6] |
WASHER
|
|
| 41. |
621-02364
|
[1] |
COVER
|
|
| 42. |
621-02363
|
[1] |
COVER
|
|
| 61. |
110506-00333
|
[1] |
|
|
| 61-4. |
K1001029
|
[6] |
BOLT
|
|
