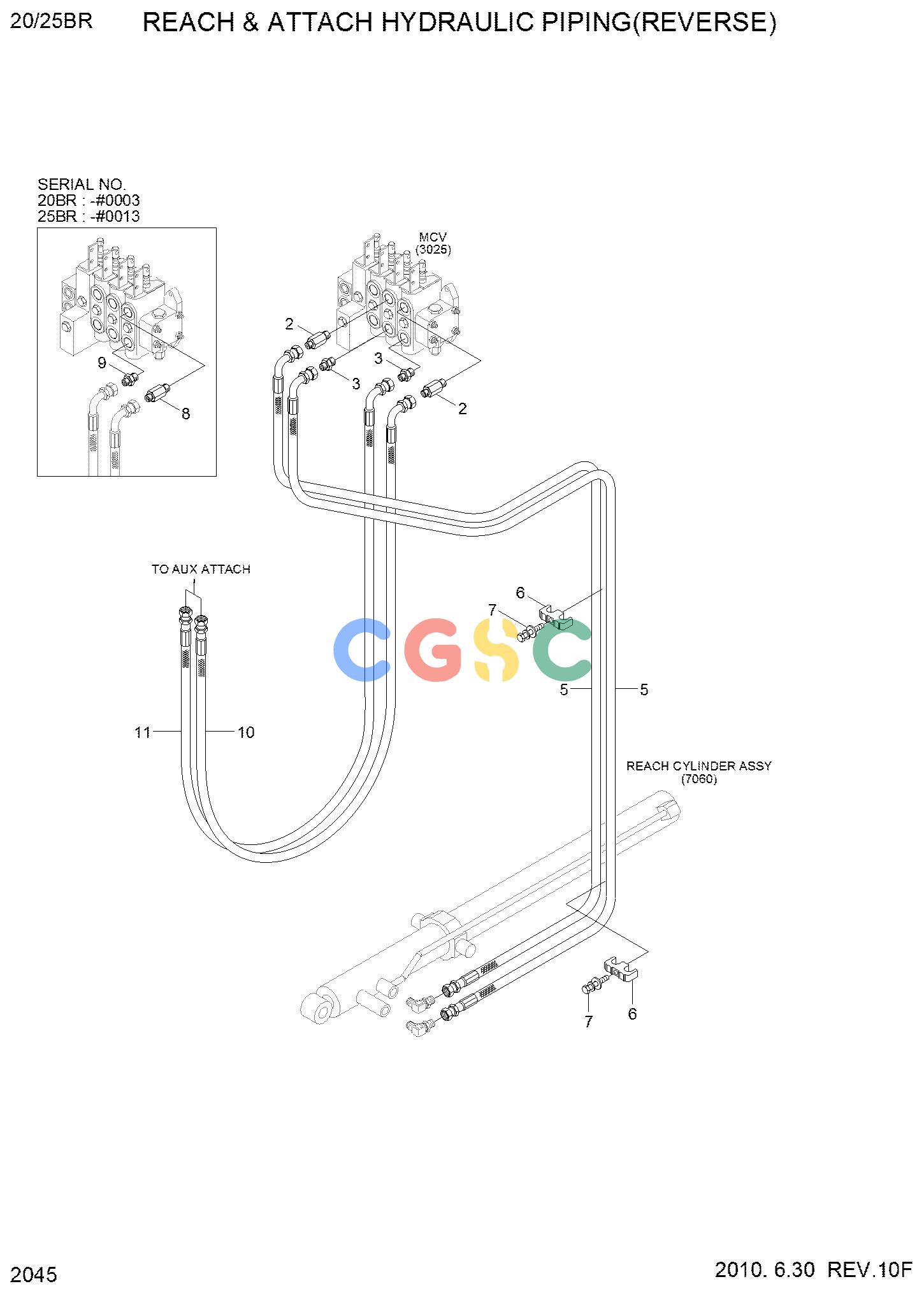

现代零件查询20/25BR-7 REACH & ATTACH HYDRAULIC PIPING(REVERSE)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
633 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
X515-109524
|
[2] |
CONNECTOR-LONG,ORFS
|
|
| 2. |
X515-109524
|
[1] |
CONNECTOR-LONG,ORFS
|
|
| 2. |
X515-109524
|
[2] |
CONNECTOR-LONG,ORFS
|
|
| 3. |
31FG-80410
|
[2] |
CONNECTOR-ORFS
|
|
| 3. |
31FG-80410
|
[1] |
CONNECTOR-ORFS
|
|
| 3. |
31FG-80410
|
[2] |
CONNECTOR-ORFS
|
|
| 4. |
P930-064036
|
[2] |
HOSE ASSY-ORFS 0X90
|
|
| 6. |
31HH-10020
|
[2] |
CLAMP-HOSE
|
|
| 7. |
S035-084526
|
[2] |
BOLT-W/WASHER
|
|
| 8. |
X515-109514
|
[1] |
CONNECTOR-LONG,ORFS
|
|
| 9. |
31FS-70040
|
[1] |
CONNECTOR-ORFS
|
|
| 10. |
P930-063047
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 10. |
P930-044047
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 10. |
P930-063047
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 11. |
P930-063046
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 11. |
P930-044046
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 11. |
P930-063046
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
