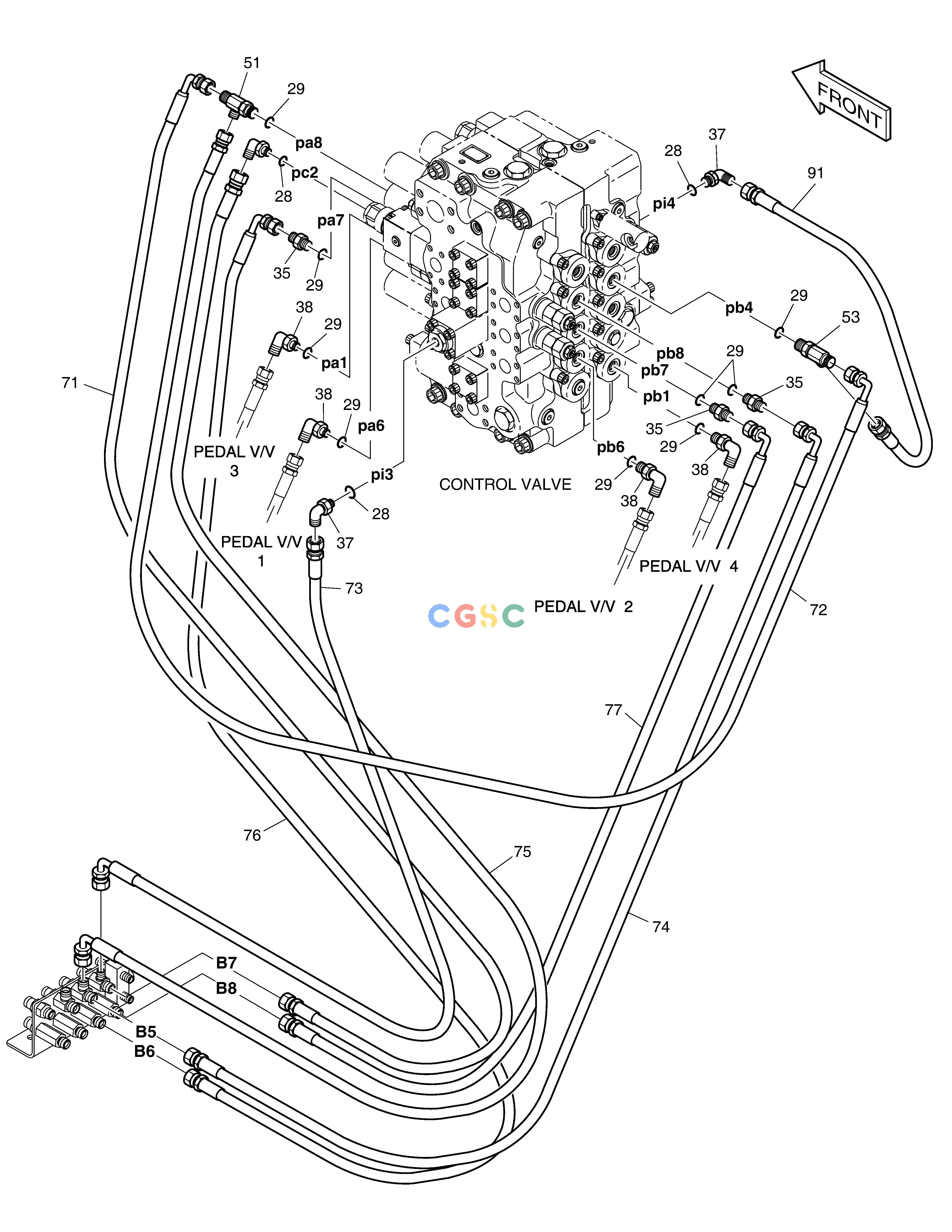

斗山零件查询PILOT PIPING(4) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
183 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04790
|
[-] |
|
|
| 28. |
S8000111
|
[3] |
O-RING
|
|
| 29. |
S8000141
|
[9] |
O-RING
|
|
| 35. |
2181-1126D7
|
[3] |
ADAPTER
|
|
| 37. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 38. |
2181-1702D10
|
[4] |
ELBOW
|
|
| 51. |
2181-1951D16
|
[1] |
TEE
|
|
| 53. |
2181-1951D6
|
[1] |
TEE
|
|
| 71. |
DS2093154
|
[1] |
HOSE
|
|
| 72. |
DS2093020
|
[1] |
HOSE
|
|
| 73. |
DS2093156
|
[1] |
HOSE
|
|
| 74. |
DS2093152
|
[1] |
HOSE
|
|
| 75. |
DS2093063
|
[1] |
HOSE
|
|
| 76. |
DS2093153
|
[1] |
HOSE
|
|
| 77. |
DS2093022
|
[1] |
HOSE
|
|
| 91. |
DS2094010
|
[1] |
HOSE
|
|
