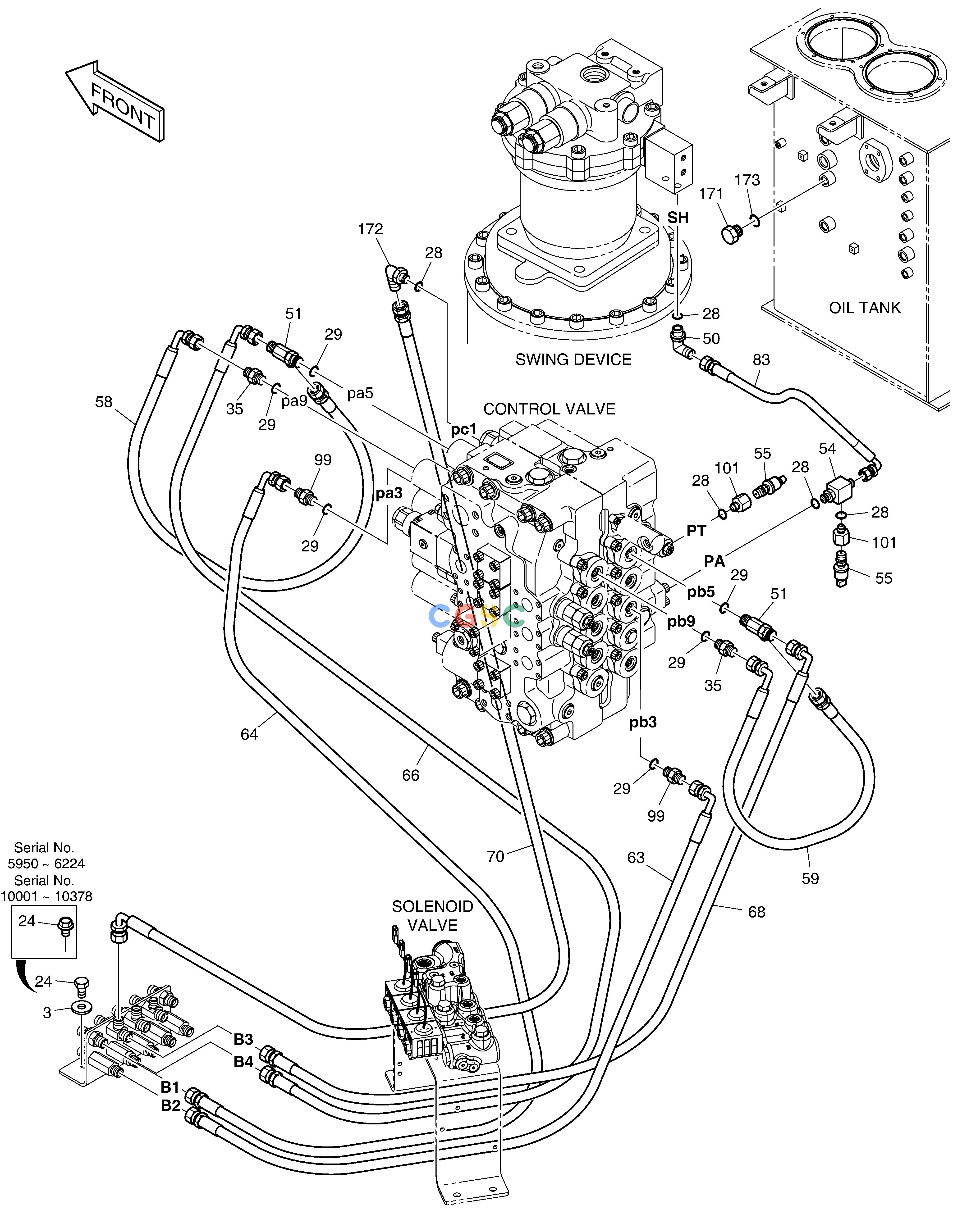

斗山零件查询PILOT PIPING(3) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
631 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04790
|
[-] |
|
|
| 101. |
430223-00011A
|
[2] |
|
430223-00011B
|
| 101. |
430223-00011B
|
[2] |
|
|
| 171. |
2181-1950D3
|
[1] |
PLUG
|
|
| 172. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 173. |
S8000181
|
[1] |
O-RING
|
|
| 24. |
DS0025017
|
[2] |
BOLT
|
|
| 24. |
S0511866
|
[2] |
BOLT
|
|
| 28. |
S8000111
|
[5] |
O-RING
|
|
| 29. |
S8000141
|
[6] |
O-RING
|
|
| 3. |
120804-00078
|
[2] |
WASHER
|
|
| 35. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 50. |
2181-1702D57
|
[1] |
ELBOW
|
|
| 51. |
2181-1951D16
|
[2] |
TEE
|
|
| 54. |
2181-2635
|
[1] |
TEE
|
|
| 55. |
2549-9112
|
[2] |
SWITCH;PRESSURE
|
|
| 58. |
DS2093033
|
[1] |
HOSE
|
|
| 59. |
DS2093029
|
[1] |
HOSE
|
|
| 63. |
DS2093064
|
[1] |
HOSE(ST-90)
|
|
| 64. |
DS2093150
|
[1] |
HOSE(ST-90)
|
|
| 66. |
DS2093151
|
[1] |
HOSE
|
|
| 68. |
DS2093151
|
[1] |
HOSE
|
|
| 70. |
DS2093018
|
[1] |
HOSE
|
|
| 83. |
DS2154036
|
[1] |
|
|
| 99. |
181-00144D6
|
[2] |
ADAPTER
|
|
