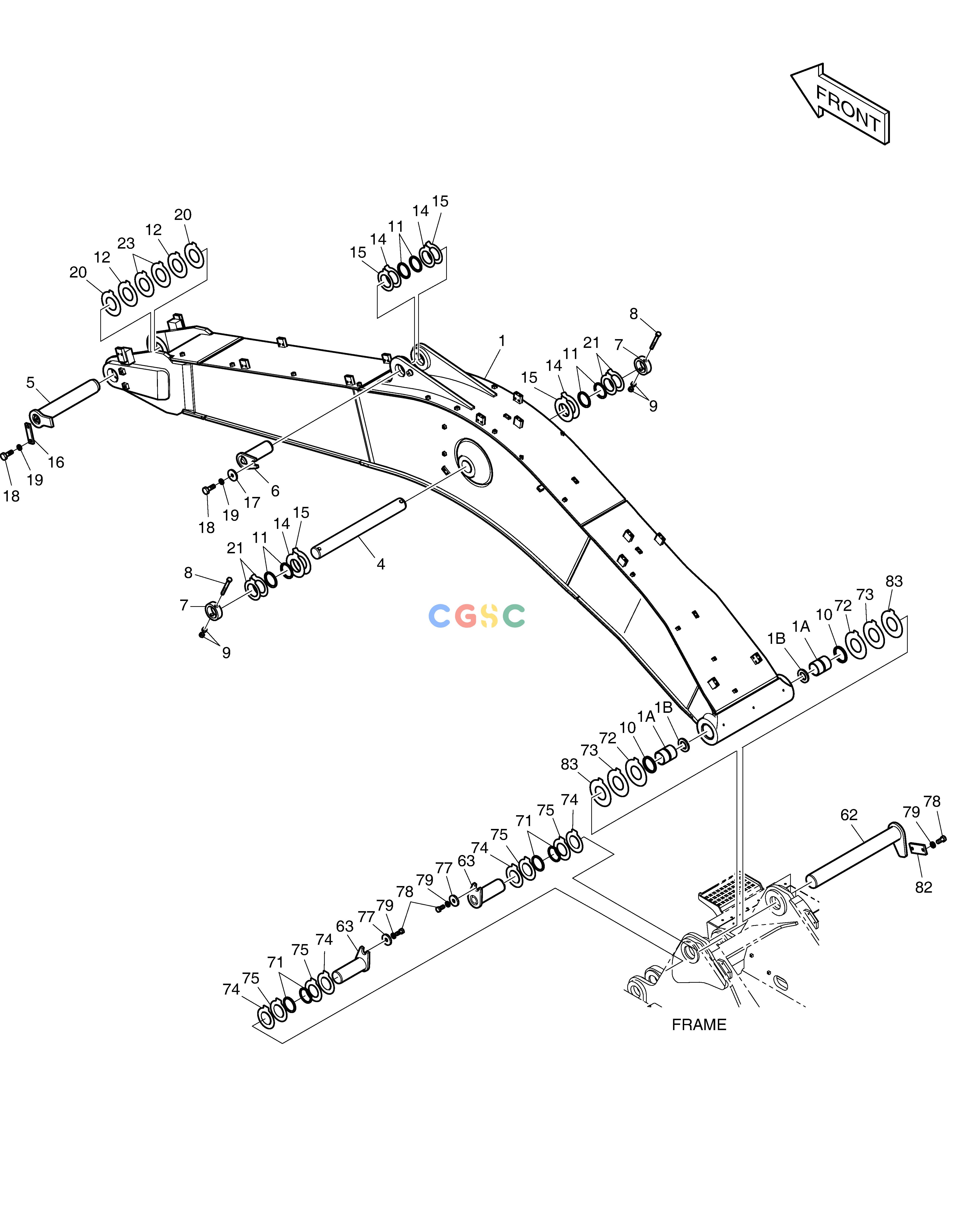

斗山零件查询BOOM - 6.5m DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
243 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230207-00142
|
[-] |
|
|
| 1. |
230211-00130C
|
[1] |
|
|
| 10. |
2180-1106BD15
|
[2] |
SEAL;DUST
|
|
| 11. |
2180-1106BD14
|
[6] |
SEAL;DUST
|
|
| 12. |
DS7752050
|
[2] |
SHIM
|
|
| 14. |
DS7752045
|
[4] |
CALE
|
|
| 15. |
DS7752046
|
[4] |
SHIM
|
|
| 16. |
2191-2205D8
|
[1] |
PLATE;STOPPER
|
|
| 17. |
2116-1060D5
|
[1] |
STOPPER
|
|
| 18. |
S0521366
|
[3] |
BOLT
|
|
| 19. |
S5102903
|
[3] |
WASHER
|
|
| 1A. |
K1003909
|
[2] |
BUSHING
|
|
| 1B. |
2180-1106BD15
|
[2] |
SEAL;DUST
|
|
| 20. |
DS7752049
|
[2] |
SHIM
|
|
| 21. |
DS7752044
|
[4] |
SHIM
|
|
| 23. |
DS7752106
|
[2] |
SHIM
|
|
| 4. |
K1005726B
|
[1] |
PIN
|
|
| 5. |
K1039626
|
[1] |
PIN
|
120501-03792
|
| 5. |
120501-03792
|
[1] |
|
|
| 6. |
120501-01087
|
[1] |
|
|
| 62. |
K1005722B
|
[1] |
PIN
|
|
| 62. |
120501-03108
|
[1] |
|
|
| 63. |
K1039627A
|
[2] |
PIN
|
|
| 63. |
120501-03958
|
[2] |
|
|
| 7. |
2116-1539
|
[2] |
STOPPER
|
|
| 7. |
110956-00503
|
[2] |
|
|
| 71. |
2180-1106BD14
|
[4] |
SEAL;DUST
|
|
| 72. |
DS7752050
|
[2] |
SHIM
|
|
| 73. |
DS7752051
|
[2] |
SHIM
|
|
| 74. |
DS7752045
|
[4] |
CALE
|
|
| 75. |
DS7752046
|
[4] |
SHIM
|
|
| 77. |
2116-1060D5
|
[2] |
STOPPER
|
|
| 78. |
S0521366
|
[4] |
BOLT
|
|
| 79. |
S5102903
|
[4] |
WASHER
|
|
| 8. |
S0571966
|
[2] |
BOLT M20X2.5X180
|
|
| 82. |
K1002345A
|
[1] |
PLATE
|
|
| 82. |
250201-03150
|
[1] |
|
|
| 83. |
DS7752106
|
[2] |
SHIM
|
|
| 9. |
S4013133
|
[4] |
NUT
|
|
