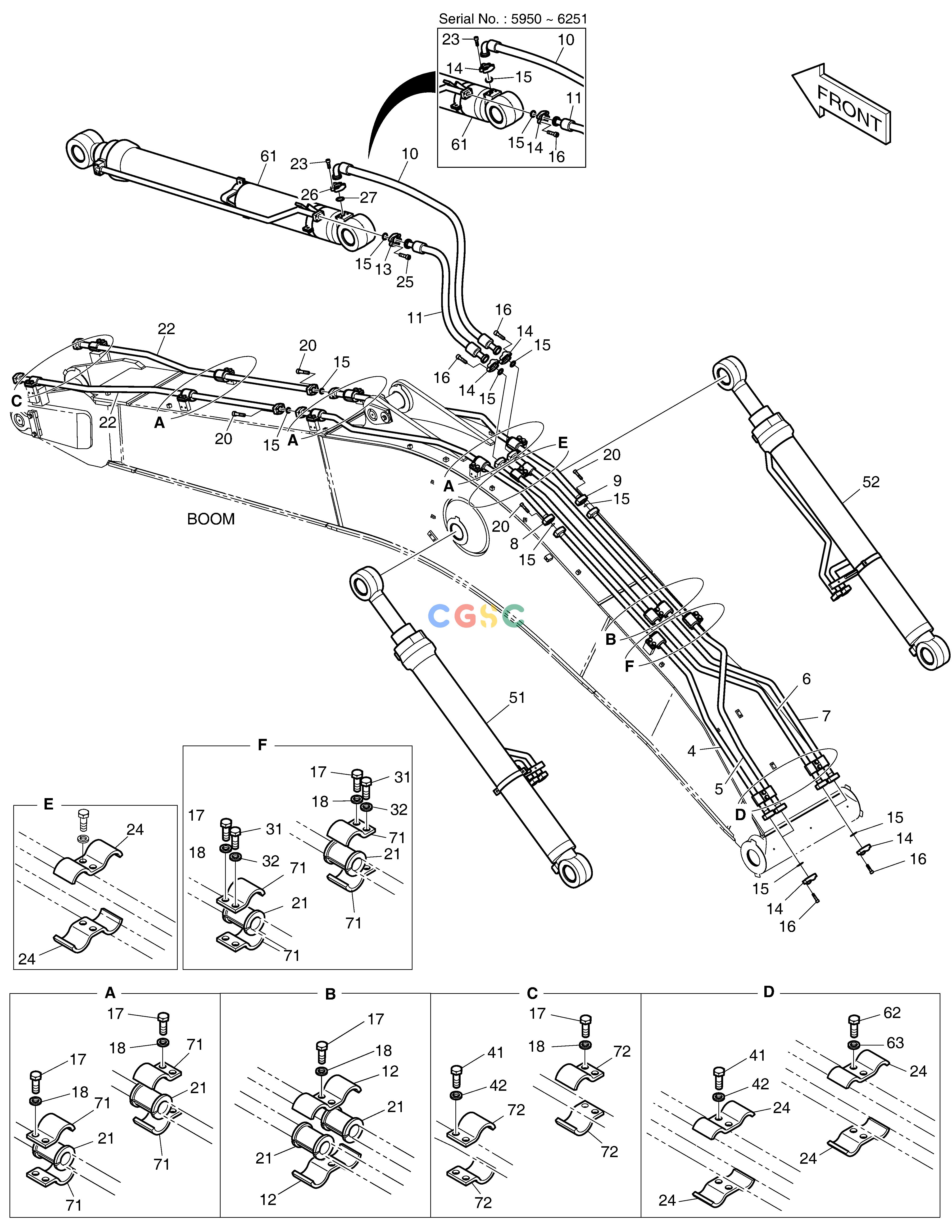

斗山零件查询BOOM PIPING DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
713 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01280
|
[-] |
|
|
| 10. |
2184-1100D129
|
[1] |
HOSE
|
|
| 10. |
DS20401427
|
[1] |
|
|
| 11. |
DS2038208
|
[1] |
HOSE
|
|
| 11. |
DS2038539
|
[1] |
|
|
| 12. |
K1004055
|
[2] |
CLAMP;PIPE
|
|
| 13. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 14. |
2181-9078
|
[16] |
FLANGE;SPLIT
|
|
| 14. |
2181-9078
|
[12] |
FLANGE;SPLIT
|
|
| 15. |
2180-1026D19
|
[12] |
O-RING
|
DS2856003
|
| 15. |
DS2856003
|
[11] |
O-RING
|
|
| 16. |
S2212466
|
[28] |
BOLT
|
|
| 16. |
S2212466
|
[24] |
BOLT
|
|
| 17. |
S0562766
|
[20] |
BOLT
|
|
| 18. |
120804-00080
|
[20] |
WASHER
|
|
| 20. |
S2212666
|
[12] |
BOLT;SOCKET M10X1.5X50
|
|
| 21. |
161-00281
|
[10] |
RUBBER
|
180308-00235
|
| 21. |
180308-00235
|
[10] |
|
|
| 22. |
420207-00282
|
[2] |
|
420207-00282A
|
| 22. |
420207-00282A
|
[2] |
|
|
| 23. |
S2212266
|
[4] |
BOLT
|
|
| 24. |
K1004058
|
[6] |
CLAMP;PIPE
|
|
| 25. |
S2215666
|
[4] |
BOLT;SOCKET
|
|
| 26. |
2181-9086
|
[2] |
FLANGE;SPLIT
|
|
| 27. |
DS2856004
|
[1] |
O-RING
|
|
| 31. |
S0562766
|
[2] |
BOLT
|
|
| 32. |
120804-00080
|
[2] |
WASHER
|
|
| 4. |
420207-00274
|
[1] |
|
420207-00274B
|
| 4. |
420207-00274B
|
[1] |
|
|
| 41. |
S0562766
|
[4] |
BOLT
|
|
| 42. |
120804-00080
|
[4] |
WASHER
|
|
| 5. |
420207-00275
|
[1] |
|
420207-00275B
|
| 5. |
420207-00275B
|
[1] |
|
|
| 51. |
400309-00084B
|
[1] |
|
|
| 51. |
400309-00084C
|
[1] |
|
|
| 52. |
400309-00085B
|
[1] |
|
|
| 52. |
400309-00085C
|
[1] |
|
|
| 6. |
420207-00276
|
[1] |
|
420207-00276A
|
| 6. |
420207-00276A
|
[1] |
|
|
| 61. |
400305-00055C
|
[1] |
|
|
| 61. |
400305-00565
|
[1] |
|
|
| 62. |
S0562766
|
[2] |
BOLT
|
|
| 63. |
120804-00080
|
[2] |
WASHER
|
|
| 7. |
420207-00277
|
[1] |
|
420207-00277A
|
| 7. |
420207-00277A
|
[1] |
|
|
| 71. |
K1004056
|
[16] |
CLAMP;PIPE
|
|
| 72. |
K1004057
|
[4] |
CLAMP;PIPE
|
|
| 8. |
420207-00278
|
[1] |
|
|
| 8. |
420207-00278B
|
[1] |
|
|
| 9. |
420207-00279
|
[1] |
|
|
| 9. |
420207-00279B
|
[1] |
|
|
