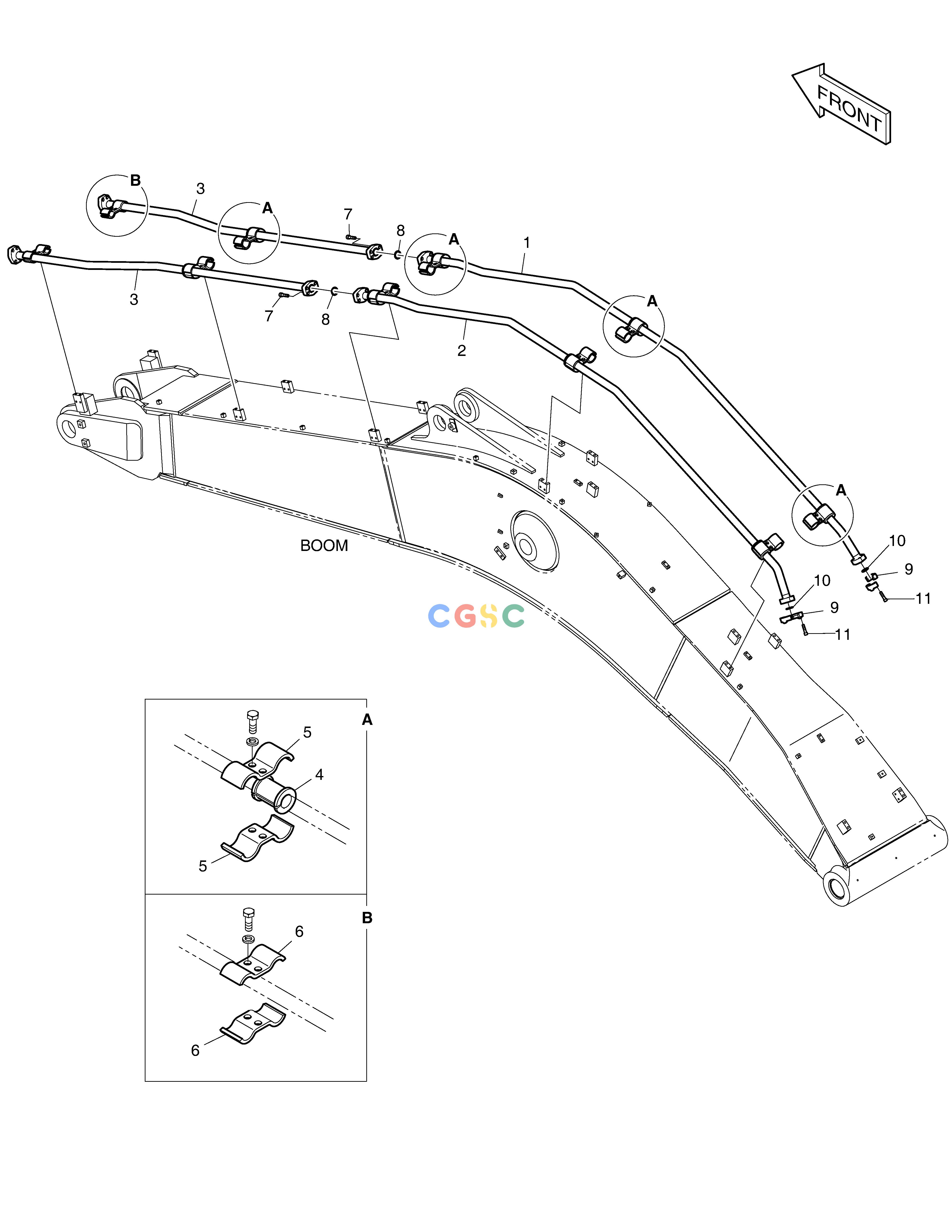

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-05345 | [-] | ||
| 1. | 420207-01486A | [1] | ||
| 10. | 2180-1026D19 | [2] | O-RING | |
| 11. | S2215666 | [8] | BOLT;SOCKET | |
| 2. | 420207-01487A | [1] | ||
| 3. | 420207-01488 | [2] | ||
| 4. | 161-00280 | [8] | RUBBER | 180308-00236 |
| 4. | 180308-00236 | [8] | ||
| 5. | K1004059 | [16] | CLAMP | |
| 6. | K1004060 | [4] | CLAMP | |
| 7. | S2218766 | [8] | BOLT;SOCKET | |
| 8. | 2180-1026D23 | [2] | O-RING | |
| 9. | 2181-9081 | [4] | FLANGE;SPLIT |
