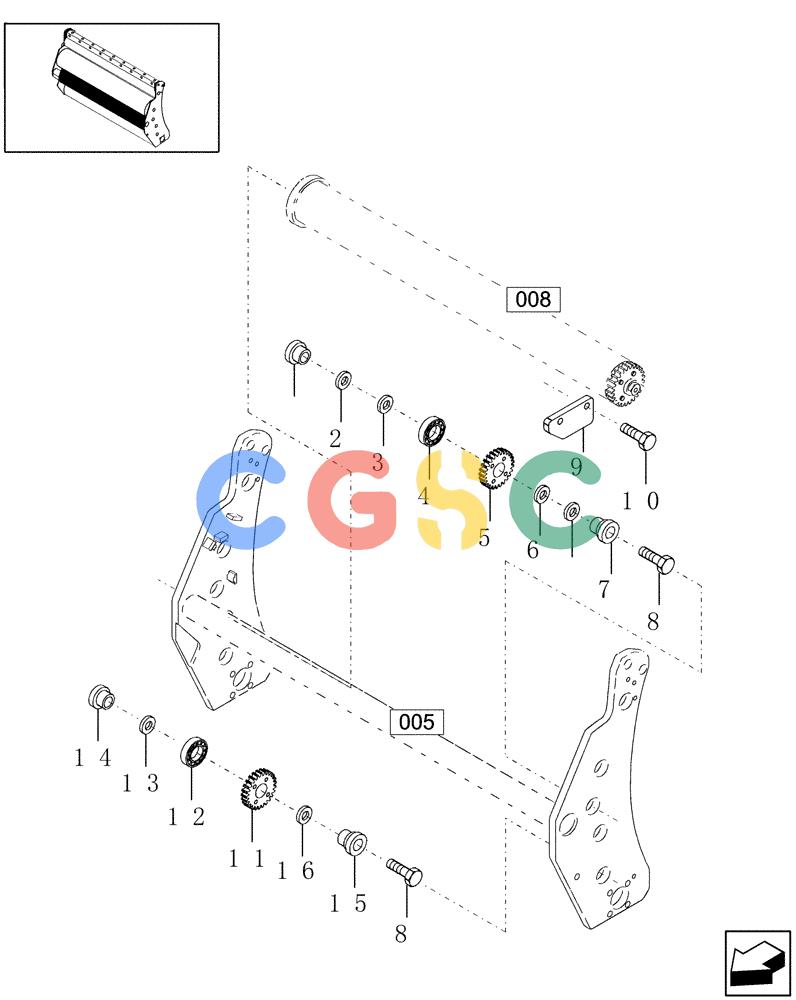

凯斯零件查询(RBX451) - CASE IH ROUND BALER (12/01-10/02) (011) - IDLER GEARS, SLEDGE ROLL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9843939
|
[1] |
CAP
|
NH
|
| 2. |
100-28283
|
[1] |
SNAP RING,2.812", Int, #283
|
CAS
Superseded by part number: 9824626
|
| 3. |
86637167
|
[1] |
WASHER,61.2mm ID x 71.8mm OD x 2.7mm Thk
|
NH
2-13/16" OD, Heat Treated
|
| 4. |
9808112
|
[1] |
BALL BEARING,34.99mm ID x 71.88mm OD x 25mm W
|
NH
|
| 5. |
9806931
|
[1] |
IDLER GEAR,17T
|
NH
17T, Sledge Roll Drive
|
| 6. |
86637157
|
[1] |
SHIELD
|
NH
|
| 7. |
86636893
|
[1] |
BUSHING,27.18mm ID x 47.63mm OD x 34mm L
|
NH
Bearing
|
| 7A. |
9800957
|
[1] |
WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk
|
NH
|
| 8. |
614-12030
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 9. |
86636891
|
[1] |
PLATE
|
NH
Support
|
| 10. |
412093
|
[2] |
SELF-TAP SCREW
|
NH
M6 x 1 x 12
|
| 11. |
86587823
|
[1] |
IDLER GEAR
|
NH
24T
|
| 12. |
9860230
|
[1] |
BALL BEARING,44.99mm ID x 85.02mm OD x 27mm W
|
NH
Superseded by part number: 86553237
|
| 13. |
800-2185
|
[1] |
SNAP RING,M85 x 3, Int
|
CAS
Superseded by part number: 370021
|
| 14. |
86543616
|
[1] |
CAP COVER
|
NH
|
| 15. |
86637273
|
[1] |
BUSHING
|
NH
|
| 16. |
86637272
|
[1] |
SHIELD,46mm ID x 77mm OD x 4.2mm Thk
|
NH
|
