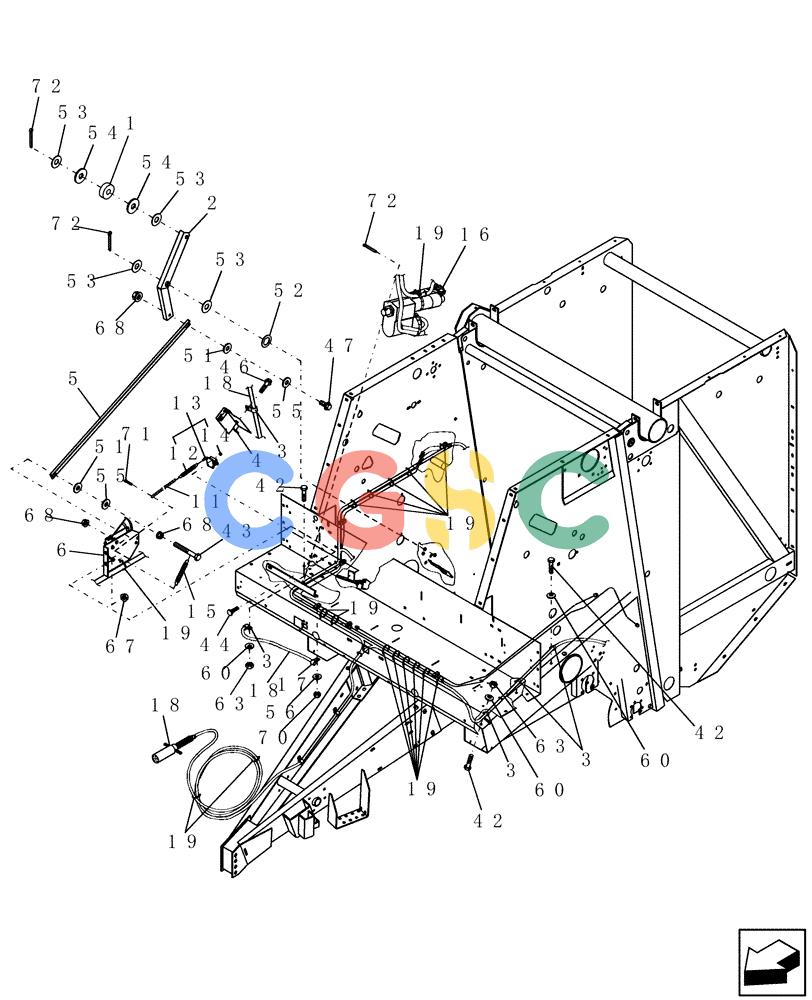

| 1. |
86637849
|
[1] |
SPACER
|
NH
|
| 2. |
86631637
|
[1] |
PIVOT ASSY.
|
NH
Includes: Ref. 73
|
| 3. |
515-23127
|
[1] |
CLAMP,1/2", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86010402
|
| 4. |
86511226
|
[1] |
SHIELD
|
NH
|
| 5. |
86631638
|
[1] |
ANGLE
|
NH
|
| 6. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Switch, Electric Twine Wrap, Serial Range: Refer-Fig.020
|
| 11. |
197559
|
[1] |
CHAIN,9" L
|
NH
#16, 9" L
|
| 12. |
197717
|
[1] |
SPRING
|
NH
|
| 13. |
86608973
|
[1] |
BALE COUNTER
|
NH
Includes: Spring & (2) #5 Nuts
|
| 14. |
225-14105
|
[2] |
NUT,#5-40
|
CAS
Superseded by part number: 280597
|
| 15. |
32306
|
[1] |
SPRING
|
NH
|
| 16. |
86610542
|
[1] |
ACTUATOR
|
PA
Electric Twine Wrap Superseded by part number: 84056960, 9672521, 322358, 412255, 87015744, 9843435, 86613601, 86977396, 84056957, 43362, 87034842, 86000439, 86616587
|
| . . |
9843435R
|
[1] |
REMAN-ELECTRIC ACTUATOR
|
NH
RBX451 (12/01-10/02), Reman for New P/N 86610542
|
| . . |
9843435C
|
[1] |
CORE-ELECTRIC ACTUATOR
|
NH
Return Number
|
| 17. |
515-23143
|
[1] |
CLAMP,9/16", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 257492, 72187280
|
| 18. |
86624226
|
[1] |
HARNESS
|
NH
Main Wire
|
| 19. |
263117
|
[21] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
CABLE STRAP
|
| 20. |
86637389
|
[2] |
SPRING
|
NH
Bale Shape
|
| 24. |
217465
|
[2] |
SPRING
|
NH
Extension
|
| 28. |
86506979
|
[1] |
SHIELD
|
NH
LH
|
| 43. |
814-10050
|
[1] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| 44. |
811-8020
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 47. |
614-10020
|
[1] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 51. |
9827956
|
[2] |
WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk
|
NH
Heat Treated
|
| 52. |
249100
|
[1] |
WASHER,0.78" ID x 1.25" OD x 0.06" Thk
|
NH
|
| 53. |
64263
|
[1] |
WASHER,13.49mm ID x 31.8mm OD x 1.5mm Thk
|
NH
|
| 54. |
124150
|
[2] |
WASHER
|
NH
Superseded by part number: 86637848
|
| 55. |
213404
|
[2] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
3/16" x 13/32" ID x 1-1/2" OD
|
| 56. |
495-11028
|
[1] |
WASHER,1/4", SAE
|
CAS
Superseded by part number: 87361, 72187256
|
| 60. |
322358
|
[8] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 63. |
825-1408
|
[4] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
| 67. |
825-5148
|
[4] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 68. |
825-51410
|
[3] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 70. |
832-46406
|
[1] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 71. |
432-88
|
[1] |
COTTER PIN,1/8" x 1/2"
|
CAS
Superseded by part number: 87394
|
| 72. |
432-816
|
[3] |
COTTER PIN,1/8" x 1"
|
CAS
Superseded by part number: 80755
|
| 73. |
219-90
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
(Not Shown) Superseded by part number: 87569
|
