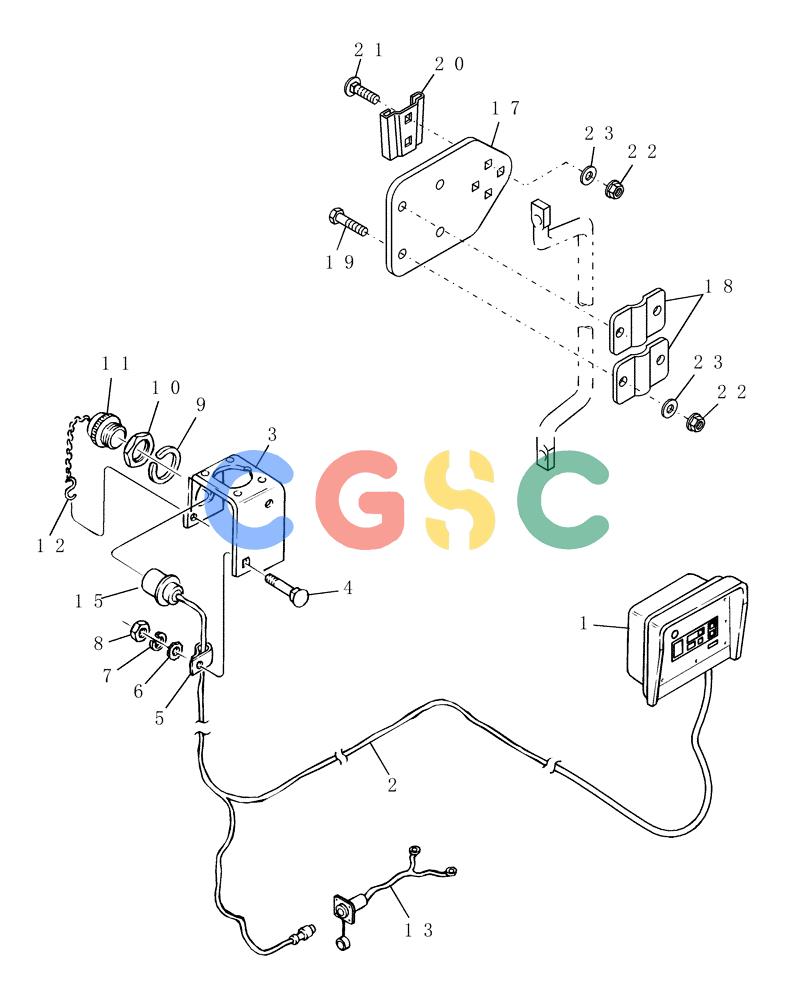

| 1. |
86622826
|
[1] |
CONTROL PANEL
|
NH
Electric Wrap Superseded by part number: 87035274
|
| 1. |
87035274R
|
[1] |
REMAN ELECT CONTROL
|
MKT
Reman for New PN 86622826
|
| 1. |
87035274C
|
[1] |
CORE-ELECTRONIC CONT
|
MKT
Return Number
|
| . . |
86622826C
|
[1] |
CORE-ELECTRONIC CONT
|
MKT
Return Number, ELECTRONIC CONTROL PANEL - for N.A. Only
|
| . . |
86529089
|
[1] |
RELAY
|
NH
|
| . . |
86502182
|
[1] |
BULB
|
NH
|
| . . |
86564681
|
[1] |
FUSE
|
NH
20 Amp
|
| . . |
86564680
|
[1] |
BUZZER
|
NH
|
| 2. |
86541282
|
[1] |
WIRE HARNESS
|
NH
Tractor, Serial Range: Refer-Fig.023
|
| 3. |
787868
|
[1] |
BRACKET
|
NH
|
| 4. |
433-412
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5
|
CAS
Superseded by part number: 88832
|
| 5. |
237980
|
[1] |
WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type
|
NH
7/16" x 1/4" Bolt
|
| 8. |
231-5144
|
[1] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
| 9. |
636665
|
[1] |
LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk
|
NH
Superseded by part number: 84607513
|
| 10. |
636666
|
[1] |
NUT,1 11/16"-18
|
NH
Superseded by part number: 459329C1
|
| 11. |
767456
|
[1] |
PLUG
|
NH
Dust Superseded by part number: 87716289
|
| 12. |
617887
|
[1] |
HOOK
|
NH
|
| 13. |
86509520
|
[1] |
WIRE HARNESS
|
NH
Power
|
| . . |
492-11006
|
[1] |
LOCK WASHER,#6
|
CAS
Superseded by part number: 87276
|
| . . |
225-14106
|
[1] |
NUT,#6-32
|
CAS
Superseded by part number: 88458, 87779111
|
| . . |
440-1068
|
[2] |
SCREW,Cross Pan Hd, #6-32 x 1/2"
|
CAS
Superseded by part number: 281007
|
| . . |
86517521
|
[1] |
KIT
|
NH
30 Amp
|
| . . |
48889
|
[2] |
TERMINAL CONNECTOR,10 - 12
|
NH
Ring, 5/16", 12-10 Ga.
|
| . . |
59272
|
[2] |
TERMINAL CONNECTOR,12 - 10
|
NH
Ring, 1/4" Ring, 12-10 Ga. Superseded by part number: 87725684
|
| . . |
59273
|
[2] |
TERMINAL CONNECTOR,10 - 12 SAE
|
NH
Ring, 3/8", 12-10 Ga.
|
| . . |
167169
|
[2] |
TERMINAL
|
NH
Superseded by part number: 767994
|
| . . |
767994
|
[2] |
TERMINAL CONNECTOR,10 - 12 SAE
|
NH
Ring, 1/2", 12-10 Ga.
|
| 15. |
9861362
|
[1] |
POWER SOCKET
|
NH
18-pin
|
| . . |
900787
|
[1] |
TERMINAL
|
NH
E 18
|
| . . |
900364
|
[4] |
TERMINAL CONNECTOR
|
NH
E 18
|
| . . |
900302
|
[2] |
TERMINAL
|
NH
E 18 Superseded by part number: 87697875
|
| 17. |
86634706
|
[1] |
BRACKET
|
NH
|
| 18. |
86635445
|
[2] |
CLAMP
|
NH
|
| 19. |
43129
|
[4] |
BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8
|
NH
Superseded by part number: 16044024
|
| 20. |
847590
|
[1] |
BRACKET
|
NH
|
| 21. |
811-8020
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 22. |
825-2408
|
[6] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 23. |
322358
|
[6] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
