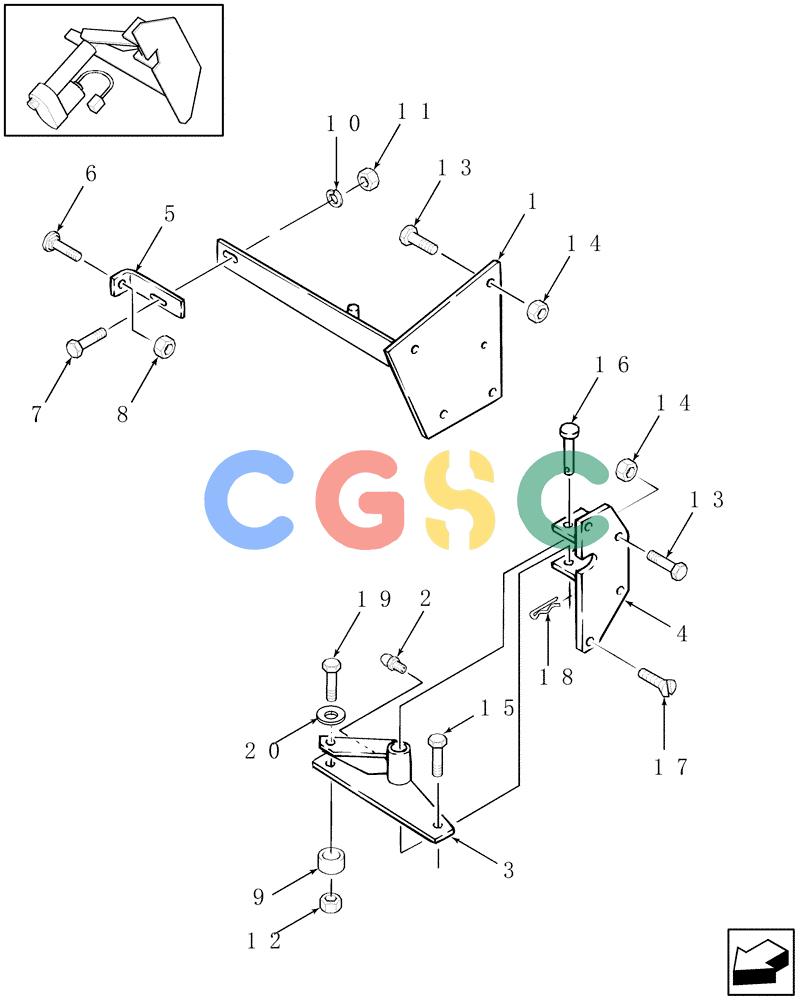

| 1. |
86636775
|
[1] |
SUPPORT
|
NH
|
| 2. |
219-87
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 3. |
86628970
|
[1] |
PIVOT ASSY.
|
NH
|
| 4. |
86636986
|
[1] |
SUPPORT
|
NH
|
| 5. |
86620938
|
[1] |
ANGLE
|
NH
|
| 6. |
811-8020
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 7. |
811-10030
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 8. |
825-5148
|
[2] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 9. |
36334
|
[1] |
GUIDE
|
NH
Superseded by part number: 86553579
|
| 10. |
492-11044
|
[6] |
LOCK WASHER,7/16"
|
CAS
Superseded by part number: 81547
|
| 11. |
825-1410
|
[4] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 12. |
832-46412
|
[2] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 13. |
614-10020
|
[8] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 14. |
825-51410
|
[13] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 15. |
614-12040
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 16. |
86636776
|
[1] |
PIN
|
NH
|
| 17. |
905-10025
|
[4] |
BOLT,Hex Flg, M10 x 25mm
|
CAS
Superseded by part number: 274251
|
| 18. |
432-816
|
[1] |
COTTER PIN,1/8" x 1"
|
CAS
Superseded by part number: 80755
|
| 19. |
814-12100
|
[1] |
BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8
|
IH
Superseded by part number: 374887
|
| 20. |
495-11053
|
[1] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
