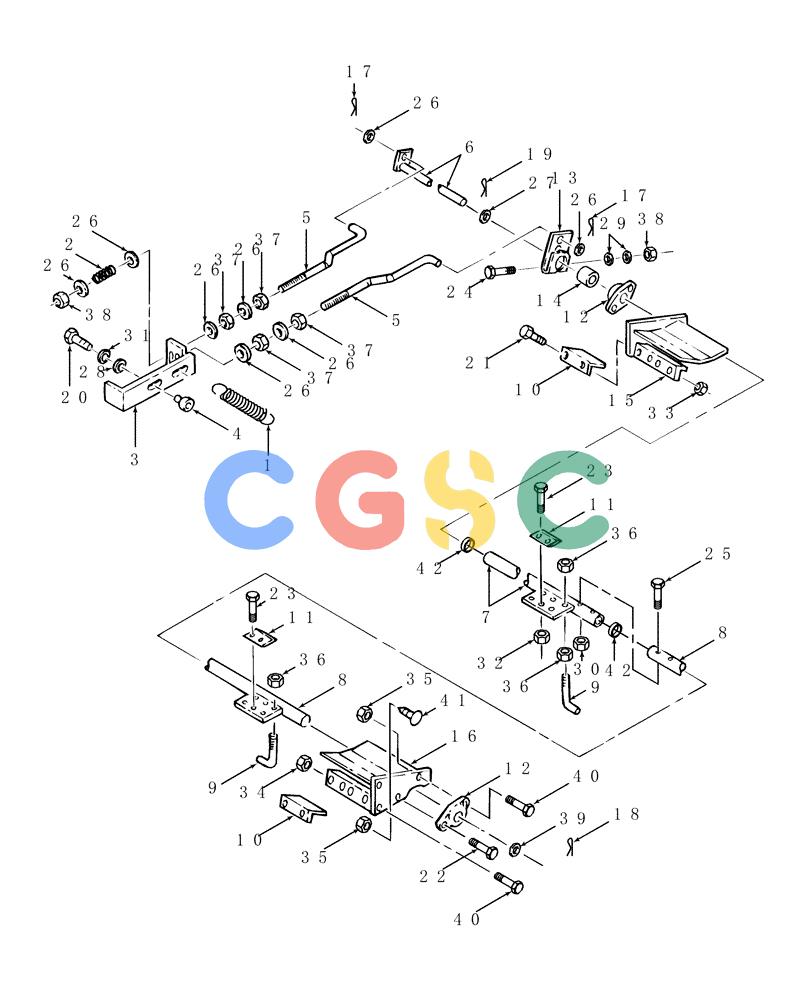

| 1. |
86559592
|
[1] |
SPRING,Extension, 0.99" OD x 6-1/4" L
|
NH
Extension
|
| 2. |
42622
|
[1] |
SPRING
|
NH
1-1/2" Lg. Superseded by part number: 86976005
|
| 3. |
86636790
|
[1] |
PLATE
|
NH
|
| 4. |
9848747
|
[1] |
SPACER
|
NH
Superseded by part number: 87023417
|
| 5. |
86636646
|
[2] |
ROD
|
NH
|
| 6. |
86636764
|
[1] |
SHAFT
|
NH
|
| 7. |
86636765
|
[1] |
TUBE
|
NH
Includes: (2) Ref. 8
|
| 8. |
86636770
|
[1] |
TUBE
|
NH
|
| 9. |
623796
|
[2] |
ROD
|
NH
L Bolt
|
| 10. |
86636771
|
[2] |
ANGLE
|
NH
Superseded by part number: 87690626
|
| 11. |
617945
|
[2] |
KNIFE SECTION
|
NH
Twine Cutting
|
| 12. |
608566
|
[2] |
NYLON BEARING,26.56 mm ID x 14 mm
|
NH
Bearing Superseded by part number: 87051636
|
| 13. |
86636634
|
[1] |
CLAMP
|
NH
|
| 14. |
86636638
|
[1] |
HUB
|
NH
|
| 15. |
86628312
|
[1] |
ANGLE
|
NH
RH
|
| 16. |
86628311
|
[1] |
ANGLE
|
NH
LH
|
| 17. |
432-812
|
[2] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 18. |
432-824
|
[1] |
COTTER PIN,1/8" x 1 1/2"
|
CAS
Superseded by part number: 80708
|
| 19. |
432-1220
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Superseded by part number: 87398
|
| 20. |
814-10050
|
[1] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| 21. |
614-8020
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm
|
CAS
Superseded by part number: 120104
|
| 22. |
614-10020
|
[1] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| 23. |
811-6016
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 86512439
|
| 24. |
413-644
|
[1] |
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
|
CAS
Superseded by part number: 88444
|
| 25. |
461-33120
|
[1] |
HEX SOC SCREW,5/16"-18 x 1 1/4"
|
CAS
Superseded by part number: 280699
|
| 26. |
495-21044
|
[8] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 27. |
495-21069
|
[1] |
WASHER,5/8"
|
CAS
Superseded by part number: 80299
|
| 28. |
58225
|
[1] |
WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk
|
NH
Special, 1-1/4" OD Superseded by part number: 87654824
|
| 29. |
285072
|
[2] |
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
|
NH
(3/8")
|
| 30. |
280736
|
[1] |
NUT,5/16"-18, GC
|
NH
|
| 31. |
495-11106
|
[1] |
WASHER,1", SAE
|
CAS
Superseded by part number: 87367
|
| 32. |
825-5146
|
[1] |
SERRATED NUT,M6, Flg Ser
|
CAS
Superseded by part number: 86511444
|
| 33. |
825-5148
|
[1] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 34. |
825-51410
|
[1] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 35. |
832-46410
|
[2] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 36. |
425-105
|
[3] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 37. |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 39. |
26402
|
[1] |
WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk
|
NH
(.060" Thk, 1-1/2" OD)
|
| 40. |
614-10030
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 41. |
905-10025
|
[1] |
BOLT,Hex Flg, M10 x 25mm
|
CAS
Superseded by part number: 274251
|
| 42. |
617768
|
[2] |
BUSHING
|
NH
|
