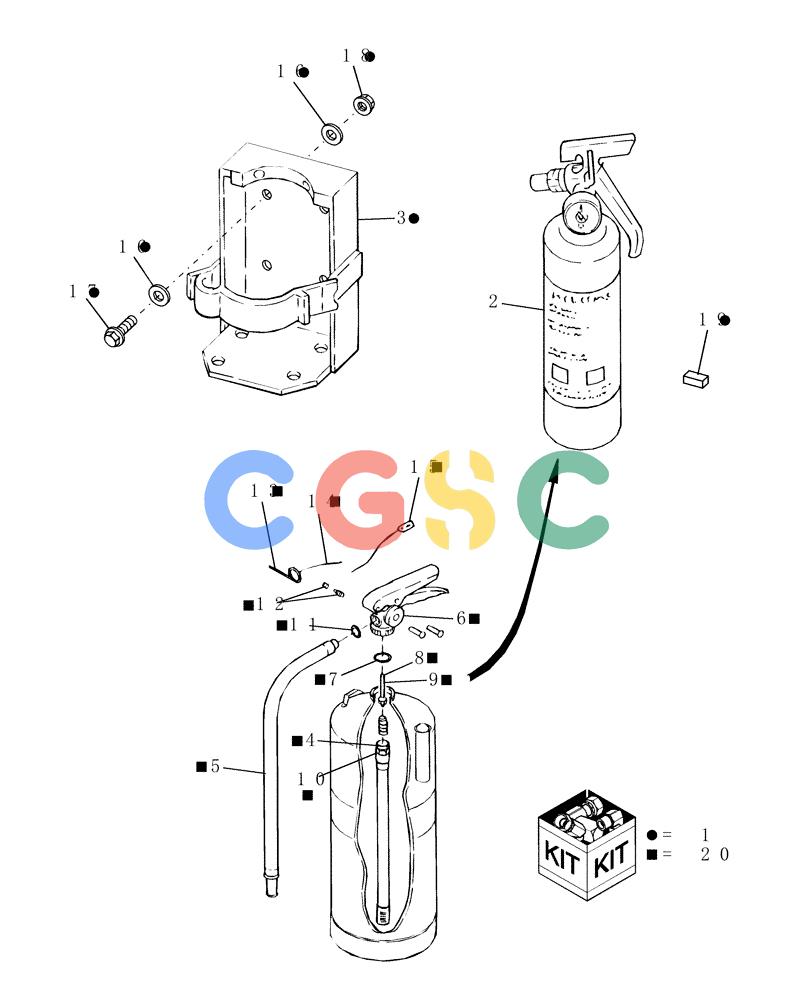

凯斯零件查询(RBX451) - CASE IH ROUND BALER (12/01-10/02) (060) - FIRE EXTINGUISHER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
704 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86705052
|
[1] |
DIA KIT, HARVESTER
|
NH
Fire Extinguisher, Includes: Ref. 2 - 19 & Instructions Superseded by part number: 87347920
|
| 2. |
9827423
|
[1] |
FIRE EXTINGUISHER,Classification A
|
NH
|
| 3. |
9827422
|
[1] |
BRACKET
|
NH
|
| 4. |
9843201
|
[1] |
TUBE
|
NH
Superseded by part number: 9827423
|
| 5. |
9843202
|
[1] |
FLEXIBLE HOSE
|
NH
Superseded by part number: 9827423
|
| 6. |
9843203
|
[1] |
GAUGE
|
NH
100 PSI Superseded by part number: 9827423
|
| 7. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Collar, O-Ring
|
| 16. |
495-21038
|
[8] |
WASHER,5/16"
|
CAS
Superseded by part number: 80664, 72187263
|
| 17. |
844-8020
|
[4] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 18. |
825-2408
|
[4] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 19. |
93444
|
[1] |
SEALING STRIP
|
NH
|
| 20. |
9843204
|
[1] |
REPAIR KIT
|
NH
Superseded by part number: 9827423
|
