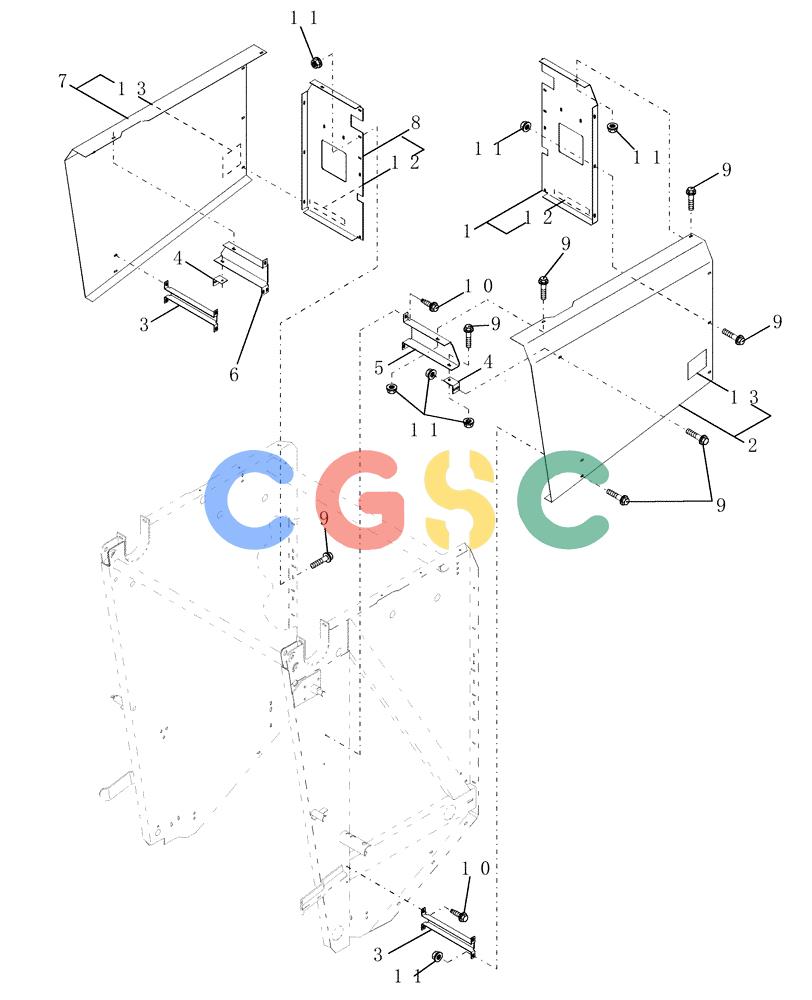

凯斯零件查询(RBX451) - CASE IH ROUND BALER (12/01-10/02) (033) - SHIELDING, TAILGATE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
324 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86627279
|
[1] |
SHIELD
|
NH
Rear, LH, Includes: Ref. 12
|
| 2. |
86627283
|
[1] |
SHIELD
|
NH
LH, Includes Ref.13
|
| 3. |
86620252
|
[2] |
SUPPORT ASSY.
|
NH
|
| 4. |
86629916
|
[2] |
PLATE
|
NH
|
| 5. |
86620250
|
[1] |
SUPPORT ASSY.
|
NH
LH
|
| 6. |
86620251
|
[1] |
SUPPORT ASSY.
|
NH
RH
|
| 7. |
86627284
|
[1] |
SHIELD
|
NH
RH, Includes Ref.13
|
| 8. |
86627280
|
[1] |
SHIELD
|
NH
Rear, RH, Includes: Ref. 12
|
| 9. |
844-8020
|
[20] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 10. |
570821
|
[6] |
SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"
|
NH
Flg, USR, 5/16"-18 x 5/8"
|
| 11. |
825-5148
|
[20] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 12. |
86547781
|
[2] |
REFLECTOR,RED
|
NH
Red Retroreflective
|
| 13. |
86631519
|
[2] |
DANGER DECAL
|
NH
English
|
| 13. |
86632802
|
[2] |
DECAL
|
NH
DANGER, French
|
