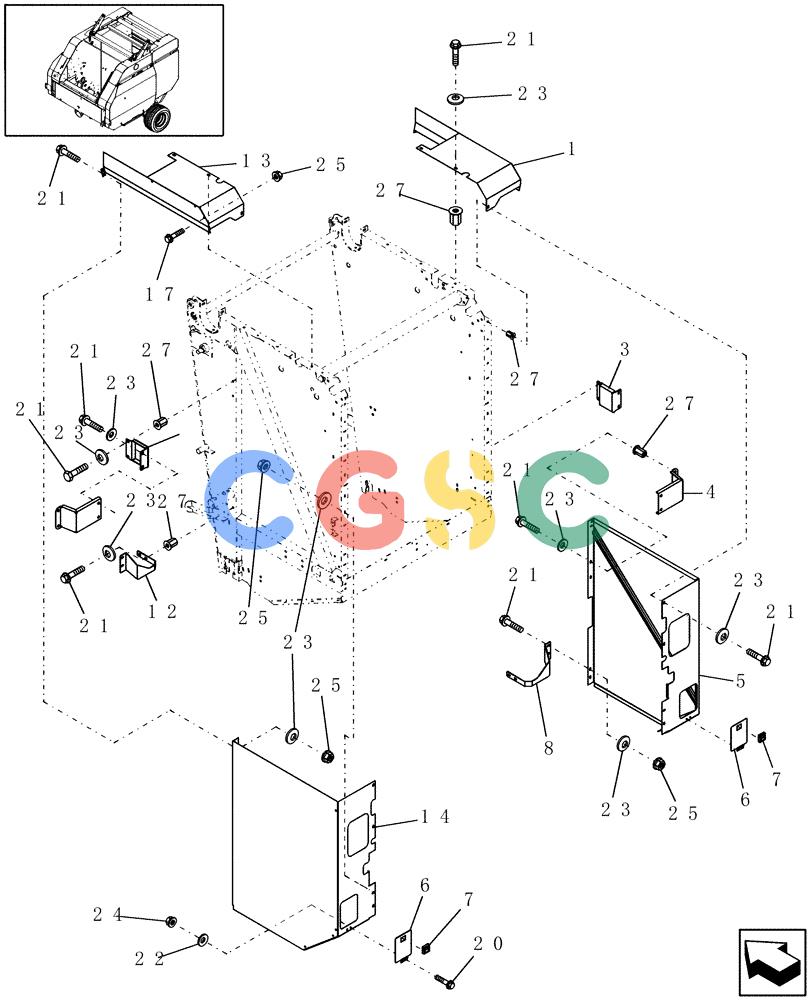

凯斯零件查询(RBX452) - CASE IH ROUND BALER (11/02-7/05) (08.45) - SHIELDS, REAR, NORTH AMERICA Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
273 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86705840
|
[1] |
SHIELD
|
PA
RH, Upper Superseded by part number: 87040794
|
| 1. |
87040794
|
[1] |
SHIELD
|
PA
RH, Upper
|
| 3. |
87022205
|
[2] |
SUPPORT
|
PA
|
| 4. |
86643515
|
[2] |
SUPPORT
|
PA
Superseded by part number: 87022204
|
| 5. |
86705848
|
[1] |
SHIELD
|
PA
|
| 6. |
86643221
|
[2] |
DOOR ASSY.
|
NH
|
| 7. |
632732
|
[2] |
LATCH
|
NH
|
| 8. |
86643486
|
[1] |
SUPPORT
|
PA
RH
|
| 12. |
86643485
|
[1] |
SUPPORT
|
PA
LH
|
| 13. |
86705844
|
[1] |
SHIELD
|
PA
LH, Upper Superseded by part number: 87037391
|
| 13. |
87037391
|
[1] |
SHIELD
|
PA
LH, Upper
|
| 14. |
86705850
|
[1] |
SHIELD
|
PA
LH
|
| 17. |
86511841
|
[4] |
BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8
|
NH
|
| 20. |
844-6020
|
[4] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| 21. |
844-8020
|
[36] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 22. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 23. |
322358
|
[36] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 24. |
825-2406
|
[4] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 25. |
825-2408
|
[12] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 27. |
86610200
|
[24] |
THREADED INSERT,M8 x 1.25
|
NH
M8
|
